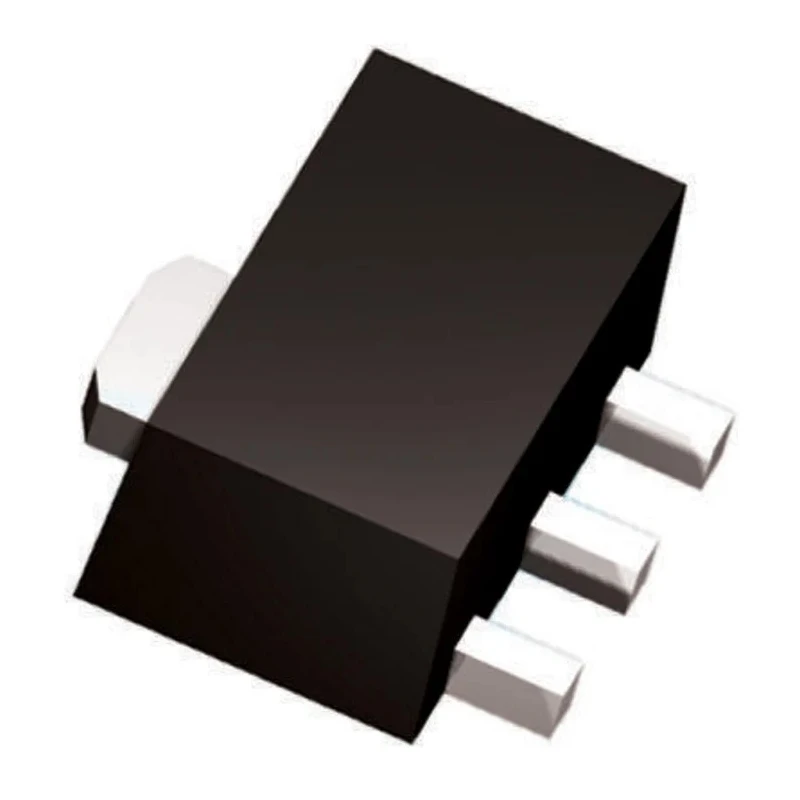

Analog Devices GPS Front End Module Linear Amplifier 16.7 dB 3-Pin Surface Mount SOT-89 ADL5535ARKZ-R7
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Analog Devices |
| Height | 1.6mm |
| Length | 4.6mm |
| Model | ADL5535ARKZ-R7 |
| Technology | GaAs HBT |
| Mount Type | Surface |
| Series | ADL5535 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-89 |
| Minimum Operating Temperature | -40°C |
| Gain | 16.7dB |
| Standards/Approvals | MSL-1 |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Amplifier Type | Linear |
| Noise Figure | 3dB |
| Third Order Intercept OIP3 | 45.5dBm |
| P1dB - Compression Point | 17.7dBm |
Key Features
- Employs GaAs HBT technology for high-performance amplification.
- Operates within supply voltages of 4.5V to 5.5V.
- Features a noise figure of 3 dB ensuring low noise amplification.
- Supports operating temperatures from -40°C to 85°C suitable for harsh environments.
- Compact dimensions of 4.6mm length and 1.6mm height for space-efficient designs.
- Offers a P1dB compression point of 17.7 dBm for reliable linearity.
- Third order intercept point (OIP3) of 45.5 dBm enhances signal integrity.
- Mount type is surface mount with 3-pin configuration.
Product Description
Analog Devices ADL5535ARKZ-R7 GPS Front End Module is a high-performance linear RF amplifier designed specifically for GPS and RF front-end applications. It utilizes advanced GaAs HBT technology to deliver a gain of 16.7 dB with low noise figure of 3 dB, ensuring enhanced signal reception and fidelity for precise positioning systems.
The device is housed in a compact SOT-89 surface-mount package featuring a 3-pin configuration, enabling easy integration into modern electronic designs requiring minimal board space. Its operating voltage ranges from 4.5V to 5.5V, with robust thermal characteristics supporting extended operating temperatures from -40°C to 85°C, making it ideal for automotive, industrial, and commercial GPS receiver applications.
This module achieves a P1dB compression point of 17.7 dBm and a third order intercept (OIP3) of 45.5 dBm, providing strong linearity critical for maintaining signal integrity in complex RF environments. The compact size of 4.6 mm by 1.6 mm allows flexibility in dense circuit layouts and low-profile installations.
It is sourced from the Philippines, and is not specified as meeting automotive standards but is widely used in general electronic systems requiring GPS front-end amplification.
Typical uses include integration into GPS modules, RF communication systems, industrial monitoring, and other precision electronics requiring stable and high-quality RF signal gain. This device supports enhanced RF front-end design, facilitating improved location services and signal processing efficiency.
Employs GaAs HBT technology for high-performance amplification. Operates within supply voltages of 4.5V to 5.5V. Features a noise figure of 3 dB ensuring low noise amplification. Supports operating temperatures from -40°C to 85°C suitable for harsh environments.
Compact dimensions of 4.6mm length and 1.6mm height for space-efficient designs. Offers a P1dB compression point of 17.7 dBm for reliable linearity. Third order intercept point (OIP3) of 45.5 dBm enhances signal integrity.
Mount type is surface mount with 3-pin configuration. Explore more RF Amplifiers and GPS Front End Modules at EnvMart for industrial, laboratory, and commercial electronic applications.
Explore more products in our RF Module category.
