Eccel Technology Ltd RFID Module 13.56 MHz 3.6V with ARM Microcontroller RFID-A1 (00319)

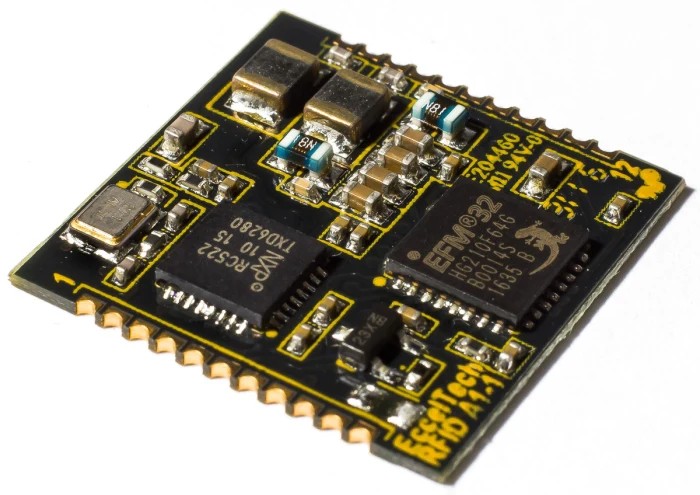

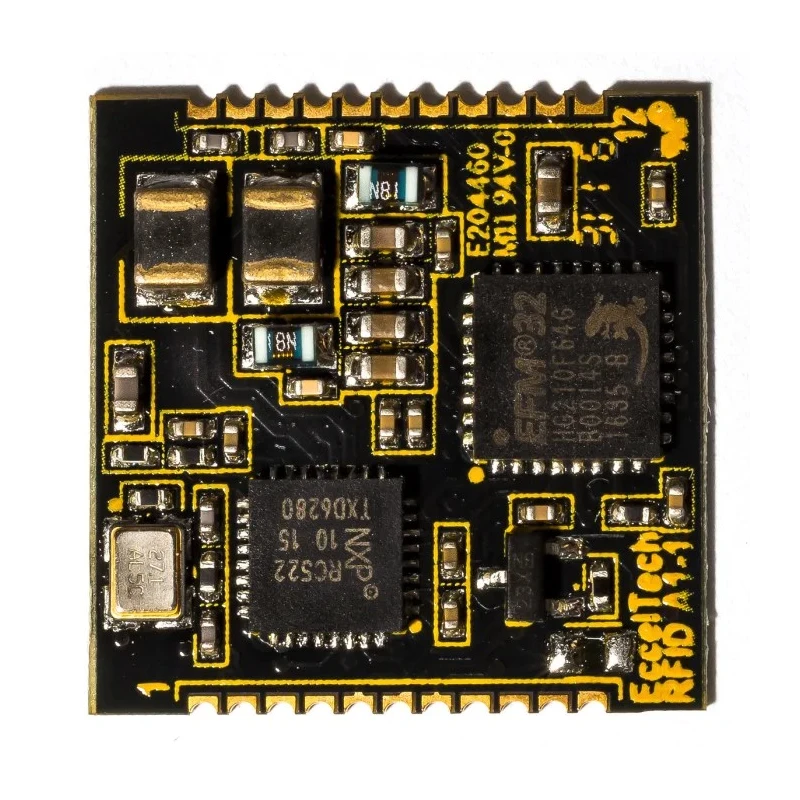

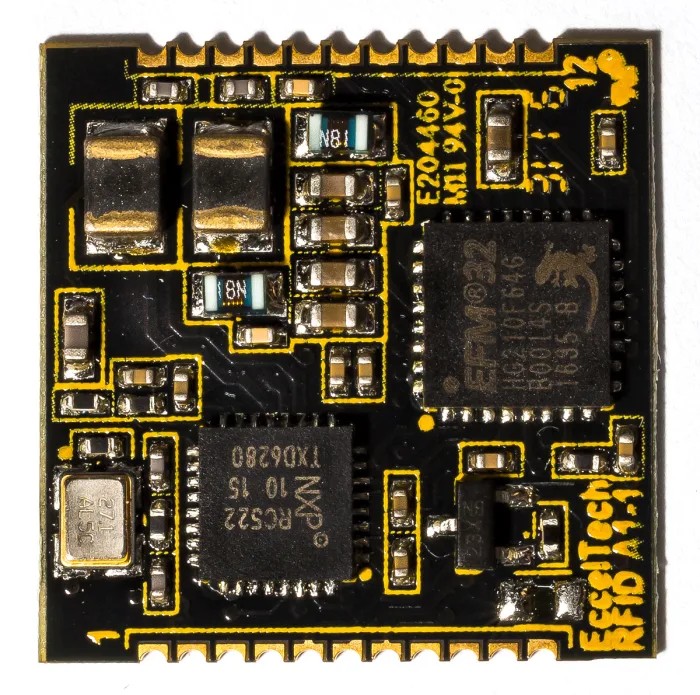

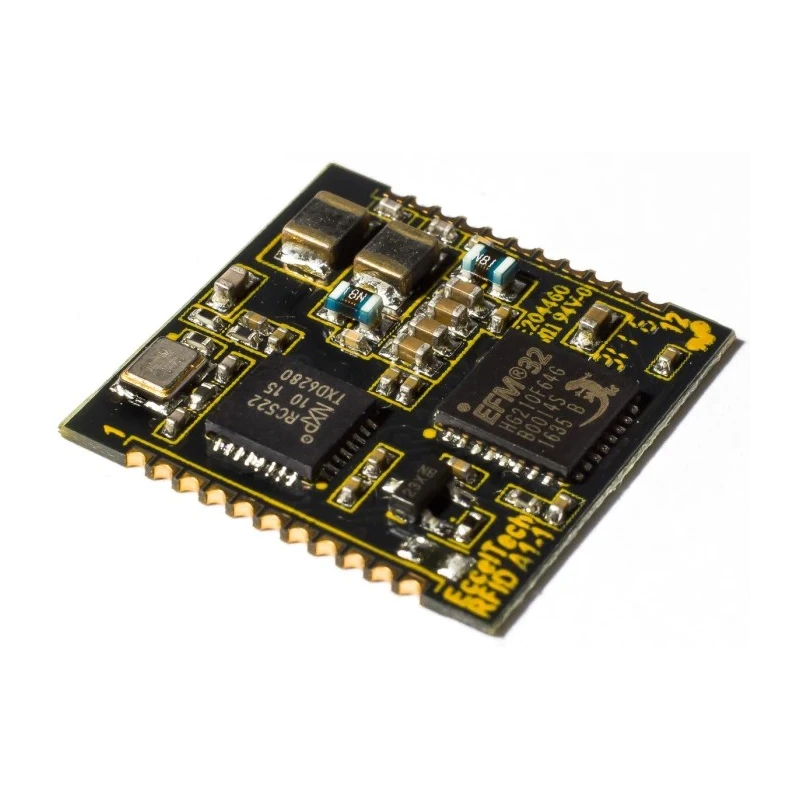

Eccel Technology Ltd RFID-A1 (00319) RFID Module is a high performance 13.56 MHz RFID sub-assembly designed for embedded applications requiring RFID functionality. Featuring a low power ARM microcontroller on board, this module efficiently manages RFID configuration and provides a robust command interface.

The RFID-A1 module supports multiple transponder types including Mifare Classic, Ultralight, and NTAG2, making it versatile for a wide range of uses. It supports communication protocols I2C and SPI with data transfer rates of up to 400kHz and 500kHz respectively, enabling rapid data exchange.

Its compact dimensions of approximately 20.32mm length and 20.06mm width make it suitable for PCB mounting with castellated SMT pads for secure, reliable installation. The module operates on a low supply voltage between 2.5V and 3.6V and withstands an operating temperature range from -25°C to 85°C, suitable for harsh industrial and commercial environments.

Security is enhanced with an AES-128 encryption engine ensuring secure data transmission. The module is RoHS compliant and manufactured in China.

Typical applications include access control systems, monitoring of goods, approval and monitoring of consumables, pre-payment systems, resource management, and connection-less data storage systems in industrial, commercial, and laboratory environments.

Operates at 13.56 MHz frequency supporting common transponders. Low power ARM microcontroller onboard for configuration management. Supports I2C and SPI interfaces with high-speed data communication. Compact surface mount module with castellated SMT pads for PCB mounting.

Wide operating voltage range from 2.5V to 3.6V. Operates reliably between -25°C and 85°C temperatures. Includes AES-128 encryption for secure communications. Ideal for access control, goods monitoring, and pre-payment system applications.

RoHS compliant for environmental safety. Explore more RFID and communication module options in the Electronics & Electricals category on EnvMart.
