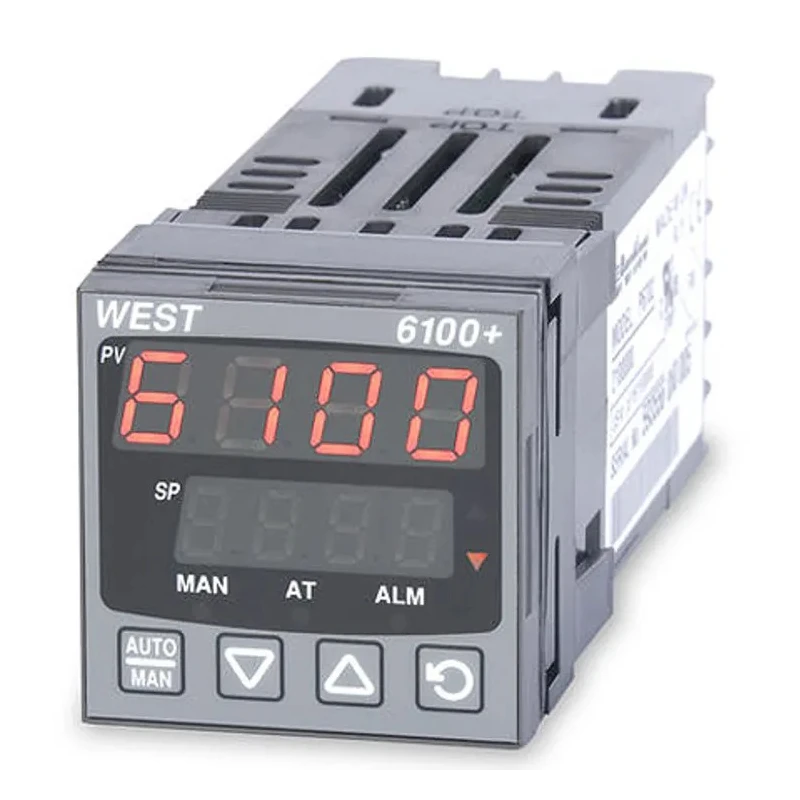

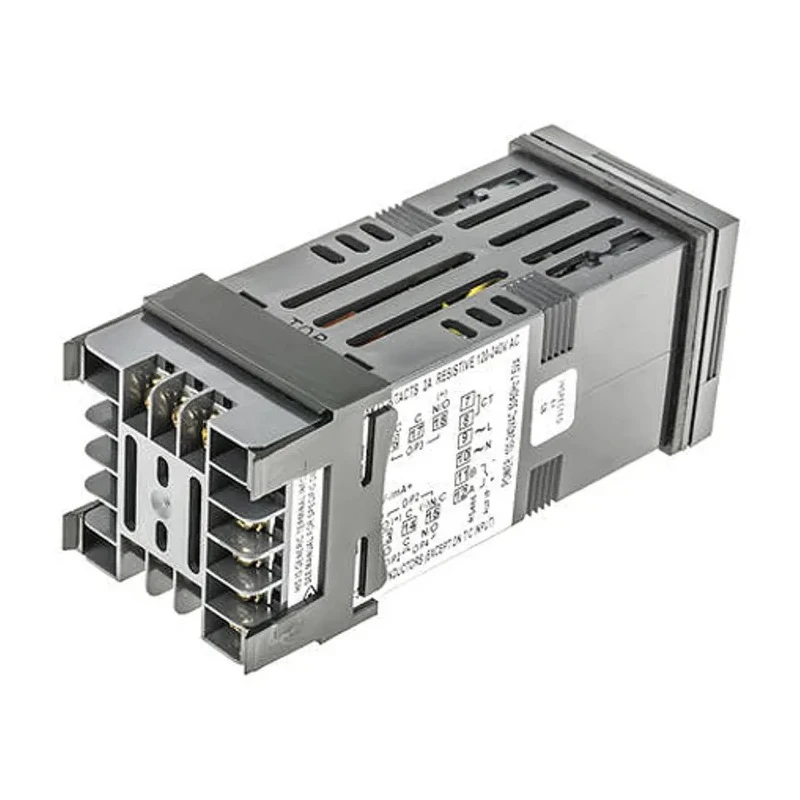

West Instruments P6100 Panel Mount PID Temperature Controller 1 Input, 3 Output Analogue 240V ac On-Off P6100-2-1-1-7-0-0-2

West Instruments P6100-2-1-1-7-0-0-2 Panel Mount PID Temperature Controller is designed for industrial and process control applications requiring accurate temperature regulation. It supports a single thermocouple input and three analogue outputs including two relay outputs and a 4-20mA signal, ensuring versatile control options for complex automation systems.

The controller operates efficiently within a wide temperature range from 0°C to 55°C, accommodating diverse environments. Measuring 48mm in width and 110mm in length, this 1/16 DIN size unit fits standard panel cut-outs, simplifying integration into existing systems.

Notable features include a dual 4-digit LED display with distinctive red and green indicators, adjustable hysteresis for custom control responses, and auto-hardware recognition that eliminates manual jumper settings. Its IP20 and IP66 protection ratings make it suitable for harsh industrial environments while ensuring durability and reliability.

With CE, UL, and ULC approvals, the P6100 series meets international safety and quality standards. The panel mount design supports screw terminal connections, easing installation and maintenance. Additional functionalities include optional 10V SSR drivers, plug-in output modules, and remote setpoint input options.

This PID controller is ideal for use in manufacturing, laboratory instrumentation, HVAC systems, and process control environments requiring stable and precise temperature control. It enhances operational accuracy and reduces operator errors through its user-friendly HMI and software configurability.

Equipped with a thermocouple input for precise temperature measurement. Features dual 4-digit LED display with red upper and green lower display colors. Supports adjustable hysteresis and remote setpoint inputs for flexible control.

Includes plug-in output modules and jumper-less auto-hardware configuration. Designed with IP20 and IP66 ratings for robust panel mounting. Incorporates CE, UL, and ULC certifications ensuring quality and safety. Provides 24W auxiliary power supply and supports maximum supply voltage of 240V AC.

Facilitates improved HMI and fast communication for industrial automation processes. Supplies 10V SSR driver option and analogue remote set point input capability. Compatible with standard panel cut-out dimensions to simplify installation.
