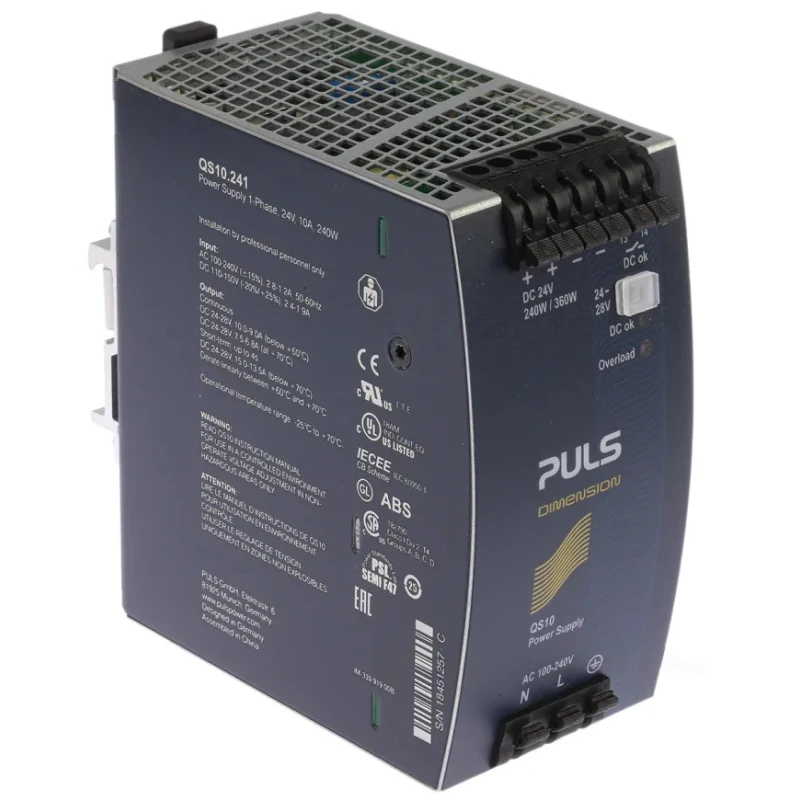

Mean Well DIMENSION Switched Mode DIN Rail Power Supply 240V AC Input 28V DC 10A Output 240W QS10.241

PULS QS10.241 DIN Rail Power Supply is a high-performance, single-phase switched mode power supply designed for industrial control, automation, and communication equipment. It provides a stable DC output voltage adjustable between 24VDC and 28VDC with a maximum output current of 10A, delivering a total power of 240W. The unit accepts a wide input voltage range from 100VAC to 240VAC, making it compatible with various AC power systems worldwide.

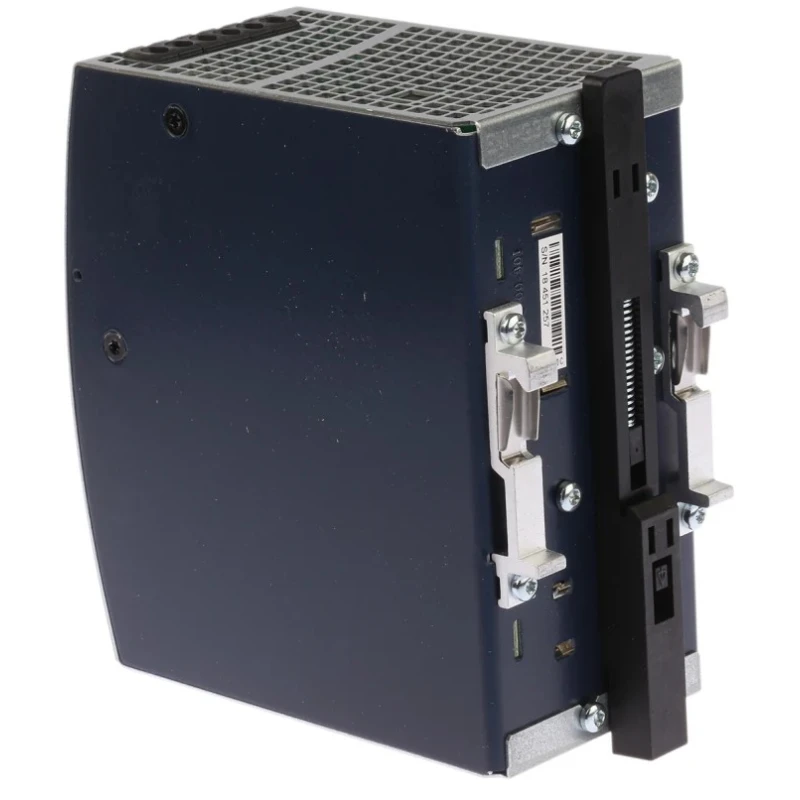

Featuring a compact and lightweight design, this power supply mounts easily on standard DIN rails, with dimensions of 124mm height, 60mm width, and 117mm depth. The device operates reliably within a wide temperature range from -25°C to 70°C, suitable for challenging industrial environments.

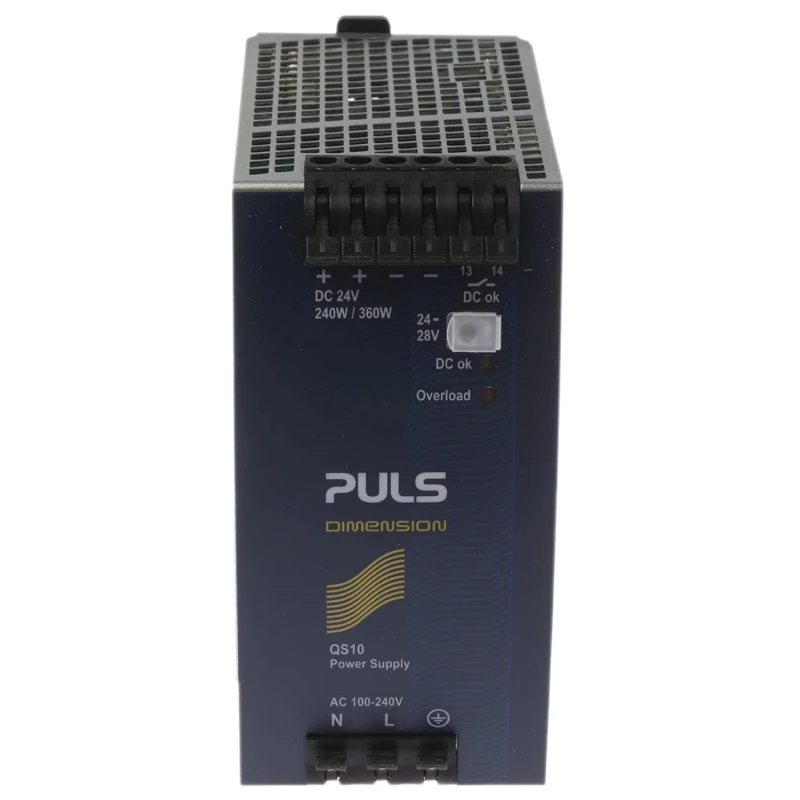

Efficiency of up to 93.5% ensures minimal energy waste and heat, aided by active power factor correction (PFC) which improves power quality and reduces electrical interference. The power supply incorporates diagnostic feedback with a green DC-OK LED, a relay-operated dry DC-OK contact, and a red LED to indicate overload conditions, facilitating easy system monitoring and maintenance.

Electrical connectivity is secured with quick-connect spring-clamp terminals, offering reliable and safe wiring. Ripple and noise levels are kept low at 50mVpp, protecting sensitive instrumentation and automation components from power disturbances. The unit also provides 50% power reserves available for up to 4 seconds to support surges and transient loads.

The enclosure has an IP20 rating, offering protection against solid objects while requiring installation in dry, indoor locations. This power supply is RoHS compliant and built with uncompromised quality, reliability, and performance designed for industrial and instrumentation applications.

Key industrial uses include automated manufacturing, communication systems, instrumentation, and control panels where consistent power quality and durability are essential. Choose PULS DIMENSION QS10.241 for a dependable 240W DIN rail mounted power supply engineered for demanding industrial environments.

Single-phase, switched mode DIN rail power supply. Wide input voltage range of 100VAC to 240VAC. Adjustable output voltage from 24VDC to 28VDC at 10A output current. High efficiency up to 93.5% and low ripple noise. Diagnostics via green DC-OK LED, dry contact, and overload LED.

Compact size with easy spring-clamp terminal connections. Operating temperature from -25°C to 70°C for tough conditions. IP20 enclosure rating for indoor industrial use. Designed for automation, control, and communication equipment.
