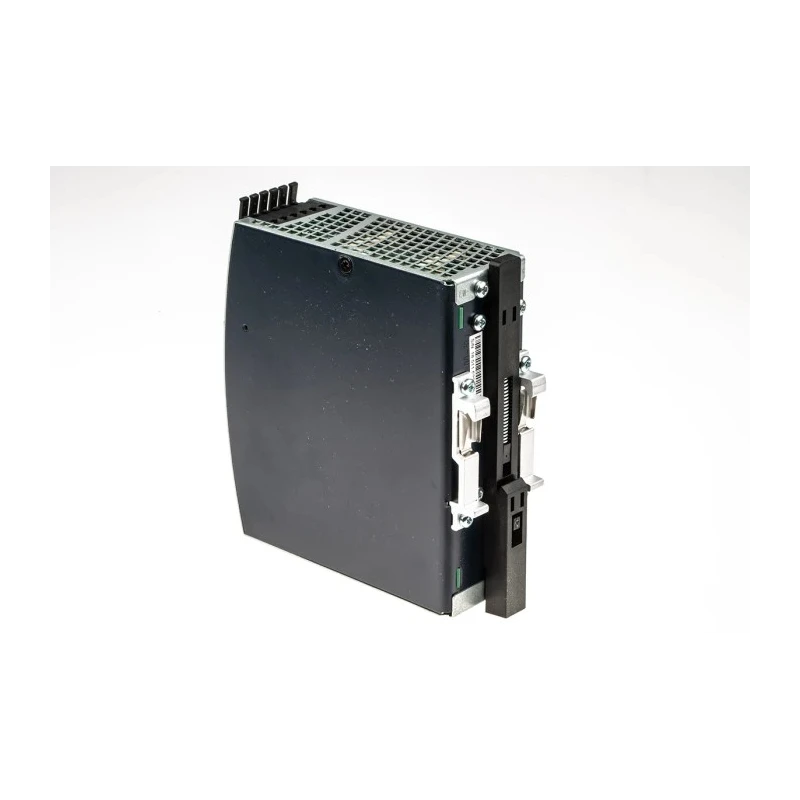

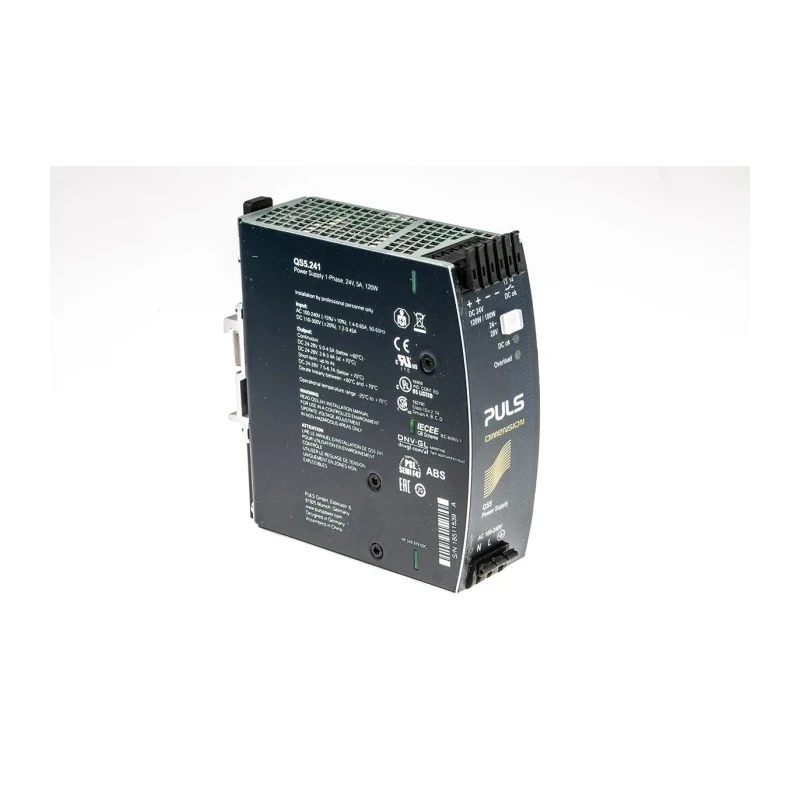

TRACOPOWER DIMENSION Switched Mode DIN Rail Power Supply 28V DC, 5A Output, 120W Power QS5.241
Specifications
| Country of Origin | China |
|---|---|
| Brand | TRACOPOWER |
| Power | 120W |
| Height | 124mm |
| Model | QS5.241 |
| Depth | 117mm |
| IP Rating | IP20 |
| Width | 40mm |
| Series | DIMENSION |
| Output Current | 5A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 240V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 28V dc |
| Minimum Input Voltage | 100V ac |
Key Features
- Compact and lightweight design for easy installation.
- Adjustable output voltage between 24V DC and 28V DC.
- Input voltage range from 100VAC to 240VAC single-phase.
- Equipped with quick-connect spring-clamp terminals for secure wiring.
- High efficiency up to 92.7%, minimizing energy loss.
- Low ripple factor with noise at 50mV peak-to-peak.

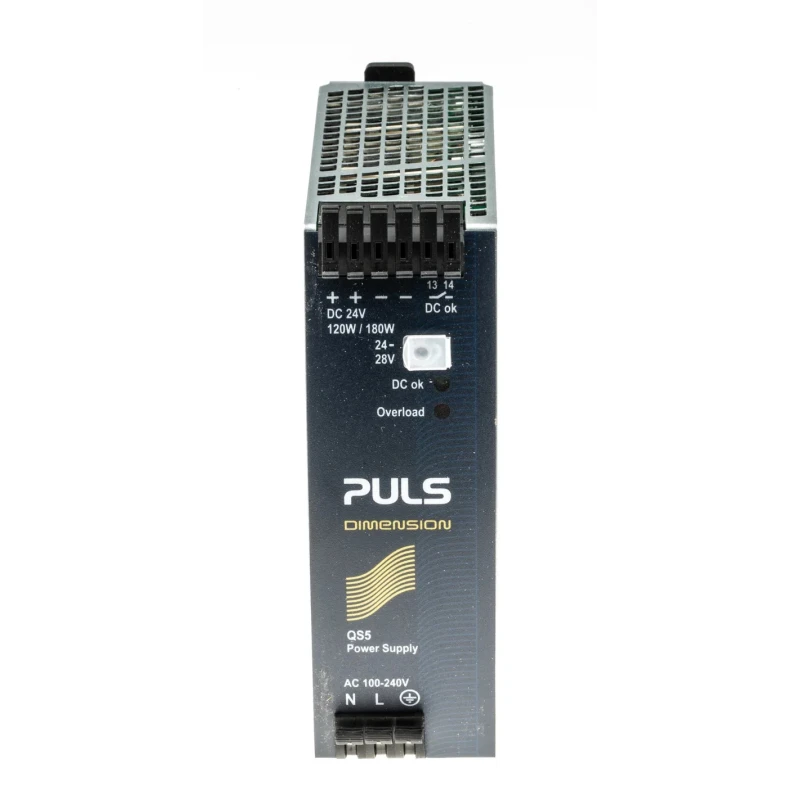

- Built-in diagnostic indicators including green DC-OK LED and red overload LED.
- Operating temperature range from -25°C to 70°C for diverse environments.
Product Description
PULS QS5.241 is a high-performance switched mode DIN rail power supply from the DIMENSION series, designed for reliable industrial applications. It delivers a regulated output voltage of 28V DC at 5A current with a power rating of 120W, suitable for controlling and automating various electrical devices.
Featuring a wide AC input voltage range of 100VAC to 240VAC single-phase, this power supply ensures stable operation in fluctuating power environments. The device provides diagnostic ease through a dry DC-OK contact, as well as visual indicators including a green DC-OK LED and a red overload LED.
The product is designed for harsh industrial environments, offering a compact 40mm width, 124mm height, and 117mm depth with an IP20 protection rating. Its construction supports operation in temperatures ranging from -25°C up to 70°C, making it ideal for indoor industrial control panels, automation systems, telecommunications, and instrumentation equipment.
This model benefits from an efficiency rating reaching up to 92.7%, active power factor correction (PFC), and minimal inrush current, reducing energy waste and enhancing system reliability. Its low ripple noise (50mVpp) ensures stable power delivery for sensitive electronic components.
Compact and lightweight design for easy installation. Adjustable output voltage between 24V DC and 28V DC. Wide input voltage range from 100VAC to 240VAC single-phase. Diagnostic indicators include dry contact and LEDs. Efficient operation with up to 92.7% efficiency.
Low ripple factor with noise at 50mV peak-to-peak. Built-in active power factor correction (PFC). Operating temperature range -25°C to 70°C. IP20 rated enclosure for solid protection. Suitable for industrial control and automation applications.
This DIN rail power supply is manufactured in China and is well-suited for industrial machines, automation, communication equipment, and various control systems, providing dependable, clean DC power. Explore more power supply options and components in the Electronics & Electricals category at EnvMart.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a regulated output voltage of 28V DC at a current of 5A, with a total power rating of 120W.
The input voltage range is from 100VAC to 240VAC, suitable for single-phase applications.
The dimensions are 40mm in width, 124mm in height, and 117mm in depth.
It has an efficiency rating of up to 92.7%, which helps minimize energy loss during operation.
It features an IP20 protection rating, which provides solid protection against solid objects larger than 12mm.
The ripple noise is low, rated at 50mV peak-to-peak, ensuring stable power delivery.
This power supply has one output.
It is a switched mode power supply designed for reliable industrial applications.
It is suitable for industrial control panels, automation systems, telecommunications, and instrumentation equipment.
This model is manufactured in China.
