JST EH Series Right Angle Through Hole PCB Header 6 Contacts 2.5 mm Pitch 1 Row Shrouded S6B-EH (LF) (SN)

Free Delivery in India | Lowest Global Shipping Charges

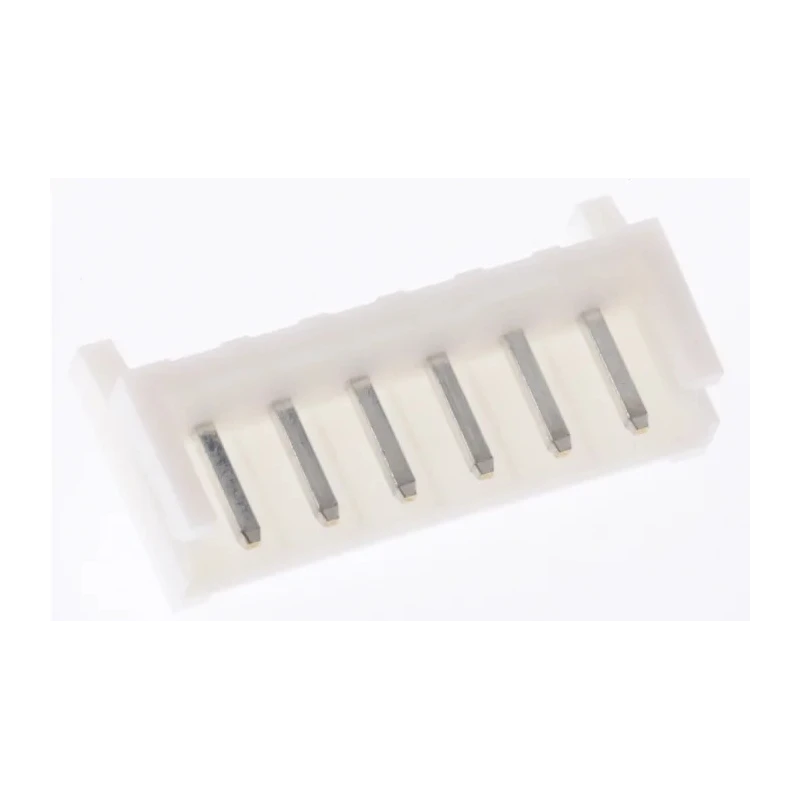

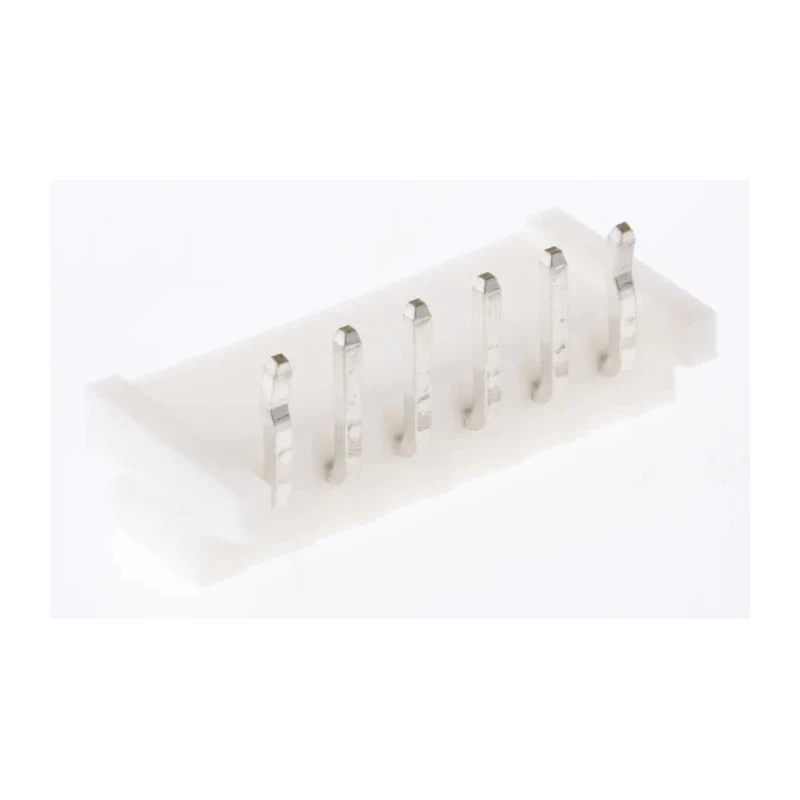

JST EH Series Right Angle Through Hole PCB Header 6 Contacts 2.5 mm Pitch 1 Row Shrouded S6B-EH (LF) (SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	S6B-EH (LF) (SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	EH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3.2mm

Key Features

Rated for 3A current and 250V voltage for standard PCB applications.
Constructed with polyamide housing providing durability and electrical insulation.
Right angle orientation enables space-efficient PCB layout.
Male contact gender with brass contacts plated in tin for corrosion resistance.
Through hole mount type ensures secure mechanical and electrical connection.
Shrouded design provides integrated keying to prevent incorrect mating.
Operates reliably between -25°C to 85°C for diverse environments.
Solder termination type compatible with standard PCB assembly processes.

Product Description

JST S6B-EH (LF) (SN) is a right angle through hole PCB header designed with 6 contacts arranged in a single row and a 2.5 mm pitch. The connector features a shrouded polyamide housing, enhancing durability and preventing misalignment during mating.

This PCB header supports wire-to-board connector systems with a current rating of 3A and voltage rating of 250V, suitable for various electronic components and assemblies in industrial and commercial electronics.

The through hole mount type provides secure mechanical fixation and electrical continuity, while the brass contacts with tin plating ensure good conductivity and protection against corrosion. The male contact gender and a mating pin length of 3.2 mm facilitate reliable connection with corresponding sockets.

Operating temperature range from -25°C to 85°C makes this connector adaptable to diverse environmental conditions, including moderate industrial applications. Its integral keying in the shrouded design ensures correct polarization, preventing improper connections and enhancing reliability in PCB assemblies.

Rated for 3A current and 250V voltage for standard PCB applications. Constructed with polyamide housing providing durability and electrical insulation. Right angle orientation enables space-efficient PCB layout. Male contact gender with brass contacts plated in tin for corrosion resistance.

Through hole mount type ensures secure mechanical and electrical connection. Shrouded design provides integrated keying to prevent incorrect mating. Operates reliably between -25°C to 85°C for diverse environments. Solder termination type compatible with standard PCB assembly processes.

Mating pin length of 3.2 mm for secure engagement with sockets.

This JST EH series PCB header is ideal for applications in electronics manufacturing, industrial control systems, instrumentation, and other PCB connector needs. Its reliable construction supports long-term operational stability in wire-to-board connections.
