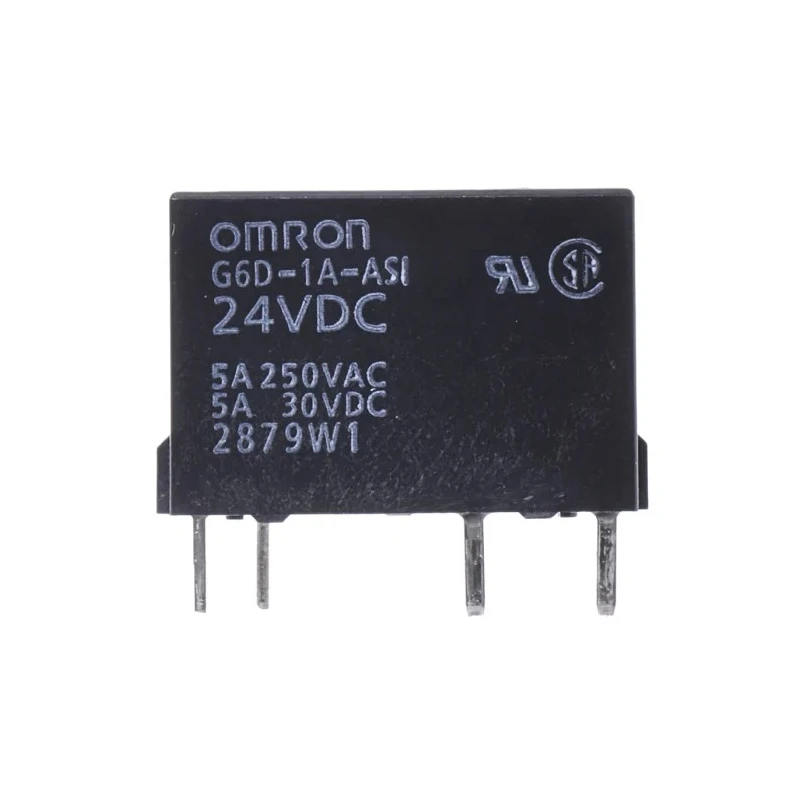

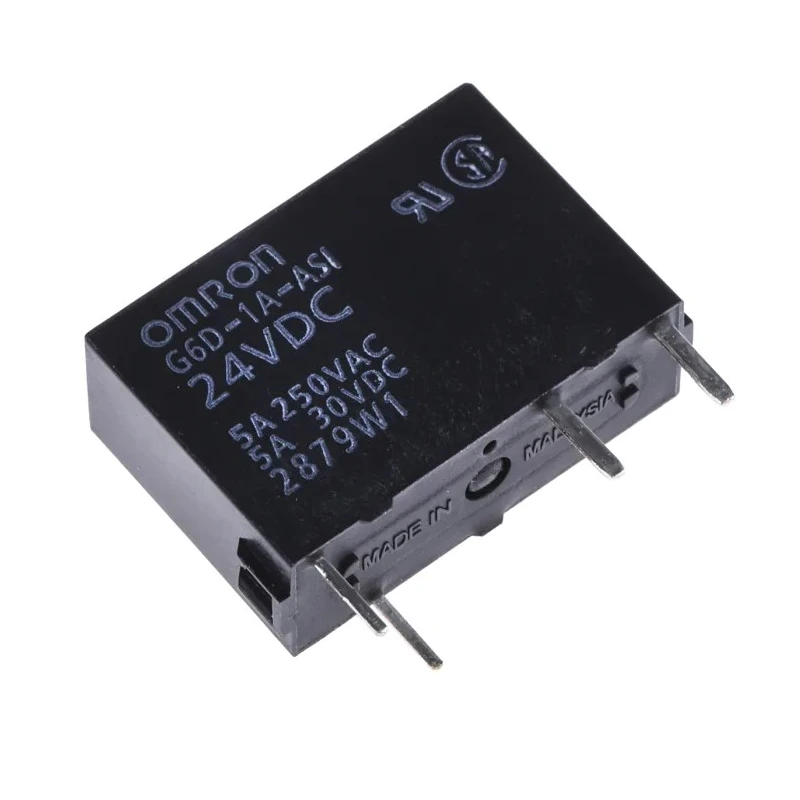

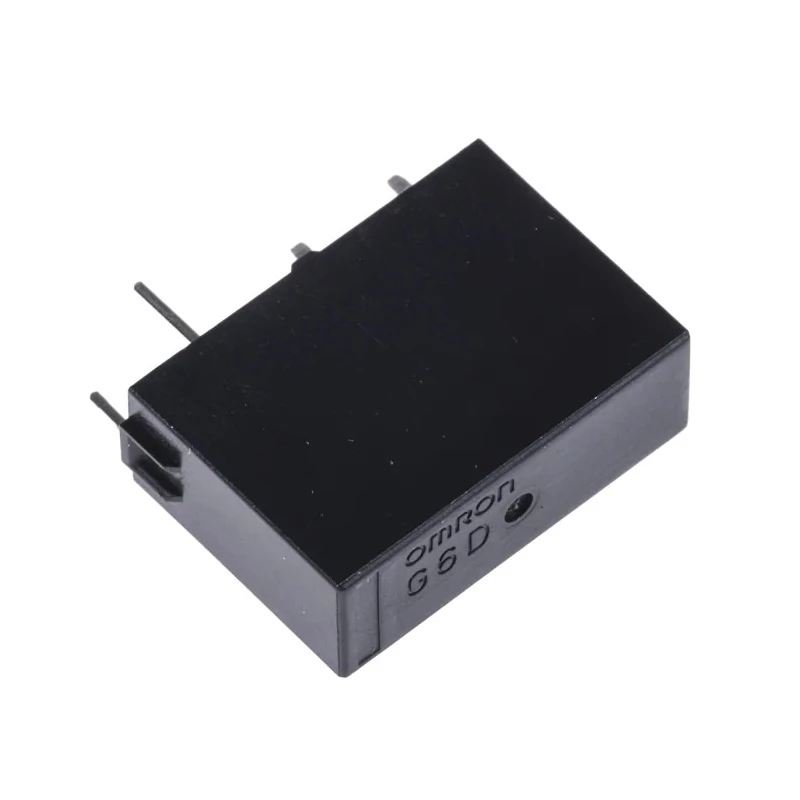

Omron DIN Rail Power Relay 24V DC Coil 5A Switching Current SPST G6D-1A-ASI DC24
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Omron |
| Height | 12.5mm |
| Length | 18.5mm |
| Model | G6D-1A-ASI DC24 |
| Width | 14mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | G6D |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 5A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 2.9kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
| SPNO ultra-slim PCB relay,5A 24Vdc coilBrand | Omron |
| Omron PCB Mount Non-Latching Relay, 24V dc Coil, 5A Switching Current, SPSTBrand | Omron |
Key Features
- Designed for DIN Rail mounting with through-hole terminal type.

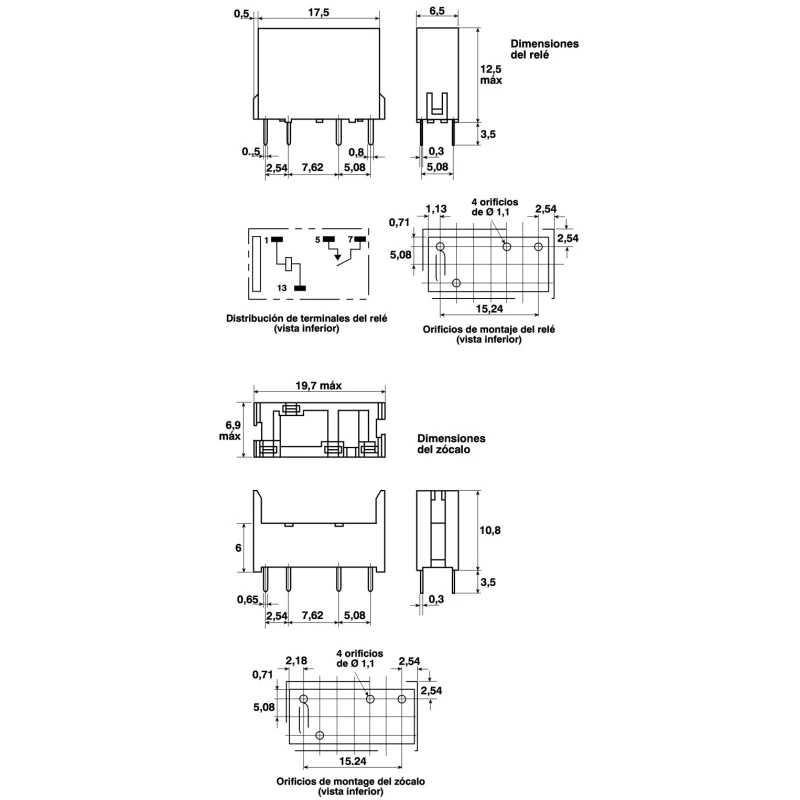

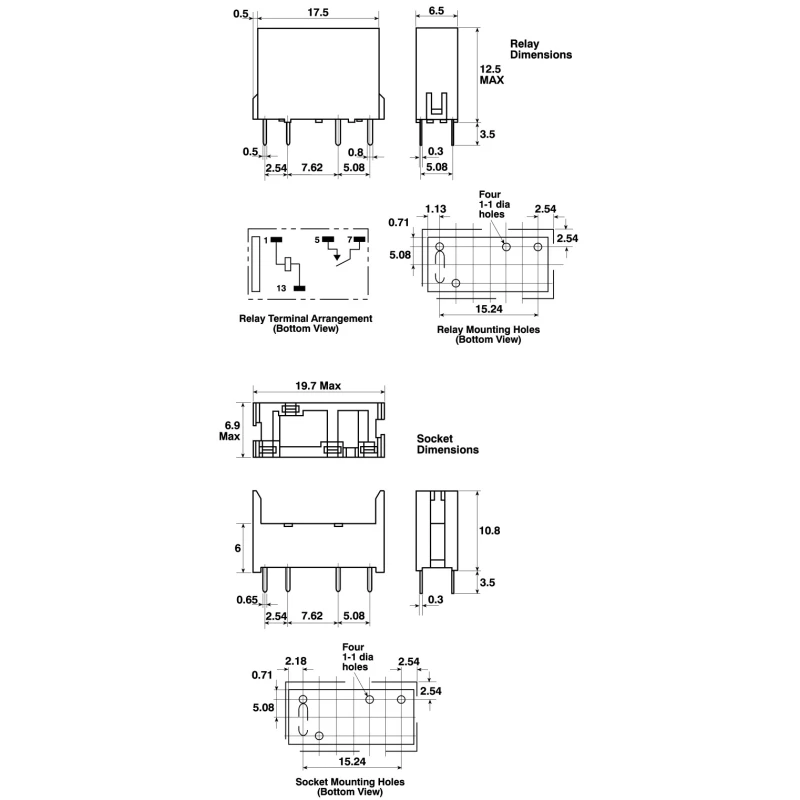

- Compact size with dimensions 18.5mm length, 14mm width, and 12.5mm height.
- High quality silver alloy contacts with 100mΩ contact resistance.
- Operates effectively within temperature range -25°C to 70°C.
- Rated switching power of 1.25 kVA and switching DC voltage up to 30V.
- Coil resistance is 2.9 kΩ with coil power consumption of 200mW.
- Fully sealed construction ensuring durability and surge withstand capability at 6kV.
- Mechanical life expectancy of 20 million operations (2 x 10^7).
Product Description
Omron G6D-1A-ASI DC24 DIN Rail Power Relay is a robust and compact SPST power relay optimized for industrial and automation applications. Featuring a 24V DC coil voltage and a 5A switching current, this relay offers reliable switching performance in a fully sealed construction.
The relay is designed for easy DIN Rail mounting and uses through-hole terminals for secure installation. Its compact dimensions of 18.5mm length, 14mm width, and 12.5mm height make it suitable for space-constrained panel designs.
Equipped with silver alloy contacts, the relay delivers low contact resistance (100 mΩ) and can handle switching power up to 1.25 kVA. It supports switching voltages up to 250V AC and 30V DC, enabling versatility across power control scenarios.
The relay's coil resistance is rated at 2.9 kΩ, consuming only 200mW of coil power, ensuring energy efficiency. It operates reliably across a wide temperature range from -25°C to 70°C. Additionally, the relay provides excellent surge withstand capability of 6kV and an extended mechanical life of 20 million cycles.
Certified compliant to RoHS directives and manufactured in Malaysia, the Omron G6D-1A-ASI DC24 is suitable for applications such as programmable controllers, temperature controllers, and other power relay uses within industrial, electrical automation, and control environments.
Designed for DIN Rail mounting with through-hole terminal type. Compact size with dimensions 18.5mm length, 14mm width, and 12.5mm height. High quality silver alloy contacts with 100mΩ contact resistance. Operates effectively within temperature range -25°C to 70°C.
Rated switching power of 1.25 kVA and switching DC voltage up to 30V. Coil resistance is 2.9 kΩ with coil power consumption of 200mW. Fully sealed construction ensuring durability and surge withstand capability at 6kV. Mechanical life expectancy of 20 million operations (2 x 10^7).
RoHS compliant and manufactured in Malaysia. Suitable for power relay applications in automation and electrical control systems. Explore more industrial automation and electrical relay solutions at EnvMart to enhance your project’s reliability and performance.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 5A.
It operates with a coil voltage of 24V DC.
The dimensions are 18.5mm in length, 14mm in width, and 12.5mm in height.
It supports a maximum switching voltage of 250V AC and 30V DC.
This relay uses through-hole terminals for secure installation.
The contact resistance is rated at 100mΩ.
It operates effectively within a temperature range of -25°C to 70°C.
The coil resistance is 2.9 kΩ.
The rated switching power is 1.25 kVA.
The mechanical life expectancy is 20 million operations.
Yes, it is certified compliant with RoHS directives.
This relay is manufactured in Malaysia.
