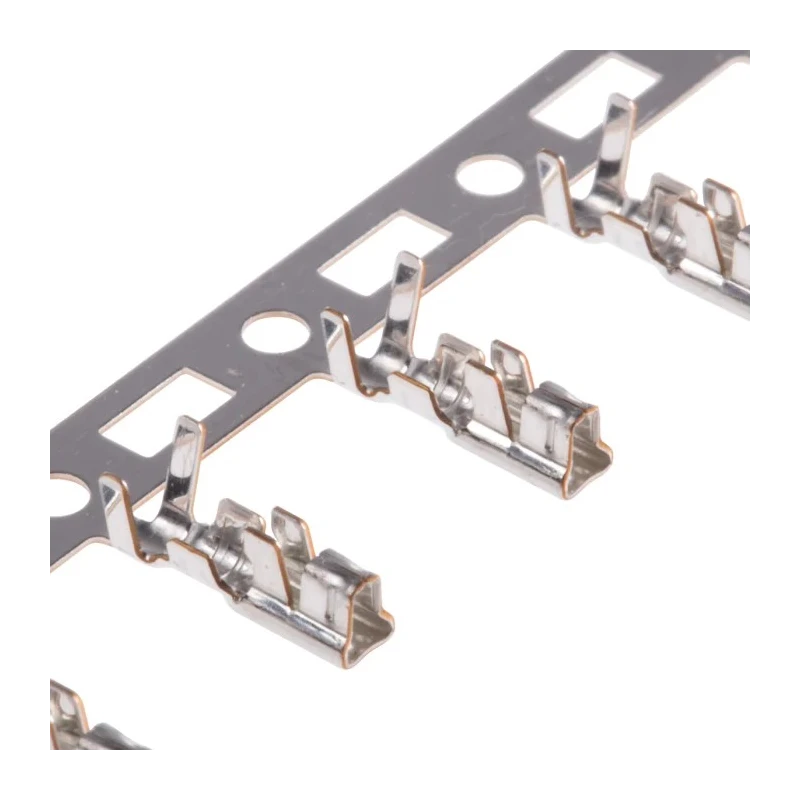

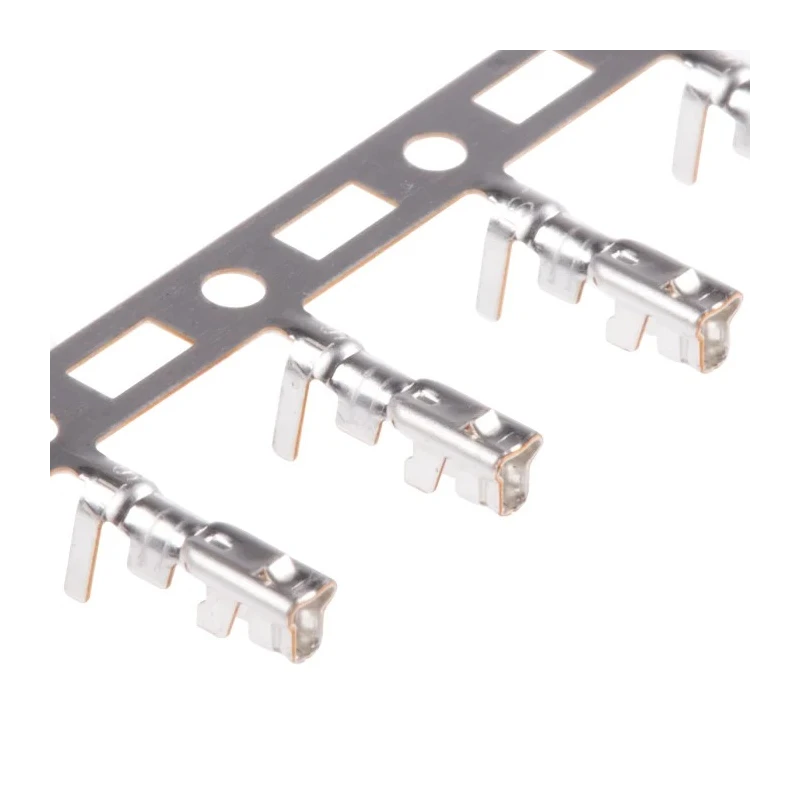

JST XA, XAD, XM, XMA Series Female Crimp Terminal, 3A Current, 28 AWG Min, 22 AWG Max, Phosphor Bronze Tin SXA-001T-P0.6

Free Delivery in India | Lowest Global Shipping Charges

JST XA, XAD, XM, XMA Series Female Crimp Terminal, 3A Current, 28 AWG Min, 22 AWG Max, Phosphor Bronze Tin SXA-001T-P0.6



Category Crimp Contacts Brand JST Condition New

Specifications

Country of Origin	China
Brand	JST
Current	3A
Model	SXA-001T-P0.6
Gender	Female
Contact Material	Phosphor Bronze
Series	XA, XAD, XM, XMA
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
For Use With	XA, XM and XMA Connector Housings, XAD
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.33mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	20mΩ

Key Features

Constructed from durable phosphor bronze with tin plating for reliable connections.
Suitable for crimp termination with a temperature range from -25°C to 85°C.
Maximum contact resistance of 20 milliohms ensures efficient conductivity.
Compatible with JST XA series wire-to-wire crimp housings.
No certifications or approvals indicated, designed for general industrial use.
Compact design enabling efficient PCB and wire housing connections.
Ideal for electronic component assemblies requiring secure female crimp terminals.

Product Description

JST SXA-001T-P0.6 Female Crimp Terminal is a robust connector component made from phosphor bronze with a tin plating, designed specifically for use with JST XA, XAD, XM, and XMA series connector housings. It supports a continuous current of 3 amperes, accommodating wire sizes ranging from 28 AWG (0.08 mm²) minimum to 22 AWG (0.33 mm²) maximum, making it versatile for various electronic wiring applications.

The terminal features a crimp termination type that assures solid mechanical and electrical connections. Its operating temperature spans from -25°C up to 85°C, suitable for varied environmental conditions encountered in industrial, commercial, and manufacturing settings. The maximum contact resistance is limited to 20 milliohms, ensuring low resistance and stable connectivity in circuit applications.

Manufactured in China, this female crimp terminal is crafted with attention to durability and electrical performance, featuring tin-plated phosphor bronze contacts to resist corrosion and maintain long-term reliability. Its design suits wire-to-wire crimp housings in PCB connectors and wire housing assemblies.

This product is widely applicable in electronic devices, industrial equipment, automation systems, and electrical assemblies requiring precise and reliable terminal connections. Constructed from phosphor bronze for durability and reliable performance.

Tinned contact plating prevents oxidation and enhances conductivity. Supports wire sizes from 28 AWG to 22 AWG for flexible connectivity. Rated for a continuous current of 3 amps, suitable for various electronic circuits.

Operating temperature range from -25°C to 85°C for diverse environments. Crimp termination type ensures secure mechanical and electrical connections. Compact female crimp terminal compatible with JST XA series connector housings.

Explore the comprehensive range of JST electronics components and connectors on EnvMart for your industrial, laboratory, or electronic assembly needs.

Explore more products in our Crimp Contacts category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum current rating for this female crimp terminal is 3 amperes.

This terminal accommodates wire sizes ranging from 28 AWG (0.08 mm²) minimum to 22 AWG (0.33 mm²) maximum.

The operating temperature range for this model is from -25°C to 85°C.

It uses a crimp termination type, which ensures secure mechanical and electrical connections.

This terminal is compatible with JST XA, XAD, XM, and XMA series connector housings.

The maximum contact resistance for this terminal is limited to 20 milliohms.

The contact is made from phosphor bronze with a tin plating to enhance conductivity and resist corrosion.

This terminal is manufactured in China.

It is suitable for various electronic devices, industrial equipment, automation systems, and electrical assemblies requiring reliable terminal connections.
