JST VL Series Female Crimp Terminal 20 AWG Min Crimp, 14 AWG Max SVF-61T-P2.0

Free Delivery in India | Lowest Global Shipping Charges

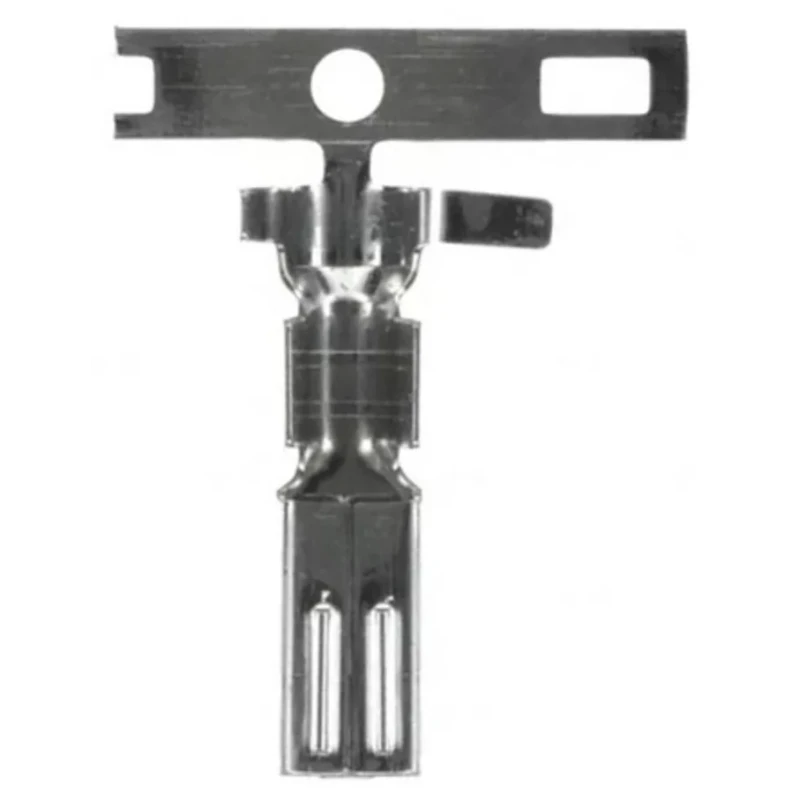

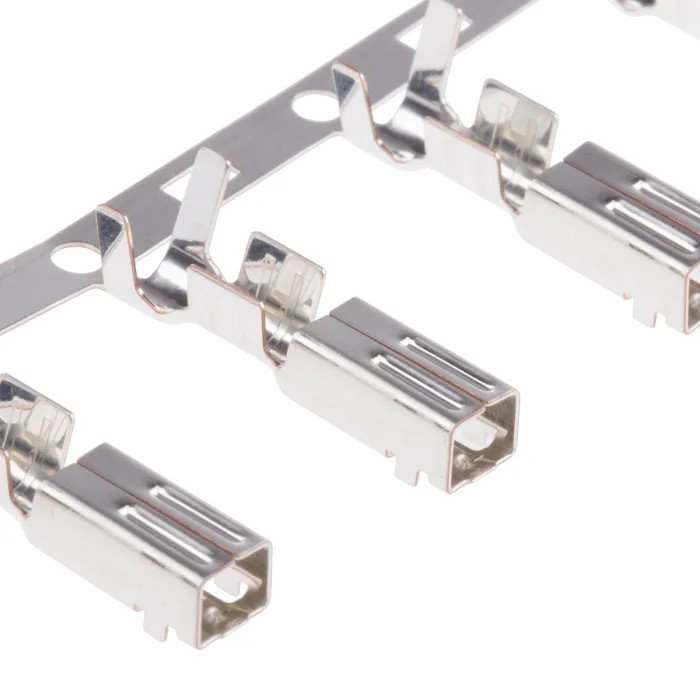

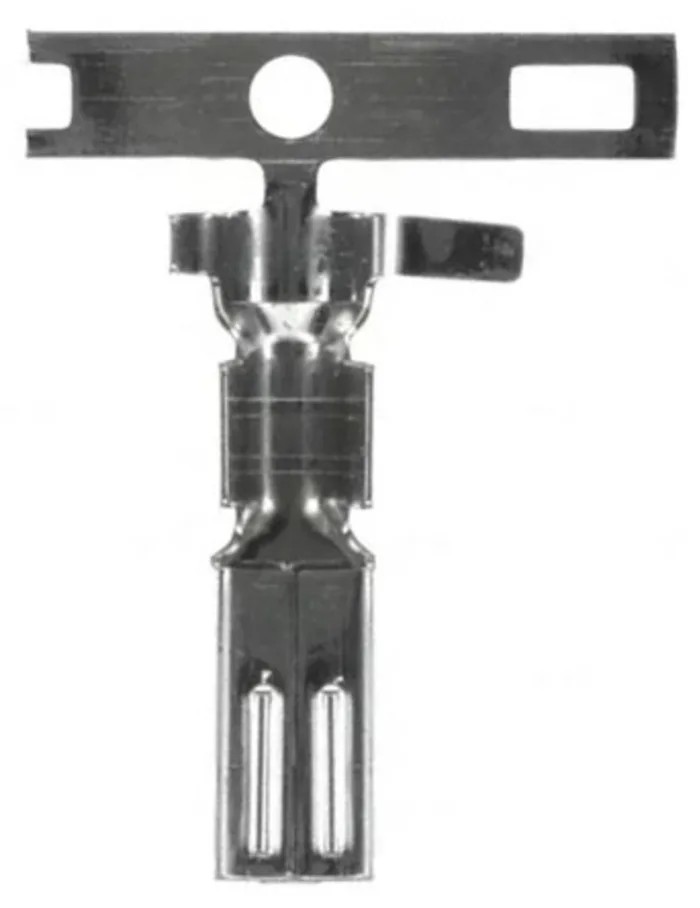

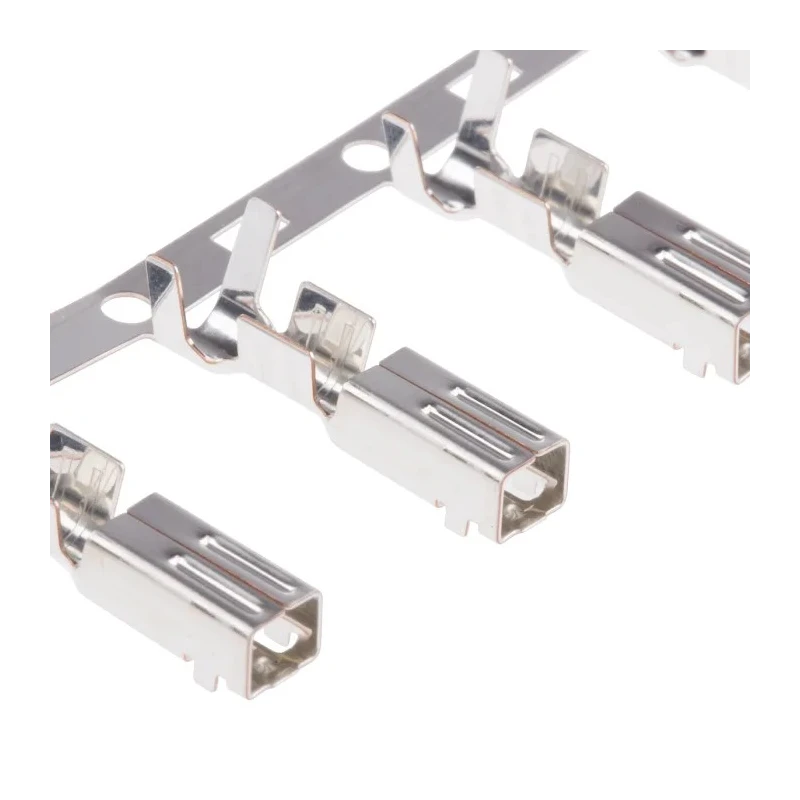

JST VL Series Female Crimp Terminal 20 AWG Min Crimp, 14 AWG Max SVF-61T-P2.0



Category Crimp Contacts Brand JST Condition New

Specifications

Country of Origin	Malaysia
Brand	JST
Current	15A
Model	SVF-61T-P2.0
Gender	Female
Contact Material	Phosphor Bronze
Series	VL
Termination Type	Crimp
Maximum Operating Temperature	90°C
Minimum Operating Temperature	-25°C
For Use With	VL Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	2mm²
Minimum Wire Size AWG	20AWG
Maximum Wire Size AWG	14AWG
Maximum Contact Resistance	10mΩ

Key Features

Constructed from phosphor bronze material for durability and conductivity.
Tin plating ensures corrosion resistance and reliable electrical contact.
Supports a maximum current of 15 amperes for efficient power transfer.
Operates reliably between temperatures of -25°C and 90°C.
Designed for use with VL connector housing for secure wire termination.
Offers low maximum contact resistance of 10 milliohms for performance consistency.
Termination type is crimp for ease of assembly in cable harnesses.

Product Description

JST SVF-61T-P2.0 Female Crimp Terminal is a precision-engineered crimp contact intended for use with the VL Series wire-to-wire connector housings. It accommodates wire sizes ranging from 20 AWG minimum to 14 AWG maximum, making it suitable for various wiring applications in industrial and electronic assemblies.

Manufactured from phosphor bronze, the contact provides excellent mechanical strength and electrical conductivity. The tin plating enhances corrosion resistance, ensuring durability in challenging environmental conditions.

This crimp terminal is rated for a maximum continuous current of 15 amperes, enabling efficient power transmission in moderate load systems. Its contact resistance is limited to a maximum of 10 milliohms, guaranteeing low signal loss and consistent performance.

Operating temperature range spans from -25 degrees Celsius up to 90 degrees Celsius, supporting use in diverse environments including industrial automation, electronic devices, and manufacturing equipment.

The crimp termination type facilitates fast, secure assembly, ideal for high-volume cable harness production. The terminal is specifically designed to fit VL connector housings, delivering precise mating and reliable connections.

Phosphor bronze material with tin plating for strength and corrosion protection. Supports 15A current capacity for power and signal applications. Wide operating temperature range from -25°C to 90°C. Low contact resistance ensures stable electrical performance.

Compatible with VL series connector housings for ease of integration.

This component is widely used in electronics manufacturing, industrial automation, automotive wiring harnesses, and commercial electrical systems. It enables durable, repeatable connections critical to product reliability and safety.
