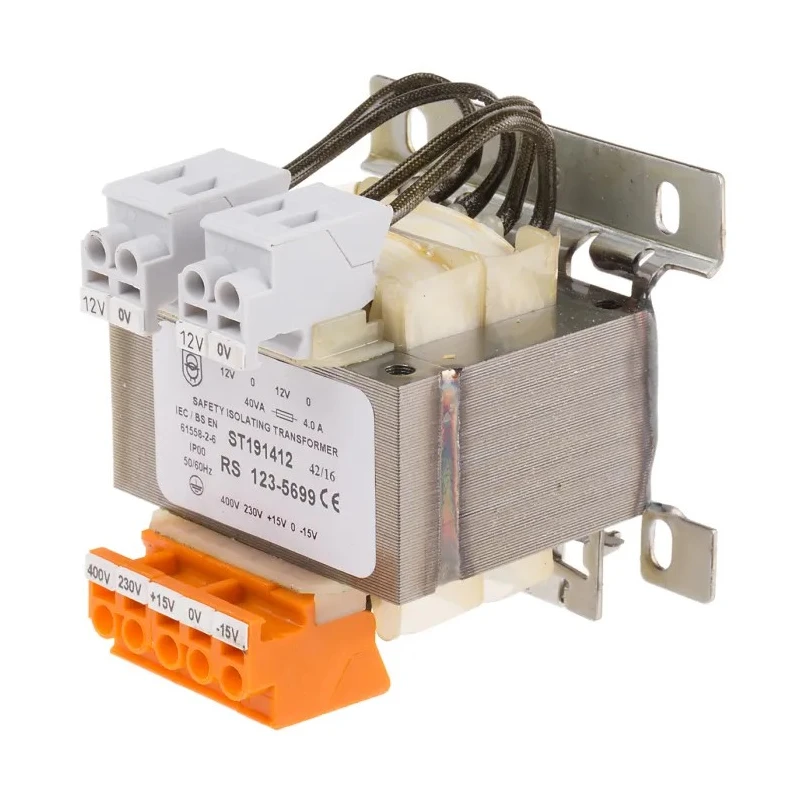

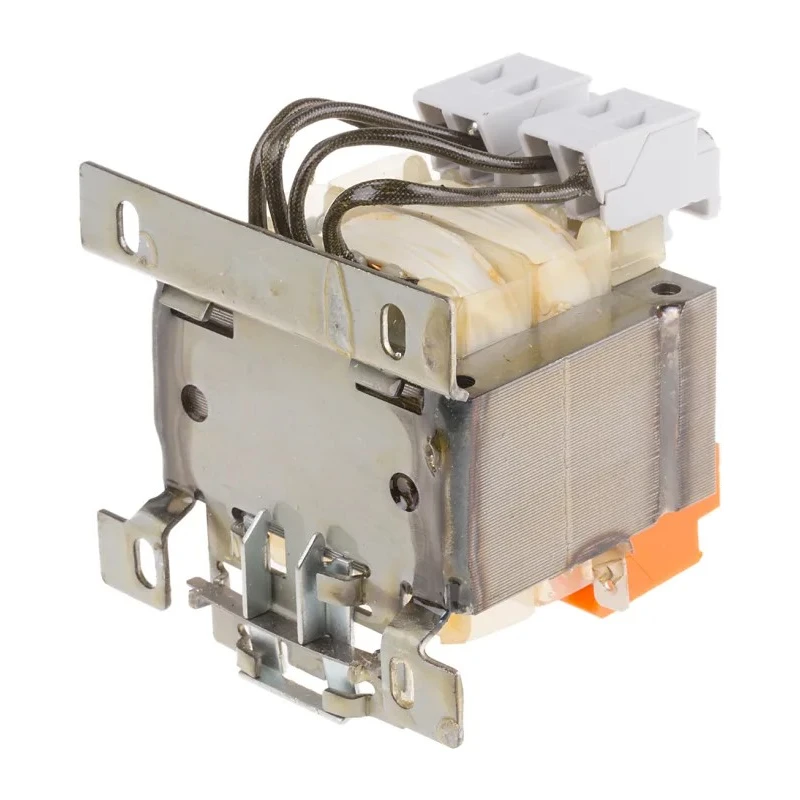

RS PRO 40 VA DIN Rail Transformer, 230 V AC, 400 V AC Primary, 2 x 12 V AC Secondary, DIN Rail Mount, 66x66x88mm 123-5699

RS PRO 123-5699 DIN Rail Transformer is a premium 40 VA single-phase power transformer engineered to provide robust voltage transformation for industrial, commercial, and electrical distribution applications. It supports primary input voltages of 230 V AC and 400 V AC and delivers dual secondary outputs of 12 V AC each, enabling diverse use cases in control, automation, and power supply circuits.

This transformer features a DIN Rail mount type facilitating quick and secure panel installation within electrical enclosures. The compact footprint with dimensions 66 mm (L) x 66 mm (W) x 88 mm (D) allows it to integrate smoothly in constrained spaces while maintaining high performance.

Designed to meet rigorous standards such as ASNZS 61558..6, ASNZS 61558.1, CE, and RoHS, this unit ensures high efficiency with low acoustic noise through the use of low noise laminations and varnish impregnation. It includes an earth terminal and second section bobbin for full isolation between primary and secondary windings to guarantee electrical safety.

Its operational parameters include a frequency range from 50 Hz minimum up to 60 Hz maximum and a maximum operating temperature of 130°C, accommodating demanding industrial environments. Weighing 26 kg, this transformer is built for durability and stable performance over extended use.

Supports dual primary voltages 230 V AC and 400 V AC for flexibility. Provides two 12 V AC secondary outputs suitable for isolated power supply needs. DIN Rail mounting allows secure and space-efficient installation. Meets international safety and quality standards including ASNZS and CE.

Constructed with high-efficiency laminated core and varnished coil for durability. Designed with earth terminal and full winding separation for enhanced safety. Operates efficiently in 50 to 60 Hz frequency range with low noise emission.

Capable of operating at up to 130°C to withstand harsh environments. Compact size and moderate weight make it ideal for panel mounting.

This transformer is ideal for use in industrial automation, electrical control panels, power management, and general electrical applications requiring safe and reliable voltage conversion. It combines quality construction with versatile operational specifications to meet the demands of various electrical and electronic equipment setups.

Explore the RS PRO range at EnvMart for a trusted selection of transformers and related power components, engineered to industry standards and suitable for professional engineering projects.
