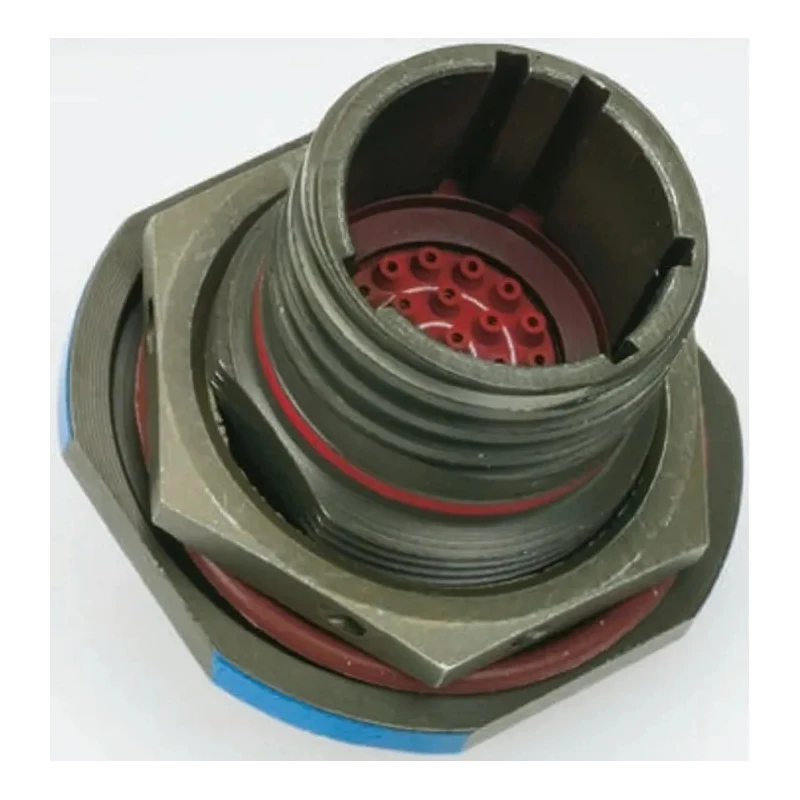

Amphenol Limited MIL Spec Circular Connector TV07RW-15-35PN(W52) Copper Alloy Straight 37 Way Panel Mount 400V 5A TV

Amphenol Limited TV07RW-15-35PN(W52) MIL Spec Circular Connector is a high-quality copper alloy straight 37 way panel mount connector designed to meet and exceed MIL-DTL-38999 Series 3 standards. The rugged aluminium alloy housing is machined for strength and finished with a zinc cobalt plating providing an olive drab, cadmium-free, corrosion-resistant surface. This connector is engineered to perform reliably in demanding industrial, military, aerospace, and harsh environmental applications where secure, durable electrical connections are critical.

The connector accommodates 37 contacts with gold plating for optimal electrical conductivity and corrosion resistance. It supports a current rating of 5A and voltage up to 400 to 500V AC, suitable for power and signal transmission. The crimp termination type allows secure and field-serviceable wire attachment, while the screw coupling ensures a strong mechanical connection. The connector's operating temperature range spans from -65°C to 175°C, making it suitable for extreme temperature environments.

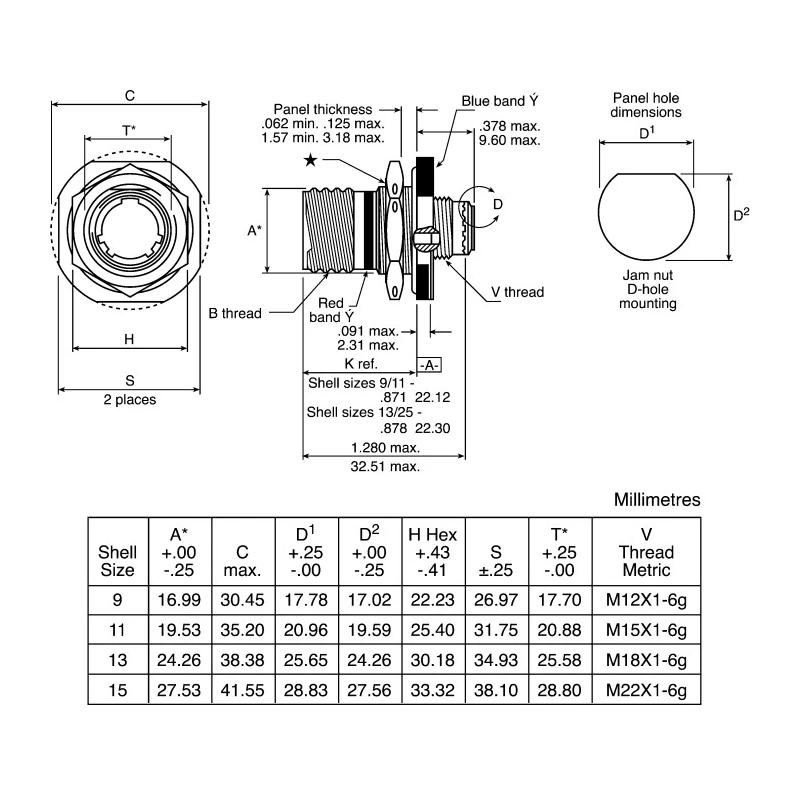

Mounting is facilitated by a jam nut threaded olive drab receptacle designed for panel installation, providing stable and vibration-resistant fixing. The straight orientation and strain relief feature enhance cable management and mechanical reliability. The unique green coloured shell aids identification and complies with military color coding standards.

This connector series is compliant with military and industrial standards including MIL-DTL-38999, BS 9520 G0003, JN1034, and offers assurance of quality and longevity. It is manufactured in India to exacting quality requirements.

Constructed from aluminium alloy housing with zinc cobalt plating for corrosion durability. 37 gold-plated copper alloy contacts ensure reliable conductivity. Rated for 5A current and 400 - 500V AC voltage applications. Crimp termination with rear release for ease of wiring.

Screw coupling mating type for secure connection. Operating temperature range: -65°C to 175°C for extreme environments. Green coloured straight panel mount design with strain relief. Jam nut receptacle mounting style providing mechanical stability.

Meets MIL-DTL-38999 military connector standards and related approvals.

This Amphenol Limited Mil Spec Circular Connector TV07RW-15-35PN(W52) is ideal for industrial, military, aerospace, and harsh environment electrical connector applications where reliability, ruggedness, and compliance with military standards are essential. Explore more high-performance circular connectors and accessories in EnvMart's Electronics & Electricals category to find the optimal solution to your system integration needs.
