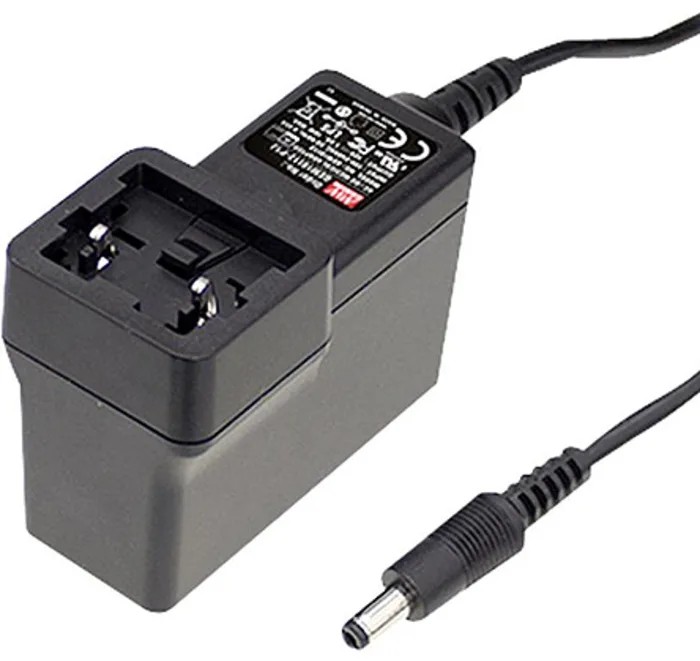

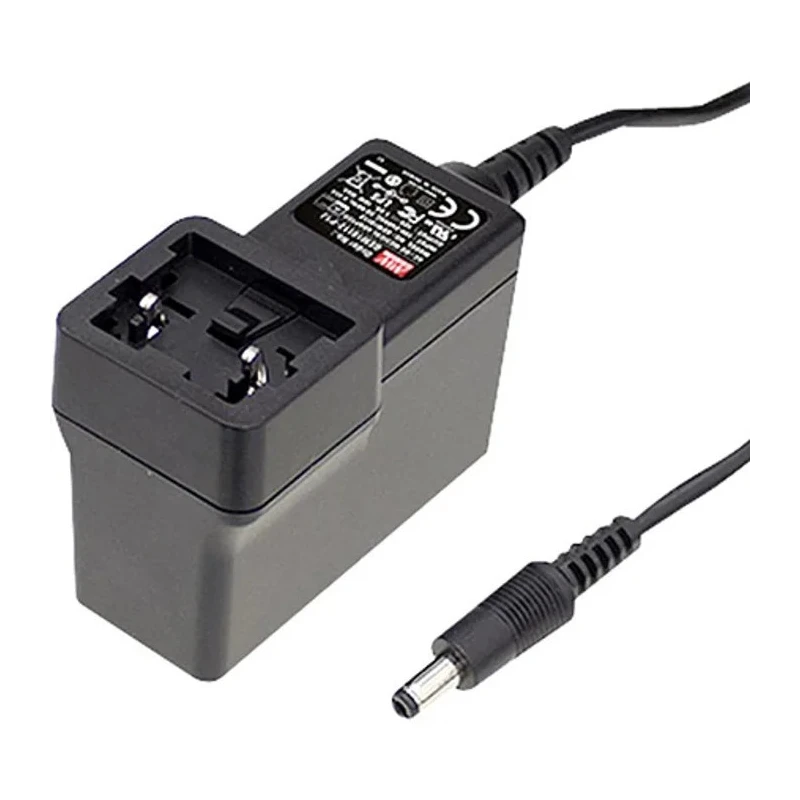

MEAN WELL AC/DC Adapter 18 V dc 1.66 A Output Universal Plug GEM30I18-P1J

MEAN WELL GEM30I18-P1J AC/DC Adapter is a reliable and compact power supply designed for medical and precision electronic devices. It outputs 18 V dc at a maximum current of 1.66 A, making it suitable for a wide variety of medical equipment and instrumentation.

This adapter supports interchangeable AC plug types for Australia, EU, UK, and US markets, enabling global compatibility and easy deployment in diverse environments. Its universal input voltage rating from 100 V ac to 264 V ac allows seamless operation under varying electrical standards.

Encased in a flame retardant 94V-0 plastic housing, the adapter provides robust protection against electrical hazards. The unit complies with stringent medical safety and EMC standards including ANSI/AAMI ES60601-1, TUV EN60601-1, UL 60950-1, IEC 60950-1, and CE certifications. It features essential protections such as short circuit, overload, and over voltage safeguards ensuring operational safety and durability.

The GEM series achieves high energy efficiency levels up to 90.5% depending on model variant, combined with a low no-load consumption below 0.1 W. Its compact dimensions (overall width 75.5 mm, depth 56.2 mm, length 39.1 mm) and a 1.5 m cable length provide convenience in installation and use.

Typical applications for this adapter include powering blood glucose meters, blood pressure monitors, inhalers, nebulisers, sleep apnea devices, and other portable medical instruments requiring medical grade power solutions.

Supports multiple plug types including Australia, EU, UK, and US. Equipped with a 1.5 m cable for convenient connectivity. Compact dimensions of 75.5 mm width, 56.2 mm depth, and 39.1 mm length. Features universal input voltage range from 100 V ac to 264 V ac.

Complies with medical safety standards ANSI/AAMI ES60601-1 and TUV EN60601-1. Incorporates protection against short circuits, overloads, and over voltage conditions. Energy efficient with Level VI rating and low no-load power consumption below 0.1 W.

Suitable for medical devices including blood glucose and blood pressure meters, inhalers, and nebulisers. Maximum operating temperature of 70°C ensures reliable performance.

This MEAN WELL GEM series adapter provides a versatile, safe, and efficient power supply solution for medical device manufacturers and users, ensuring compliance with international safety standards and delivering reliable performance for critical applications in industrial, laboratory, medical, and commercial environments. Browse EnvMart for more power supply and AC/DC Adapter options from MEAN WELL and other top brands.
