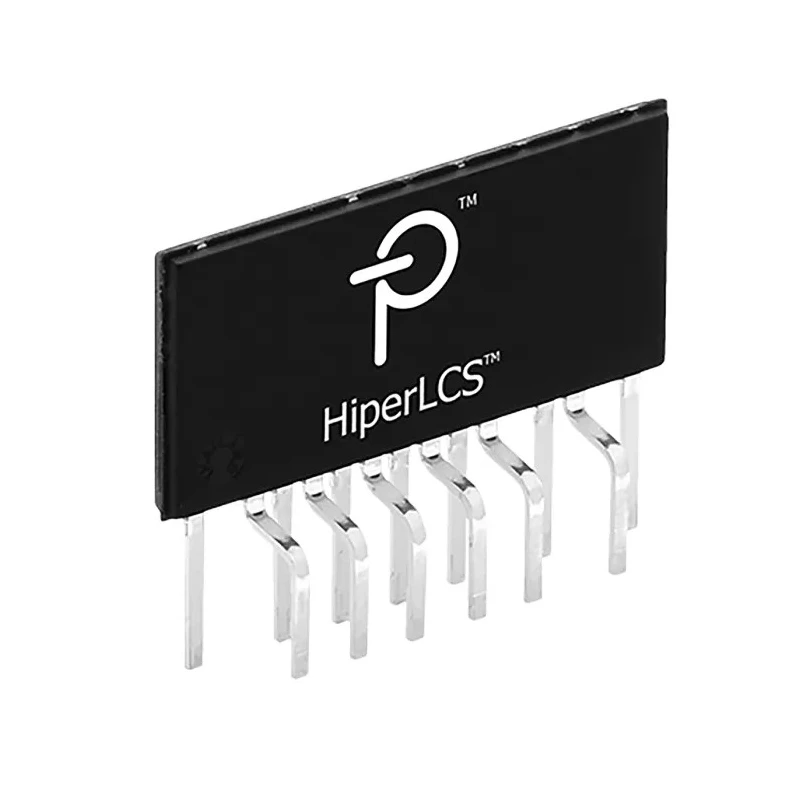

Power Integrations AC/DC Converter 12.9 A 530 V -1.3 V 275 W 16-Pin eSIP-16J LCS703HG

Free Delivery in India | Lowest Global Shipping Charges

Power Integrations AC/DC Converter 12.9 A 530 V -1.3 V 275 W 16-Pin eSIP-16J LCS703HG

Name: Power Integrations AC/DC Converter 12.9 A 530 V -1.3 V 275 W 16-Pin eSIP-16J LCS703HG
Brand: Power Integrations
SKU: 192597
Price: 6.46 USD
Availability: InStock



Category AC/DC Converter Brand Power Integrations Condition New

Specifications

Country of Origin	India
Brand	Power Integrations
Height	8.25mm
Length	16.59mm
Model	LCS703HG
Width	2.06mm
Output Power	275W
Mount Type	Through Hole
Maximum Duty Cycle	50%
Series	HiperLCS
Topology	LLC Half Bridge
Maximum Operating Temperature	150°C
Package Type	eSIP-16J
Minimum Operating Temperature	-40°C
Maximum Input Voltage	15V
Maximum Output Current	12.9A
Standards/Approvals	RoHS
Maximum Output Voltage	530V
Minimum Input Voltage	11.4V
Pin Count	16
Supply Current	5.4mA
Minimum Output Voltage	-1.3V

Key Features

Supports a maximum input voltage of 15 V and minimum input voltage of 11.4 V.
Features an LLC Half Bridge topology for high-efficiency power conversion.
Operates within a temperature range from -40°C to 150°C.
Maximum duty cycle is 50% ensuring reliable operation.
Includes protections such as under-voltage, over-voltage, over-current, short-circuit, and over-temperature.
Programmable brown-in/out thresholds and hysteresis enhance stability.
Supply current is 5.4 mA for efficient power consumption.
Complies with RoHS standards and is not certified for automotive use.

Product Description

Power Integrations LCS703HG AC/DC Converter is a high-efficiency power management integrated circuit designed for up to 275 W output power applications. This device employs a resonant half bridge LLC topology, providing excellent performance suitable for various industrial and electronic applications requiring compact and reliable power conversion.

The device supports a maximum input voltage of 15 V and a minimum input voltage of 11.4 V, delivering a maximum output current of 12.9 A with a maximum output voltage of 530 V. It features a 16-pin eSIP-16J package mounted through-hole, facilitating easy integration into printed circuit boards. Its compact physical size measures 16.59 mm in length, 8.25 mm in height, and 2.06 mm in width.

Key built-in protections include under-voltage, over-voltage, over-current, short circuit, and over-temperature safeguards to ensure stable and safe operation in demanding environments. Programmability options such as brown-in/out thresholds, hysteresis, soft-start time, and delay before soft-start enhance operational flexibility and reliability of power supply designs.

The LCS703HG converter operates efficiently with a supply current of 5.4 mA and supports a maximum duty cycle of 50%, allowing for optimized power management in diverse setups. This unit complies with RoHS standards, reinforcing its environmental compatibility, though it is not automotive certified.

This product is ideal for use in industrial power supplies, telecommunications equipment, and other applications requiring stable AC/DC power conversion with high performance and minimal external component requirements. Its integration into compact designs reduces PCB footprint and simplifies the power supply layout.

Supports high maximum operating frequency of 1 MHz with nominal steady-state operation up to 500 kHz. Enables simple single-clip attachment to heat sinks for effective thermal management. Suitable for industrial, laboratory, and electronic manufacturing applications.

Explore the Power Integrations product range in the AC/DC Converters category for high-quality power management solutions at EnvMart.
