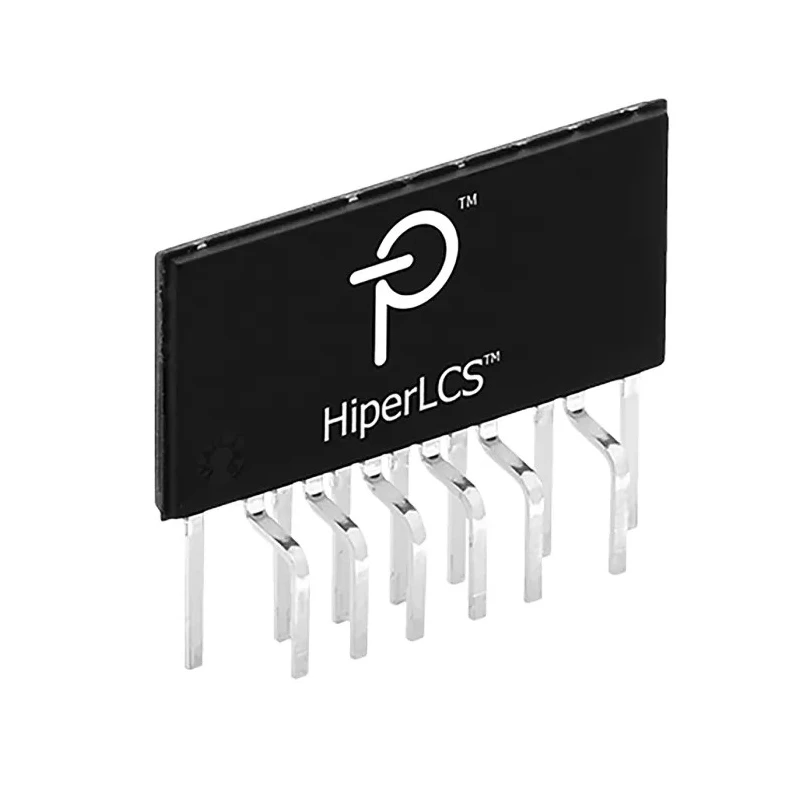

Power Integrations AC/DC Converter 30.9 A 530V -1.3 V 16-Pin eSIP-16J LCS708HG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Power Integrations |
| Height | 8.25mm |
| Length | 16.59mm |
| Model | LCS708HG |
| Width | 2.06mm |
| Output Power | 440W |
| Mount Type | Through Hole |
| Maximum Duty Cycle | 50% |
| Series | HiperLCS |
| Topology | LLC Half Bridge |
| Maximum Operating Temperature | 150°C |
| Package Type | eSIP-16J |
| Minimum Operating Temperature | -40°C |
| Maximum Input Voltage | 15V |
| Maximum Output Current | 30.9A |
| Standards/Approvals | RoHS |
| Maximum Output Voltage | 530V |
| Minimum Input Voltage | 11.4V |
| Pin Count | 16 |
| Supply Current | 5.4mA |
| Minimum Output Voltage | -1.3V |
Key Features
- High power output of 440 Watts suitable for efficient power supply designs.
- Features LLC Half Bridge topology for high efficiency and integration.
- Wide input voltage range from 11.4V to 15V for versatile applications.
- Operating temperature from -40°C to 150°C supports industrial environments.
- Built-in protections including under-voltage, over-voltage, over-current, short-circuit, and over-temperature safeguards.
- Compact dimensions of 16.59mm length, 8.25mm height, and 2.06mm width.
- Supply current is 5.4mA with a maximum duty cycle of 50%.
- Designed for through-hole mounting facilitating robust assembly.
Product Description
Power Integrations LCS708HG is an advanced AC/DC converter integrated circuit designed for high-efficiency offline power supply implementations. It utilizes the HiperLCS family LLC Half Bridge topology to provide a compact and efficient power conversion solution with performance up to 440 Watts.
This device incorporates two power MOSFETs in a half-bridge configuration along with multi-function controller circuitry, including high-side and low-side gate drivers, enabling reduced external components and simplified printed circuit board layouts. The device is packaged in a 16-pin eSIP-16J through-hole form factor, making it suitable for industrial, commercial, and HVAC power supply applications.
The LCS708HG supports a wide input voltage range of 11.4V to 15V and delivers a maximum output voltage of 530V with a continuous maximum output current of 30.9A. It features programmable brown-in/out thresholds with hysteresis, under-voltage and over-voltage protection, programmable over-current protection, short-circuit detection, and over-temperature shutdown, ensuring robust and reliable operation in demanding environments.
Operating temperature range extends from -40°C to +150°C, accommodating harsh industrial conditions. The maximum operating switching frequency is 1 MHz, with steady-state operation nominally up to 500 kHz, which enables reduced power loss and compact magnetics design. The maximum duty cycle is limited to 50%, providing optimized power efficiency.
The compact dimensions (16.59 mm length, 8.25 mm height, 2.06 mm width) make the converter easy to integrate into tightly spaced power supply modules. Supply current consumption is 5.4 mA in operation.
High integration reduces PCB area and component count. Robust protections improve reliability and safety in power supply systems. Suitable for industrial, laboratory, commercial, HVAC, and manufacturing power systems. This product complies with RoHS environmental standards, affirming its suitability for environmentally conscious applications.
Explore EnvMart for more Power Integrations AC/DC Converters and advanced power management semiconductor solutions to enhance your design and production workflows.
