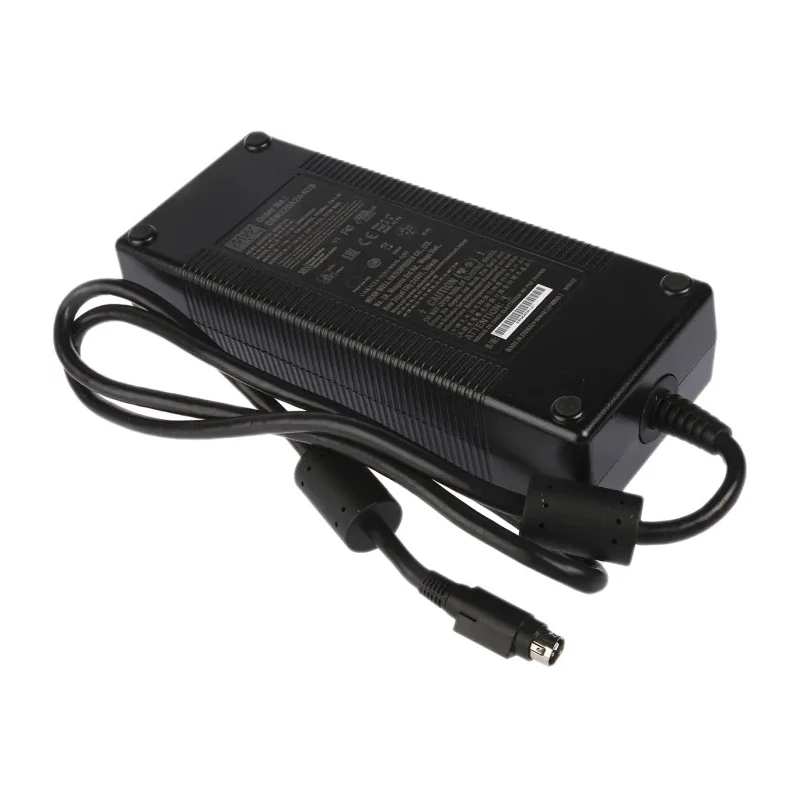

MEAN WELL AC/DC Adapter 264V AC Input 4.6A Maximum Output Current 48V DC Output GSM220A48-R7B

MEAN WELL GSM220A48-R7B is a highly reliable industrial-grade AC/DC adapter featuring universal AC input voltage from 90V to 264V and delivering a maximum current output of 4.6A at 48V DC. Its compact form factor with overall dimensions 210mm (L) x 85mm (W) x 35mm (D) and a 1000mm cable length make it suitable for various industrial and medical applications requiring stable DC power supply.

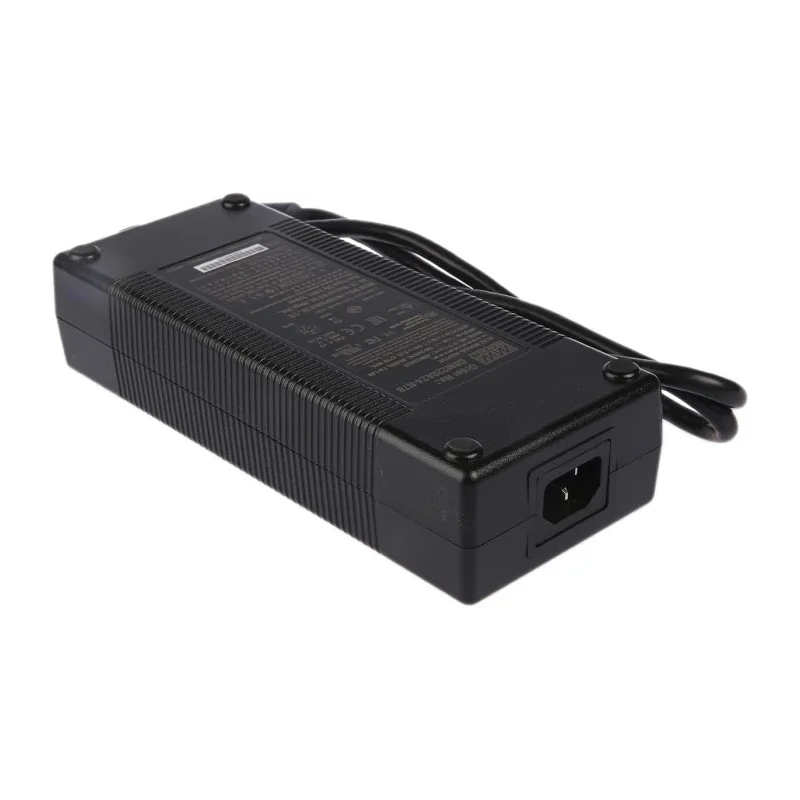

This adapter is designed with safety and energy efficiency in mind. It complies with IEC 60950-1, CE, and UL 60950-1 standards and meets Level V energy efficiency requirements, ensuring minimized power loss and environmental impact. It features a class I power configuration with a 3-pole IEC 320-C14 inlet, providing safe grounding and protection.

The GSM series incorporates medical-grade desktop power supply quality with ultra-low leakage current and 2*MOPP international medical safety standards, suitable for sensitive medical and laboratory equipment. The device is certified UL Energy Verified for superior energy performance and has an operational temperature tolerance up to 70°C for enhanced durability in demanding environments.

Energy-saving features include the "Supreme" technology that enables power reduction during standby or low load operations, minimizing electricity costs. This adapter is part of the Mean Well GSM220A series well-known for compactness, high reliability, and robust construction.

Universal AC input voltage from 90V to 264V ensures wide compatibility. Maximum output current of 4.6A at regulated 48V DC output. 3-Pole IEC 320-C14 inlet for safe and stable connection. Compact size fits diverse equipment and installation constraints.

Adheres to medical safety standards with ultra-low leakage current. Complies with IEC, CE, and UL safety certifications. Meets Level V energy efficiency and UL Energy Verified program. Low no-load power consumption below 0.15W.

Operational temperature up to 70°C for reliability. Energy-saving “Supreme” feature for lower power use during standby.

This MEAN WELL adapter is ideal for industrial, medical, laboratory, and commercial applications requiring a dependable 48V DC power source. It supports efficient energy use aligned with sustainability goals while providing compliance with international safety standards. Explore our range of power supplies and transformers on EnvMart for high-quality power conversion solutions.
