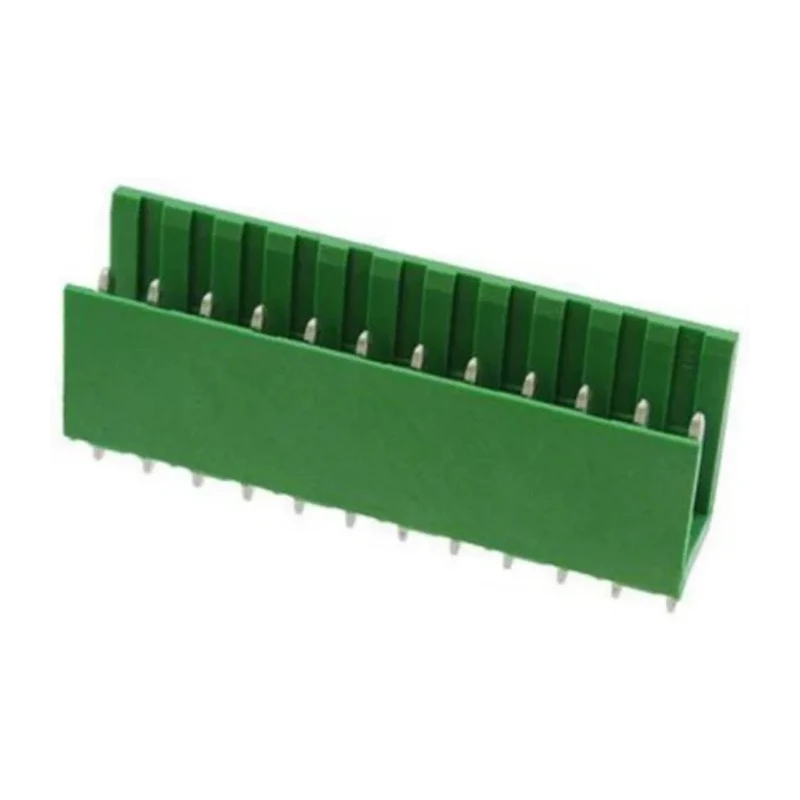

TE Connectivity AMPMODU MOD I Series Straight Through Hole Shrouded PCB Header, 12 Contacts, 3.96 mm Pitch, 1 Row 280614-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 280614-1 |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polycarbonate |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD I |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.3mm |
Key Features
- Features a straight orientation with a shrouded design for enhanced pin protection.
- Utilizes glass filled polycarbonate housing rated for flame retardance according to UL 94V-1 standards.
- Conductive contacts are made from phosphor bronze with tin plating for corrosion resistance.
- Rated for a current of 3 amps and voltage up to 750 volts, suitable for industrial applications.
- Designed with polarization to prevent mismating and ensure secure connections.
- Suitable for board-to-board and wire-to-board connector systems.
- The tail pin length measures 3.3 mm, optimized for solder termination.
- Operating temperature range spans from -65°C to 105°C, supporting varied environmental conditions.
Product Description
TE Connectivity 280614-1 AMPMODU MOD I Series Straight Through Hole Shrouded PCB Header features 12 contacts arranged in a single row with a 3.96 mm pitch. This connector is engineered for robust performance in electronics and industrial applications requiring secure board-to-board or wire-to-board interfacing.
The housing material is glass filled polycarbonate that meets UL 94V-1 flame retardant standards ensuring durability and safety. The shrouded design on two sides provides pin protection and reduces the risk of damage or corrosion.
Contacts are manufactured from phosphor bronze and plated with tin, offering excellent conductivity and resistance to environmental factors. The connector supports a maximum current of 3A and voltage rating up to 750V, making it suitable for power-related electronics tasks.
The header features polarization to prevent incorrect mating and has a tail pin length of 3.3 mm for optimum soldering effectiveness on PCB boards. It operates reliably across a wide temperature range from -65°C to 105°C, accommodating diverse industrial environments.
Commonly applied in power supplies, industrial controls, and switchgear, this PCB header delivers rugged design and dependable performance essential in complex electrical assemblies. Its through-hole mounting method simplifies installation and enhances mechanical stability.
Features a straight orientation with pin protection through shrouding. Constructed from flame retardant glass filled polycarbonate housing. Phosphor bronze contacts with tin plating for durability. Rated for up to 3 amps current and 750 volts voltage.
Polarization prevents mismating for secure connections. Designed for board-to-board and wire-to-board applications. Tail pin length optimized at 3.3 mm for soldering. Wide operating temperature range from -65°C to 105°C.
Ideal for power supplies, industrial control, and switchgear. Through-hole mounting for reliable PCB installation.
This product is an integral component for industrial, electronic manufacturing, and power supply applications. Browse the Electronics Components category at EnvMart for similar PCB connectors and headers.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this PCB header is 3 amps.
This connector can handle a voltage of up to 750 volts.
The pitch of the contacts in this model is 3.96 mm.
The housing is made from glass filled polycarbonate, and the contacts are made from phosphor bronze with tin plating.
The tail pin length is optimized at 3.3 mm for solder termination.
This connector operates reliably across a temperature range from -65°C to 105°C.
This PCB header is designed for through-hole mounting.
This model supports both board-to-board and wire-to-board connector systems.
Yes, this connector features polarization to prevent mismating and ensure secure connections.
This PCB header has 12 contacts arranged in a single row.
The orientation of this PCB header is straight.
The series name of this connector is AMPMODU MOD I.
