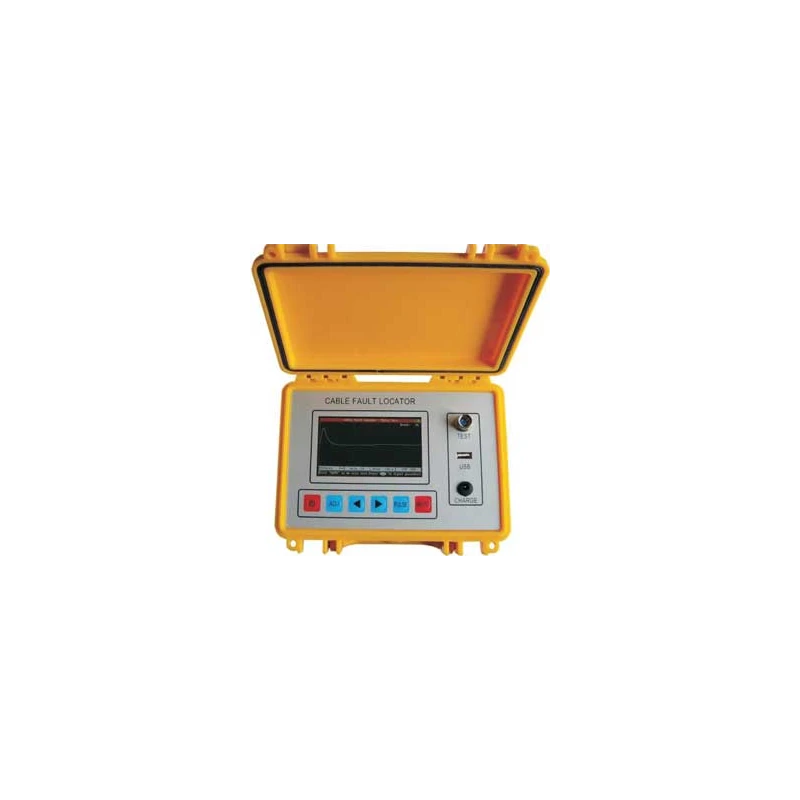

Kusam-Meco KM-CFPL-620 Cable Fault Locator
Specifications
| Dimension | 212 (L) x 170 (W) x 90 (H) mm (approx.) |
|---|---|
| Applications | Underground fault locator |
| Working Temperature | -15C ~ + 55C| RH Less Than 85%RH |
| Model | KM-CFPL-620 |
| Weight | 1.20 KG |
| Operation temperature | -15 DegreeC ~ + 55 DegreeC |
Key Features
- Small size, light weight and ABS plastic housing which is ergronomically designed for easy use by user
- Measurement maximum 8 km in selectable ranges
- Range, VOP and Gain are selected automatically
- Intelligent bridge (Bridge) testing for open, short, or low insulation cable faults. With mega meter it enables to test insulation resistance and loop resistance
Product Description
Kusam-Meco KM-CFPL-620 Cable Fault Locator, KUSAM-MECO underground Cable Fault Pre-locator is an automatic Cable Fault Locator which adopts ARM, FPGA & Dot Matrix Color LCD display Technology. This tester combines both pulses reflecting technology (TDR) & (intelligent Bridge testing (Bridge) (Model-KM-CFPL-620B) for measuring the exact fault location such as broken line, cross faults, earthing, (poor insulation & poor contact of the lead-covered cables as well as plastic cables. (Model-KM-CFPL-620B)
- Six function keys and simple operation
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum measurement range of the Kusam-Meco KM-CFPL-620 Cable Fault Locator is 8 km, with selectable ranges.
The dimensions of the KM-CFPL-620 are approximately 212 mm in length, 170 mm in width, and 90 mm in height.
This model weighs approximately 1.20 kg.
The operating temperature range for the KM-CFPL-620 is between -15°C and +55°C with a relative humidity of less than 85%.
The KM-CFPL-620 is designed for use as an underground fault locator.
It uses a combination of pulse reflecting technology (TDR) and intelligent bridge testing to measure the exact fault location.
This model features a dot matrix color LCD display for clear visibility during operation.
The housing of the KM-CFPL-620 is made from ABS plastic, designed for ergonomic use.
It can perform tests for open, short, or low insulation cable faults, as well as insulation resistance and loop resistance testing with a megohmmeter.
Yes, the device automatically selects range, VOP, and gain settings for ease of use.
The KM-CFPL-620 is equipped with six function keys for simple operation.
The relative humidity tolerance for this model is less than 85% RH.
