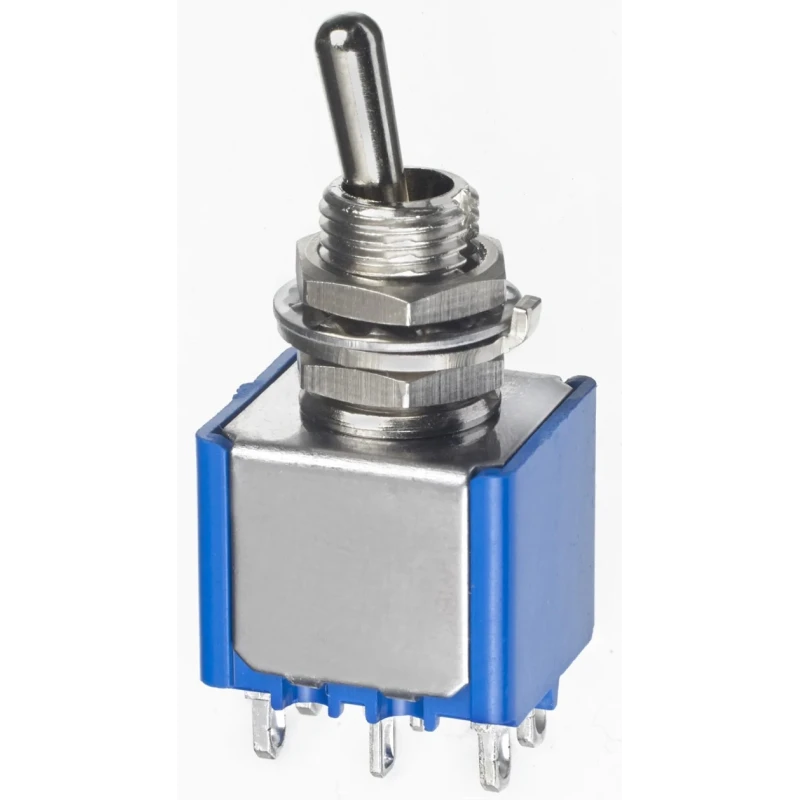

APEM Toggle Switch Panel Mount On-On DPDT Solder Lug Terminal 30 V dc 30 V ac 5646A17
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | 5646A17 |
| Mount Type | Panel |
| Series | 5000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 6.5 mm |
| Terminal type | Solder Lug |
| Standards/Approvals | CECC 96201-007, CSA, UL, UL Recognised, VDE |
| Switch Operation | On-On |
| Actuator Length | 7mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 4A |
| Mechanical Life | 100000Cycles |
| Contact AC Voltage | 30V ac |
| Actuator Material | Brass |
Key Features
- The toggle switch features a panel mount type with a 6.5 mm panel cutout.
- It operates with an On-On switch configuration and Double Pole Double Throw (DPDT) contact configuration.
- Rated for 4 amp switch contact current for DC and AC applications up to 30 V.
- Equipped with 7mm brass actuator for reliable mechanical operation between -40°C to 85°C.
- Gold-plated contacts ensure excellent conductivity and arcing resistance.
- Mechanical life expectancy of 100,000 cycles for durable usage.
- Complies with CECC 96201-007, CSA, UL, UL Recognised, and VDE standards.
- Not illuminated and uses solder lug terminal type for secure wiring connections.
Product Description
APEM 5646A17 Toggle Switch is a panel mount On-On DPDT switch with solder lug terminals, rated for 30 V dc and 30 V ac operation. It offers a compact 6.5 mm panel cutout size and a 7 mm brass actuator, making it suitable for a variety of industrial and electronic control applications.
This toggle switch features a double pole double throw contact configuration with gold-plated contacts, ensuring excellent electrical connectivity and arcing resistance. It is designed for a switch contact current of 4A, supporting both AC and DC voltages up to 30 volts.
With a robust mechanical life of 100,000 cycles, this durable switch withstands operating temperatures from -40°C to 85°C, meeting rigorous CECC 96201-007, CSA, UL, UL Recognised, and VDE standards for safety and reliability.
The switch is non-illuminated and uses solder lug terminals for secure and reliable soldered connections. Its IP67 rating allows use in both internal and external environments, suitable for automation, electrical panels, and control equipment in manufacturing, industrial, and electrical engineering settings.
The toggle switch features a panel mount type with a 6.5 mm panel cutout. It operates with an On-On switch configuration and Double Pole Double Throw (DPDT) contact configuration. Rated for 4 amp switch contact current for DC and AC applications up to 30 V.
Equipped with 7mm brass actuator for reliable mechanical operation between -40°C to 85°C. Gold-plated contacts ensure excellent conductivity and arcing resistance. Mechanical life expectancy of 100,000 cycles for durable usage.
Complies with CECC 96201-007, CSA, UL, UL Recognised, and VDE standards. Not illuminated and uses solder lug terminal type for secure wiring connections. Suitable for industrial, automation, electrical, and electronic applications requiring precise and reliable switching.
This APEM Toggle Switch offers a trustworthy and tested solution for panel mounting requirements, fulfilling demanding operational and environmental conditions. Its compact design and high specification make it ideal for electrical panel assembly, control panels, automation equipment, and electronic instrumentation.
Explore our extensive range of switches and control components to find compatible products and accessories for your industrial, manufacturing, or electrical projects on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile switching options.
It is rated for operation at 30 V for both DC and AC applications.
The maximum operating temperature for this toggle switch is 85°C.
The mechanical life expectancy of this model is 100,000 cycles, ensuring long-term reliability.
This toggle switch requires a panel cutout size of 6.5 mm for proper installation.
It uses solder lug terminals for secure wiring connections.
The actuator is made of brass and has a length of 7 mm, providing reliable mechanical operation.
This unit complies with CECC 96201-007, CSA, UL, UL Recognised, and VDE standards.
The switch configuration is On-On, allowing for two active positions.
The switch contact current rating is 4 A, suitable for both AC and DC applications.
The minimum operating temperature for this model is -40°C, allowing for use in extreme conditions.
This toggle switch is suitable for various industrial and electronic control applications, including automation and electrical panels.
