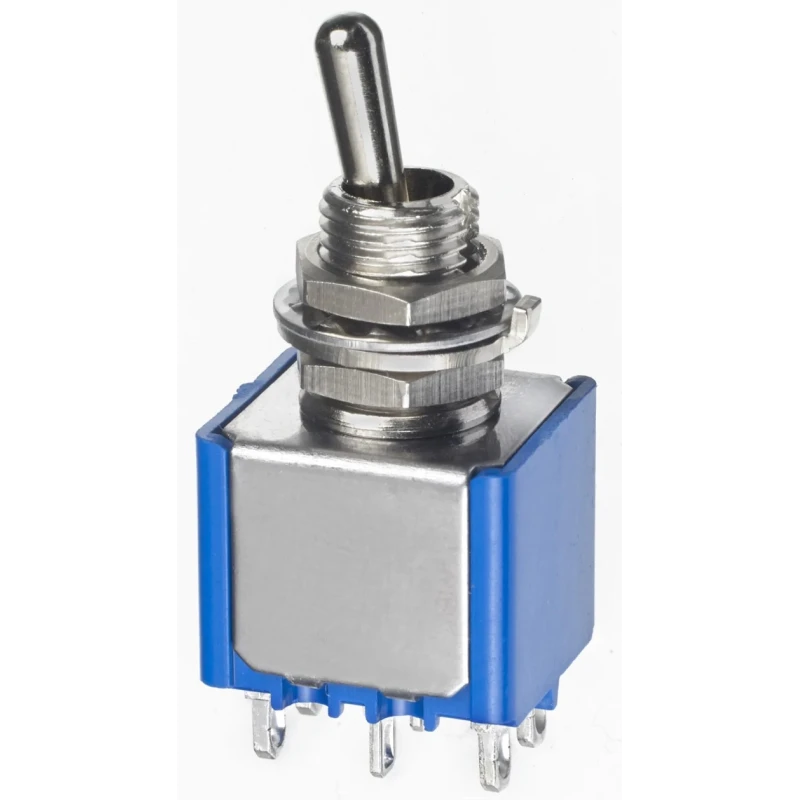

APEM Toggle Switch Panel Mount On-Off-On DPDT Solder Lug Terminal 30 V dc 30 V ac 5647A17
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | 5647A17 |
| Mount Type | Panel |
| Series | 5000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | (On)-Off-(On) |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 6.5 mm |
| Terminal type | Solder Lug |
| Standards/Approvals | CECC 96201-007, CSA, UL, UL Recognised, VDE |
| Switch Operation | On-Off-On |
| Actuator Length | 7mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 4A |
| Mechanical Life | 100000Cycles |
| Contact AC Voltage | 30V ac |
| Actuator Material | Brass |
Key Features
- Gold-plated contacts offer excellent conductivity and arcing resistance.
- IP67 rating ensures suitability for both internal and external applications.
- Mechanical life rated for 100000 cycles ensuring durability.
- Operates reliably between -40°C to 85°C ambient temperatures.
- Actuator is made of robust brass with a length of 7 mm.
- Panel cutout size required is 6.5 mm for installation.
- Available as part of the 5000 series of short lever toggle switches by APEM.
Product Description
APEM 5647A17 Toggle Switch is a high-quality panel mount DPDT switch designed for On-Off-On operation. Rated for 30 V dc and 30 V ac, it suits a variety of electrical and automation control applications.
This toggle switch features gold-plated contacts that provide superior conductivity and resistance to arcing, contributing to reliable long-term performance. The brass actuator, measuring 7 mm in length, ensures a robust tactile feel.
Its IP67 rating certifies the switch for use in both internal and external environments, providing waterproof and dustproof protection. The switch can operate effectively within a wide temperature range from -40°C to 85°C, covering demanding industrial conditions.
The mechanical life of this APEM 5000 series switch is rated at 100000 cycles, demonstrating excellent durability and lifecycle. It is designed for panel mounting, requiring a 6.5 mm panel cutout size, and uses solder lug terminals for secure electrical connections.
The switch carries multiple international approvals including CECC 96201-007, CSA, UL, UL Recognised, and VDE standards assuring compliance with global safety and quality regulations.
Gold-plated contacts ensure reliable electrical connectivity and arcing resistance. IP67 protection rating enables application in harsh environments. Wide operating temperature range from -40°C to 85°C. Robust brass actuator with precise 7 mm length.
Panel mount design with 6.5 mm cutout size. Switch rated for 4 A current capacity. Complies with CECC, CSA, UL, and VDE approval standards.
This toggle switch is ideal for industrial, electrical automation, and control panel applications requiring dependable on-off-on DPDT functionality. It is a trusted component within the APEM 5000 series for use in manufacturing, HVAC, and machinery controls.
Explore more Toggle Switches and electrical components to fit your application needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a DPDT (Double Pole Double Throw) contact configuration, allowing for On-Off-On operation.
This model can operate effectively at a maximum temperature of 85°C.
The required panel cutout size for installation is 6.5 mm.
The mechanical life of this switch is rated for 100,000 cycles, ensuring long-term durability.
It uses solder lug terminals for secure electrical connections.
This switch is rated for a contact current capacity of 4 A.
The minimum operating temperature is -40°C, allowing it to function in extreme conditions.
The actuator is made of brass, providing a robust tactile feel.
It complies with several standards including CECC 96201-007, CSA, UL, UL Recognised, and VDE.
The switch is rated for 30 V dc and 30 V ac, making it suitable for various electrical applications.
Yes, it has an IP67 rating, providing waterproof and dustproof protection, making it suitable for both internal and external applications.
This model is part of the APEM 5000 series of short lever toggle switches.
