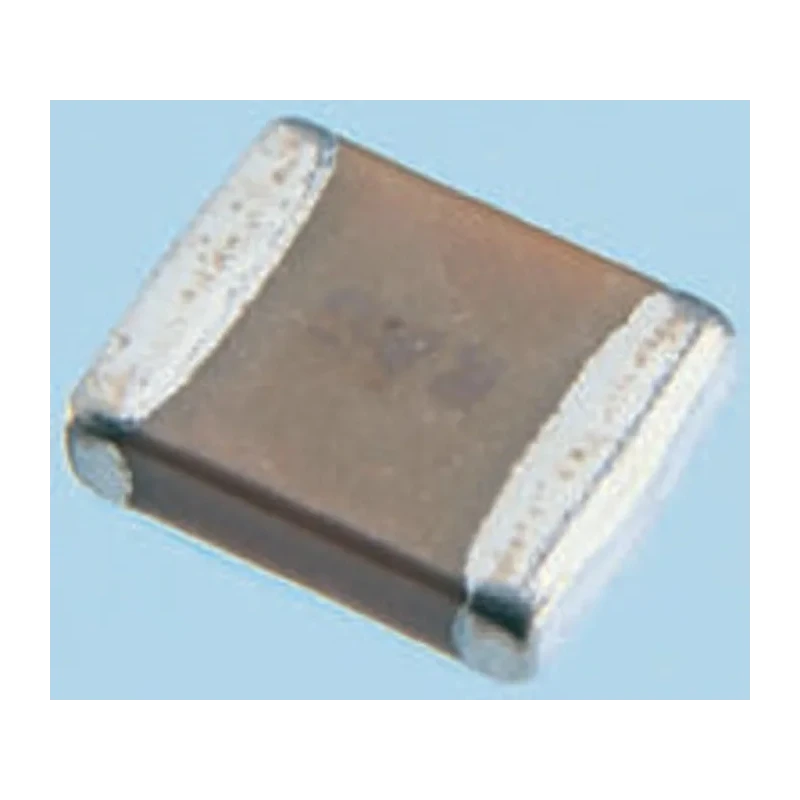

KEMET 1 nF Multilayer Ceramic Capacitor, 2kV dc, ±10 % Tolerance, Surface Mount, X7R Dielectric, 1210 Case C1210C102KGRACTU

KEMET C1210C102KGRACTU multilayer ceramic capacitor is a 1 nF capacitor rated for 2kV dc voltage with ±10 % tolerance, designed for surface mount applications. It belongs to the well-established 1210 package case size, providing dimensions of 3.2mm length, 2.5mm width, and 1.4mm height. The capacitor utilizes X7R dielectric material, offering stable capacitance and excellent temperature performance from -55°C to 125°C. This makes it ideal for demanding industrial and electronic circuits requiring high voltage stability and compact size.

The solder termination type provides reliable mechanical and electrical connection suitable for automated assembly processes. It is packaged in tape & reel format, enabling compatibility with automated pick-and-place systems to ensure production efficiency. This component conforms to internationally recognized quality standards including IPC-7351, EIA 481, and IPC/JSTD-020, assuring high reliability in electronics manufacturing.

This capacitor operates as a Class II suppression device, effectively mitigating electromagnetic interference (EMI) and radio frequency interference (RFI) in sensitive electronic and power supply applications. Its stacked construction enhances Multilayer Ceramic Capacitor reliability and performance in compact footprints.

Common uses include industrial electronics, power supplies, communication devices, automotive electronics, instrumentation, and consumer electronics where precise high voltage capacitors are required. The package size and electrical characteristics support a broad range of PCB design layouts and manufacturing processes.

Set standards and tape & reel packaging make this capacitor suitable for both prototype development and large-scale automated manufacturing environments. KEMET's legacy and industry acceptance ensure dependable performance and long-term supply.

High voltage tolerance of 2kV dc ensures robust performance in demanding circuits. 1210 package size with 3.2mm length, 2.5mm width, and 1.4mm height for compact surface mount designs. X7R dielectric provides stable capacitance over a wide temperature range ±55°C to 125°C.

Tape & reel packaging facilitates efficient automated assembly and handling. Complies with IPC-7351, EIA 481, and IPC/JSTD-020 standards for quality and reliability. Solder termination type ensures solid and reliable electrical connections.

Suppression Class II classification suitable for EMI/RFI noise suppression. Constructed with stacked construction for multilayer ceramic performance. Explore more electronic components and capacitors in EnvMart's comprehensive catalog for industrial and commercial applications.
