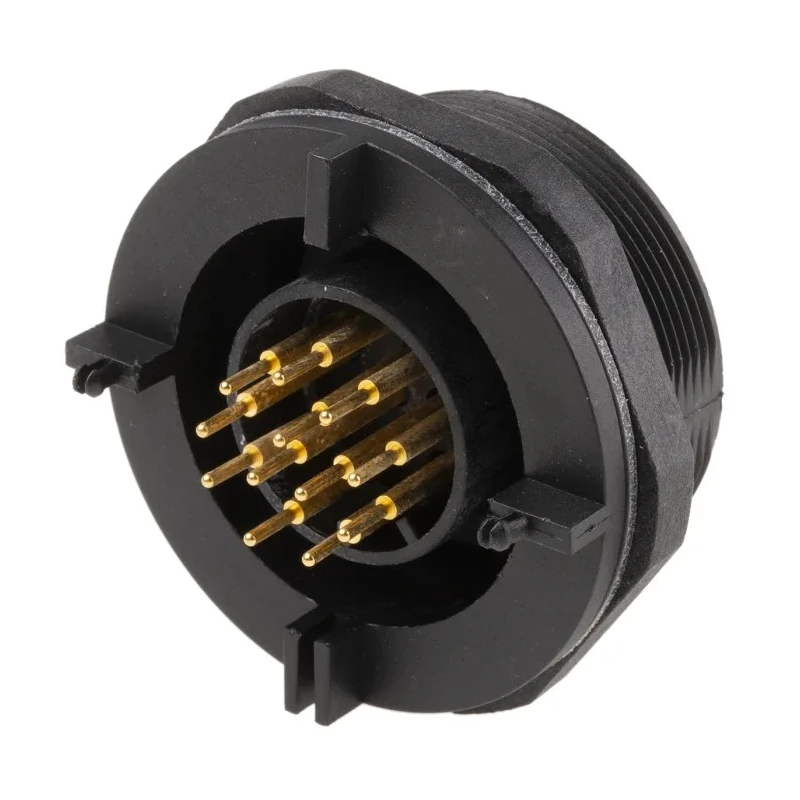

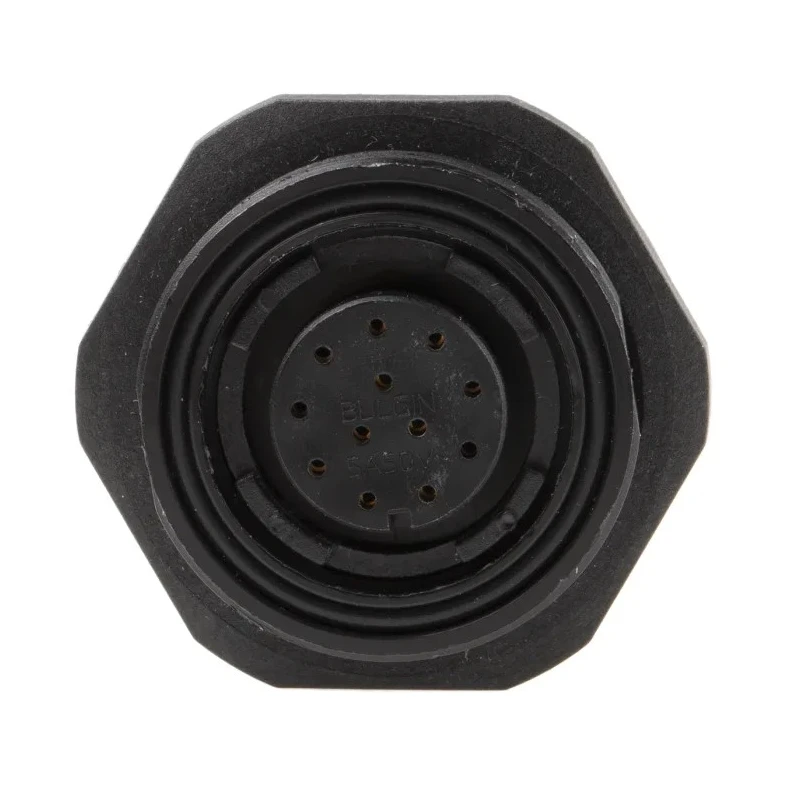

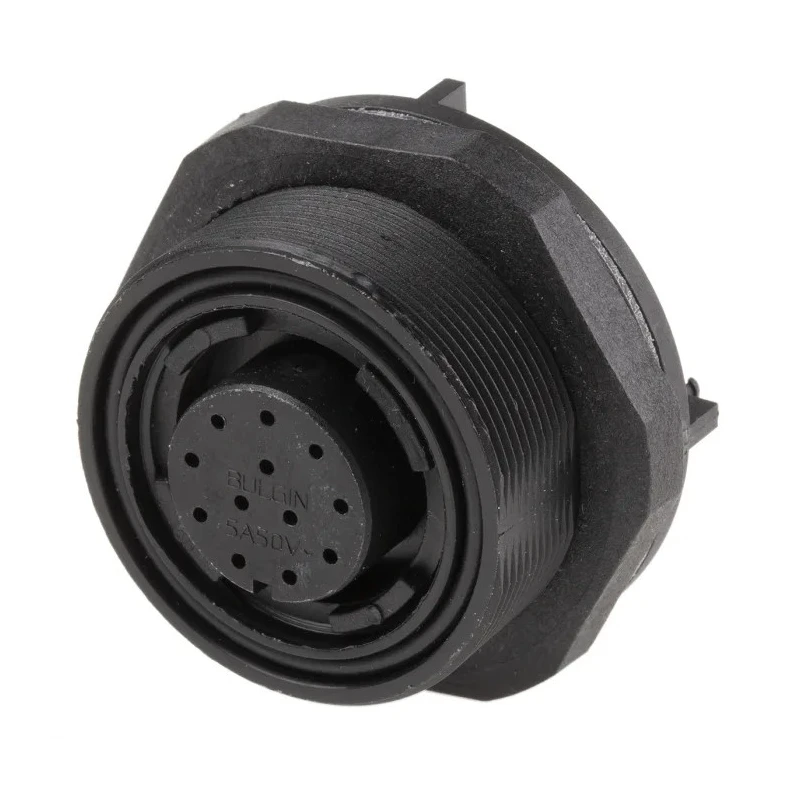

Bulgin Circular Connector Panel Mount Socket Female 12 Contacts 5A 50V IP68 Standard Buccaneer Series PX0707/S/12
Specifications
| Country of Origin | Tunisia |
|---|---|
| Voltage | 50V |
| Brand | Bulgin |
| Orientation | Straight |
| Current | 5A |
| Model | PX0707/S/12 |
| IP Rating | IP68 |
| Mount Type | Panel Mount |
| Housing Material | Polymer |
| Contact Material | Brass |
| Series | Standard Buccaneer |
| Termination Type | PCB |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Shell Size | 35 |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Socket |
| Coding | S |
Key Features
- The connector belongs to the Standard Buccaneer Series, known for robust power management.
- It features a polymer housing with gold-plated brass contacts ensuring conductivity and corrosion resistance.
- Designed for PCB termination with threaded mating type and straight orientation.
- Operational temperature range from -20°C to 70°C supports harsh industrial environments.
- IP68 rating guarantees protection against dust ingress and temporary submersion in water.
- The positive locking keyways prevent mismatches and ensure secure mating connections.
- Suitable for industrial, automotive, and marine power applications.
Product Description
Bulgin PX0707/S/12 Circular Connector is a panel mount socket connector featuring 12 female contacts rated for 5A current and 50V voltage, designed within the Standard Buccaneer Series. Its polymer housing and gold-plated brass contacts provide reliable conductivity and excellent durability in challenging environments.
This connector offers a positive locking mating system that ensures a secure and foolproof assembly. The threaded mating type and straight orientation make it compatible with corresponding flex cable connectors, especially suited for PCB mounting. The design does not require special tooling for contact termination, making assembly straightforward.
Engineered to operate within a temperature range of -20°C to 70°C, it withstands harsh industrial conditions. With an IP68 rating when mated, this connector is dust tight and water resistant to temporary submersion, making it ideal for industrial, automotive, and marine applications that demand high environmental resistance.
The connector's standard shell size 35 and coding type S enhance its compatibility and standardization. The polymer housing complies with UL94HB flammability standards, and insulation resistance exceeds 10^4 MΩ at 500 V DC, ensuring electrical safety and performance.
The Standard Buccaneer connectors provide a reliable solution for power management in demanding industrial contexts. Positive locking keyways prevent mismatching and enhance connection security. Gold-plated brass contacts ensure corrosion resistance and reliable conductivity.
Rear panel mounting facilitates easy installation and replacement. The IP68 protection level guarantees resilience to dust, moisture, and water ingress. Suitable across industrial, automotive, and marine sectors where robust connectors are essential.

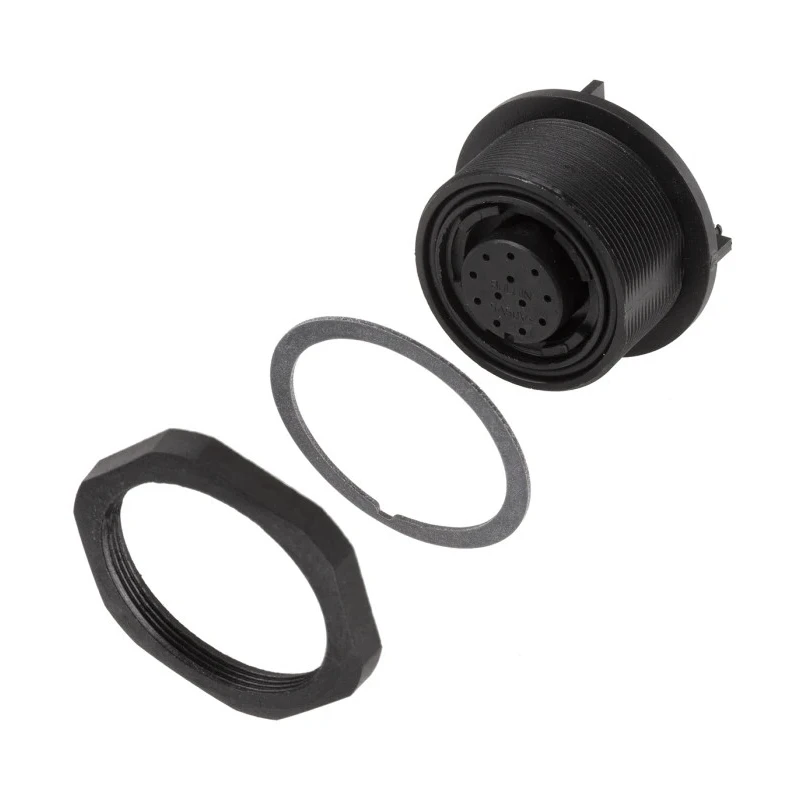

Set includes one Bulgin PX0707/S/12 panel mount circular connector with socket female contacts. Ideal for integration into PCB-mounted power solutions requiring rugged, sealed connectors with reliable electrical performance.
Explore more Industrial Circular Connectors at EnvMart for quality assured power connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bulgin PX0707/S/12 circular connector is rated for a current of 5A and a voltage of 50V.
This connector has an IP68 rating, which ensures it is dust-tight and resistant to temporary submersion in water.
The operational temperature range for this model is from -20°C to 70°C, making it suitable for harsh industrial environments.
This circular connector features 12 female contacts.
The housing is made of polymer, and the contacts are gold-plated brass, providing reliable conductivity and corrosion resistance.
It supports panel mount installation, which facilitates easy integration into various applications.
The termination type for this model is PCB, allowing for straightforward assembly without special tooling.
The connector features a threaded mating type, which ensures a secure connection.
This model has a standard shell size of 35, enhancing compatibility with other components.
It is suitable for industrial, automotive, and marine power applications that require robust and sealed connectors.
Yes, it includes positive locking keyways that prevent mismatches and ensure secure mating connections.
The insulation resistance of this model exceeds 10^4 MΩ at 500 V DC, ensuring electrical safety and performance.
