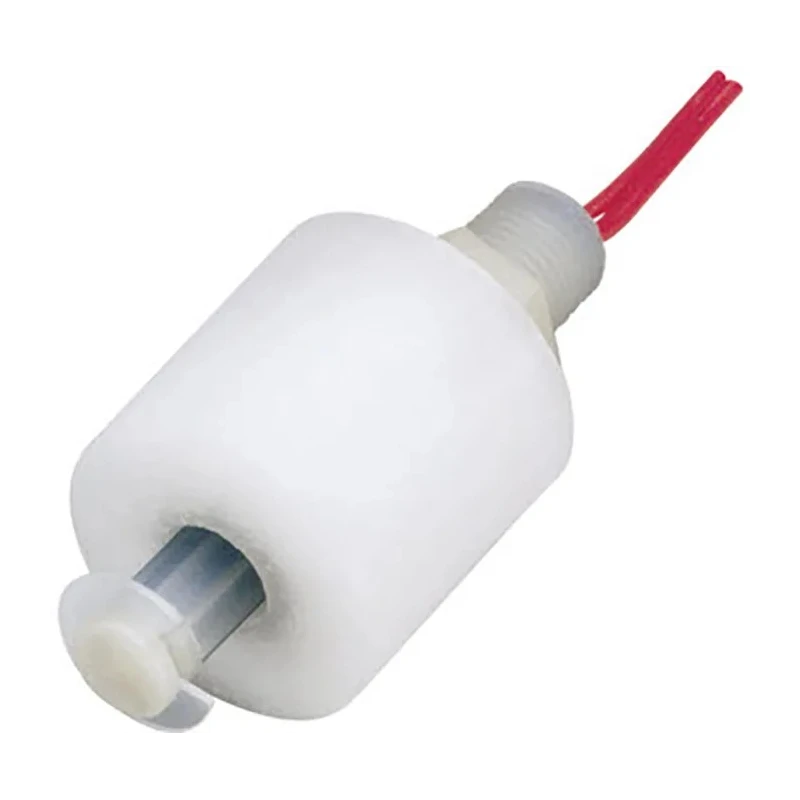

Gems Sensors LS-3 Series Vertical Float Switch 610 mm Cable SPST NO 240V AC 116826

Free Delivery in India | Lowest Global Shipping Charges

Gems Sensors LS-3 Series Vertical Float Switch 610 mm Cable SPST NO 240V AC 116826

Name: Gems Sensors LS-3 Series Vertical Float Switch 610 mm Cable SPST NO 240V AC 116826
Brand: GEMS SENSORS
SKU: 190199
Price: 25.66 USD
Availability: InStock



Category Sensor Brand GEMS SENSORS Condition New

Specifications

Country of Origin	United States
Brand	Gems Sensors
Model	116826
Cable Length	610mm
Mount Type	Vertical
Housing Material	Polypropylene
Series	LS-3
Maximum Operating Temperature	66°C
Maximum Pressure	10bar
Switch output	SPST NO
Minimum Operating Temperature	-40°C
Standards/Approvals	CE, CSA, E45168, EU-directive 2011/65/EC, NSF 169, UL
Maximum AC Voltage	240V ac

Key Features

The vertical mount float switch is made from durable polypropylene housing.
It supports a maximum pressure rating of 10 bar suitable for various liquid level control applications.
Operates reliably in a temperature range from -40°C to 66°C.
The SPST normally open switch output can be reversed for normally closed operation by reversing the float.
Compact design ideal for shallow tanks and restricted spaces with easy installation.
Suitable for industrial automation, water treatment, and HVAC level sensing applications.
Manufactured to meet CE, CSA, UL, NSF 169, and other international standards.

Product Description

Gems Sensors 116826 LS-3 Series vertical float switch features a 610 mm long cable and a robust polypropylene housing designed for vertical mounting. It provides a single pole single throw normally open (SPST NO) switch output and can operate at up to 240 V AC. This float switch is highly reliable for sensing liquid levels in shallow tanks or confined spaces as it can be easily installed and switched between normally closed and open operation simply by reversing its float.

The device operates efficiently within harsh industrial environments with operating temperatures from -40°C to 66°C and can withstand pressures up to 10 bar. Its compact size and NPT thread mounting offer flexibility in various installation scenarios, ensuring dependable performance.

The LS-3 Series float switch complies with crucial standards and approvals such as CE, CSA, UL certifications, E45168, EU directive 2011/65/EC for RoHS compliance, and NSF 169, underscoring its quality and safety for industrial and commercial applications.

This product is suitable for automation control gear, liquid level sensing in HVAC systems, water treatment plants, and other industrial process control applications. Its polypropylene housing ensures chemical resistance and durability necessary for long-term usage in demanding environments.

The vertical mounting float switch includes a 610 mm cable for convenient connection. Switch output is SPST normally open with float reversible for normally closed operation. Housing material is polypropylene providing robustness and chemical resistance.

Maximum pressure rating is 10 bar, suitable for medium pressure environments. Operating temperature range covers from -40°C to 66°C. Meets multiple international standards and approvals ensuring reliability and safety. Ideal for liquid level sensing in shallow tanks, HVAC, water treatment, and automation systems.
