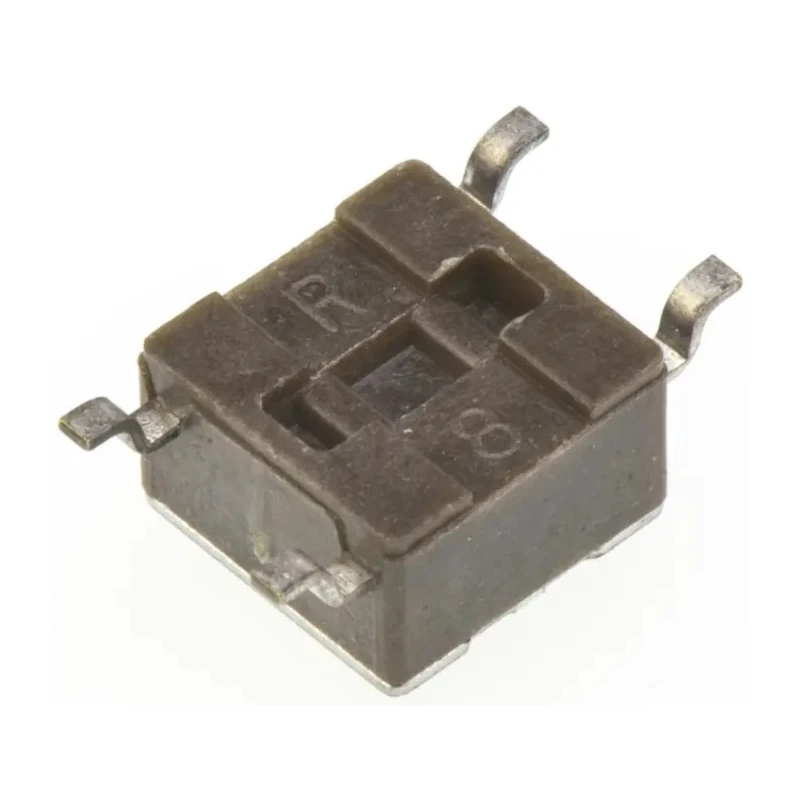

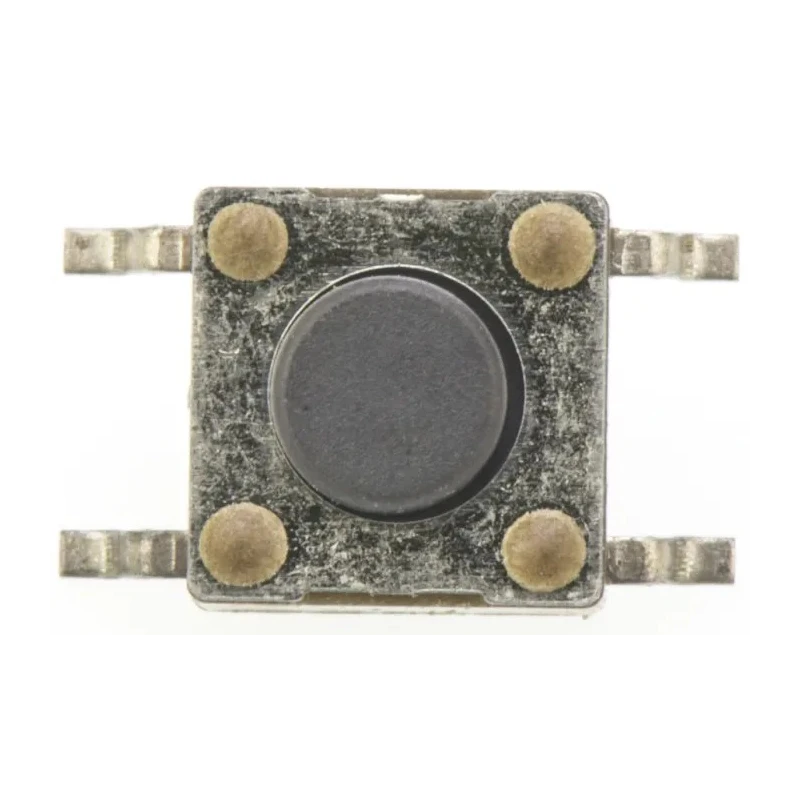

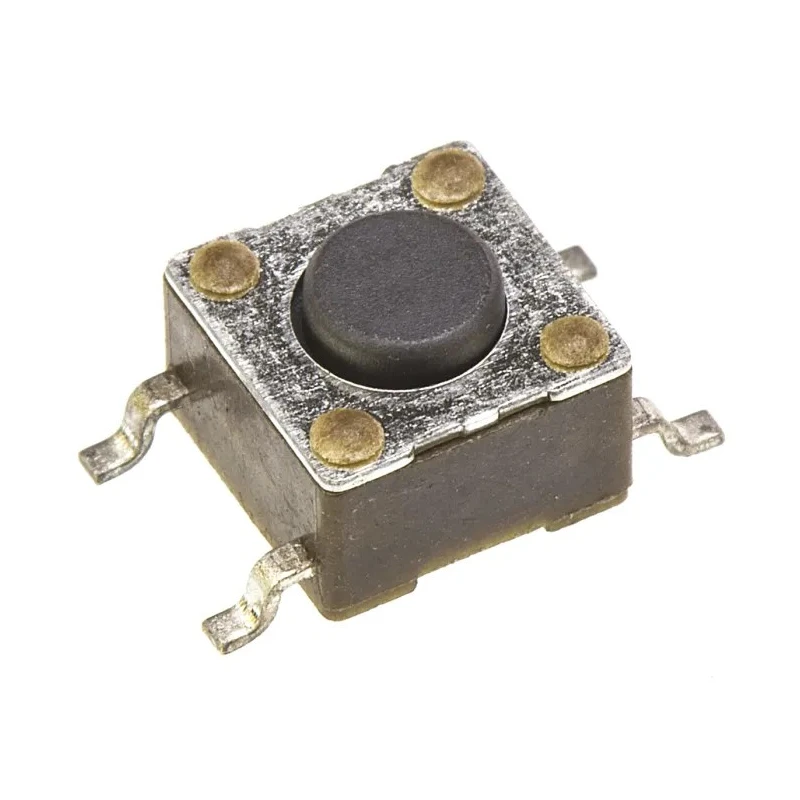

TE Connectivity IP67 Black Tactile Switch Button 0.7 mm Actuator Length SPST 50mA 12V AC 115V DC Surface Mount 2-1437565-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 4.3mm |
| Length | 6mm |
| IP Rating | IP67 |
| Width | 6mm |
| Mount Type | Surface Mount |
| Series | FSM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPDT |
| Minimum Operating Temperature | -35°C |
| Terminal type | Surface Mount |
| Standards/Approvals | China RoHS 2, EU ELV, EU REACH, EU RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Length | 0.7mm |
| Contact DC Voltage | 115V dc |
| Actuator Style | Button |
| Switch Contact Current | 50mA |
| Operating Force | 1.57N |
| Mechanical Life | 100000Cycles |
| Contact AC Voltage | 12V ac |
Key Features
- The switch supports a contact current of 50mA and operates at 12 V AC and 115 V DC voltages.
- Surface mount terminal type with momentary switch operation ensures compact PCB integration.
- Compact dimensions of 6 mm length, 6 mm width, and 4.3 mm height suit space-constrained designs.
- Operating temperature range from -35°C to 85°C and mechanical life of 100,000 cycles.
- Operating force of 1.57 N with durable Nylon 66 housing and copper alloy-silver contacts.
- IP67 rating offers high resistance to dust and water ingress for demanding environments.
- Compliance with China RoHS 2, EU ELV, EU REACH, and EU RoHS standards.
- Ideal for keyboards, keypads, telephones, radios, and general consumer electronics applications.
Product Description
TE Connectivity 2-1437565-7 Tactile Switch Button is a highly reliable component designed for electronic devices requiring precise momentary switch action. This black actuator button features a compact 0.7 mm actuator length with SPST contact configuration, supporting 50mA current and operating voltages of 12 V AC and 115 V DC. The switch is surface mount type, ensuring effective PCB integration in space-constrained designs.
Constructed with a robust Nylon 66 body and high-quality copper alloy-silver contacts, the FSM series tactile switches offer exceptional durability and long mechanical life rated for 100,000 cycles. The switch can operate in harsh environmental conditions between -35°C and 85°C, further protected by an IP67 ingress protection rating that guards against dust and water penetration, making it ideal for industrial and commercial electronic devices.
Its compact dimensions (6 mm x 6 mm x 4.3 mm) and low profile design allow for versatile applications such as keyboards, keypads, telephones, radios, and other consumer electronics. The tactile switch’s operating force of 1.57 N provides consistent user feedback and reliability.
Compact size with 6 mm length and width and 4.3 mm height for space-efficient PCB mounting. IP67 rated for superior resistance against dust and water. Momentary switch operation with SPST contact configuration. Mechanical life rating of 100,000 cycles ensures durability.
Compliant with China RoHS 2, EU ELV, EU REACH, and EU RoHS standards. Actuator color black with button style for standard tactile feedback. Supports 50mA current at 12 V AC / 115 V DC for low power switching needs. Operating temperature range from -35°C to 85°C suitable for various industrial environments.
High-quality materials Nylon 66 housing and copper alloy-silver contacts.
This TE Connectivity tactile switch is a dependable choice for electronic assembly in industrial, telecommunications, consumer electronics, and automation applications. It offers precise actuation and long-term reliability under demanding conditions.
Explore more Tactile Switches and related components in the Electronics & Electricals category on EnvMart for your project and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at 12 V AC and 115 V DC.
It supports a contact current of 50mA.
The switch has compact dimensions of 6 mm in length, 6 mm in width, and 4.3 mm in height.
The actuator length is 0.7 mm.
The mechanical life is rated for 100,000 cycles.
It operates within a temperature range of -35°C to 85°C.
The switch has an IP67 rating, providing high resistance to dust and water ingress.
It features a surface mount terminal type for effective PCB integration.
The operating force is 1.57 N.
It complies with China RoHS 2, EU ELV, EU REACH, and EU RoHS standards.
It is suitable for use in keyboards, keypads, telephones, radios, and general consumer electronics applications.
It is constructed with a Nylon 66 housing and copper alloy-silver contacts.
