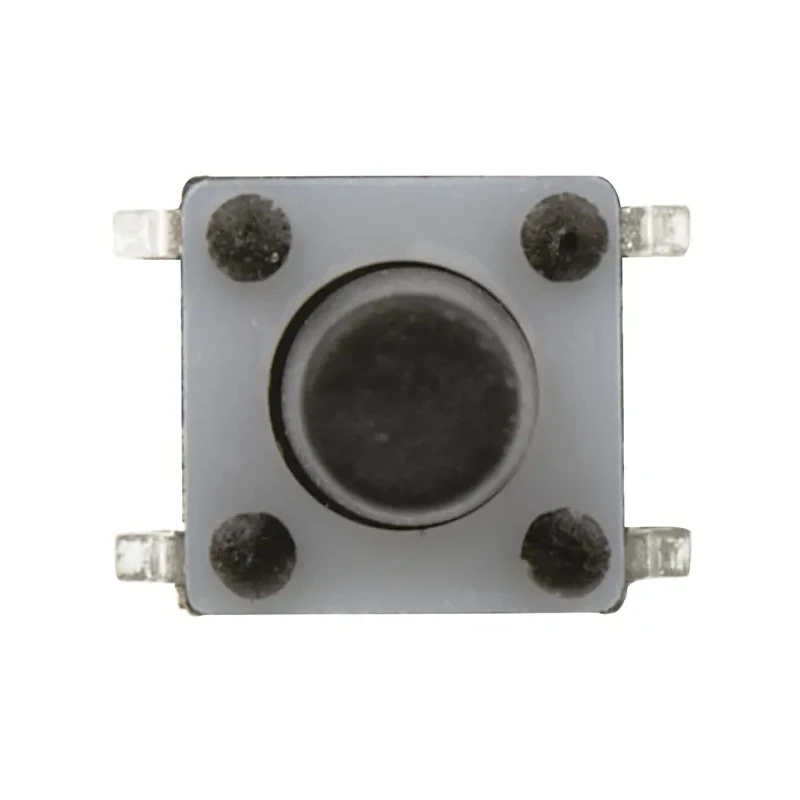

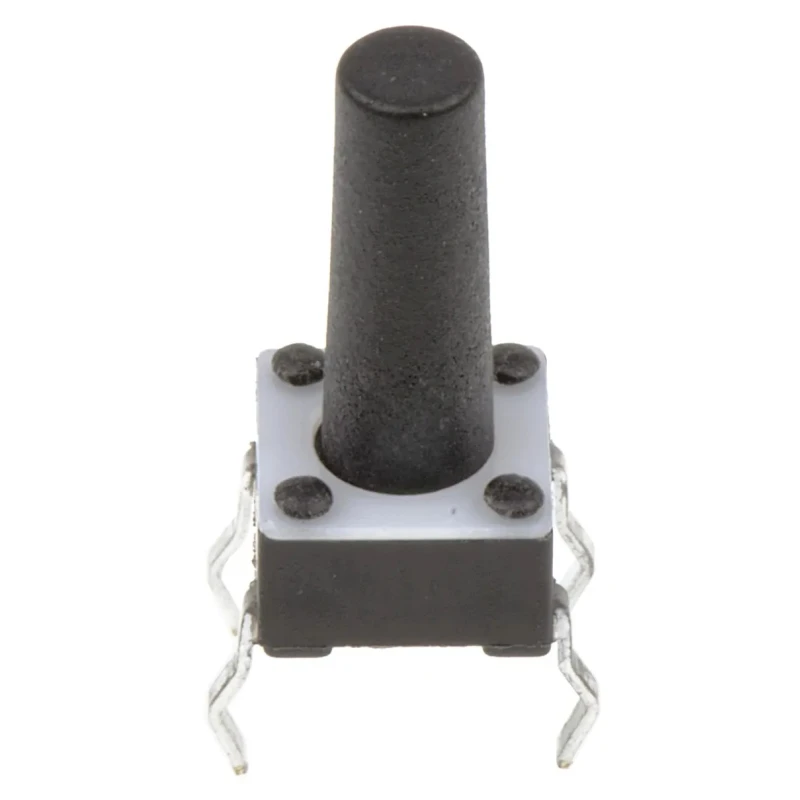

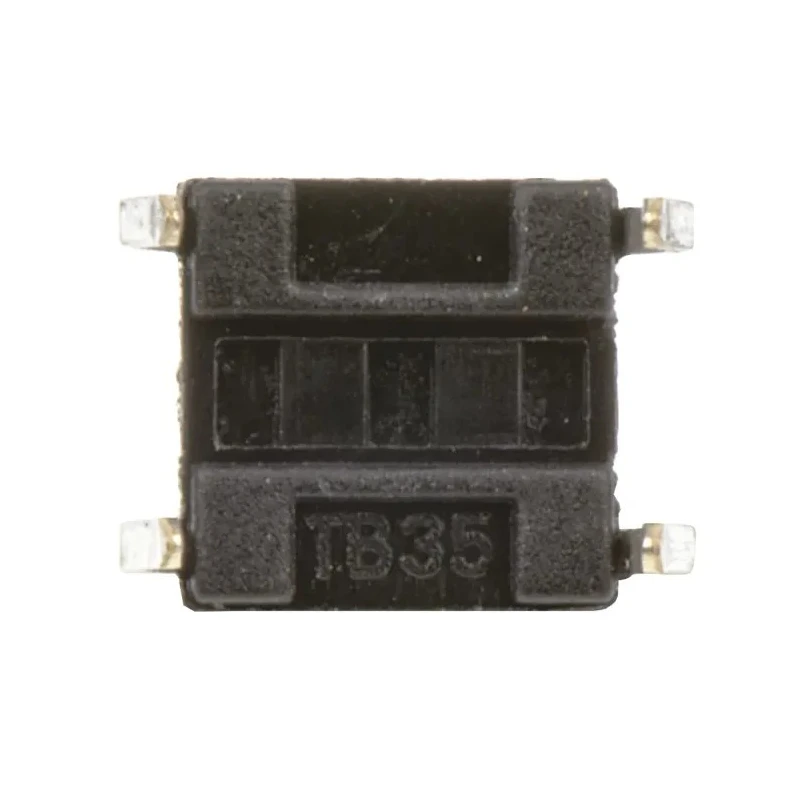

TE Connectivity IP67 Black Tactile Switch Button 9.4 mm SPST 50mA 24 V dc Surface Mount 2-1825910-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 7.8mm |
| Length | 5.99mm |
| IP Rating | IP67 |
| Width | 5.99mm |
| Mount Type | Surface Mount |
| Series | FSM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Minimum Operating Temperature | -35°C |
| Terminal type | Solder |
| Standards/Approvals | EU ELV, China RoHS 2, EU RoHS, EU REACH |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Length | 9.4mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Button |
| Actuator Orientation | Top |
| Switch Contact Current | 50mA |
| Operating Force | 1.569N |
| Mechanical Life | 100000Operations |
| Black Tactile Switch, SPST 50 mA 9.4mmBrand | TE Connectivity |
Key Features
- This tactile switch features a SPST contact configuration suitable for low current switching up to 50mA at 24 V dc.
- The switch actuator is black with a 9.4 mm length and top orientation designed as a button for easy operation.
- The device is surface mount type with solder terminals, allowing easy PCB integration.
- Energized for up to 100,000 mechanical operations with an operating force of approximately 1.57 N.
- Robust housing made from Nylon 66 material ensures protection with an IP67 ingress rating.
- Operating temperature range from -35°C up to +85°C supports diverse environmental applications.
- Compliant with EU ELV, China RoHS 2, EU RoHS, and EU REACH standards for environmental and safety requirements.
- Ideal for use in keyboards, keypads, telephones, radios, and various consumer electronics for circuit control and actuation.
Product Description
TE Connectivity 2-1825910-7 tactile switch button is engineered for high reliability and durability with a compact form factor, suitable for industrial, electronic, and consumer device applications. This black actuator switch features a Single Pole Single Throw (SPST) contact configuration designed for momentary operation, ideal for circuit closure on PCBs.
The switch features a compact 9.4 mm actuator length and a footprint of 5.99 mm by 5.99 mm, with a height of 7.8 mm. Its surface mount design with solder terminals facilitates integration into modern circuit assemblies. The robust Nylon 66 housing and copper alloy-silver moving contact materials combine for long-lasting mechanical performance, rated for 100,000 operations.
With an operating force of 1.569 N and an IP67 ingress protection rating, this tactile switch withstands challenging environments including dust and water exposure. Electrical specifications support switching of low current loads up to 50mA at 24 V dc, meeting specifications for various low-power consumer and industrial electronics.
The switch complies with strict environmental and safety standards including EU ELV, China RoHS 2, EU RoHS, and EU REACH, ensuring regulatory conformity for multiple markets. Its actuation style as a top button and momentary operation make it suitable for keyboards, keypads, telephones, radios, and general consumer electronics requiring reliable push-button switch functions.
This tactile switch meets durable industrial design standards and offers reliable switching in demanding applications. It is widely used across multiple sectors including industrial automation, telecommunication devices, consumer electronics, and PCB assemblies.
Choose TE Connectivity 2-1825910-7 for highly reliable, IP67 rated tactile switching with compact size and excellent mechanical life. Explore more Tactile Switches and related components in the Electronics & Electricals category at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This tactile switch features a Single Pole Single Throw (SPST) contact configuration, designed for momentary operation.
It supports a maximum switching current of 50mA at a contact DC voltage of 24V.
The operating temperature range is from -35°C to +85°C, making it suitable for diverse environmental conditions.
The switch has a height of 7.8mm, length of 5.99mm, and width of 5.99mm.
This model has an IP67 ingress protection rating, ensuring it is dust-tight and can withstand water immersion.
It is rated for up to 100,000 mechanical operations, ensuring long-lasting performance.
This tactile switch is designed for surface mounting with solder terminals for easy PCB integration.
The actuation style is a top-oriented button, designed for easy operation.
The housing is made from Nylon 66, and the moving contacts are copper alloy with silver plating.
It complies with EU ELV, China RoHS 2, EU RoHS, and EU REACH standards for environmental and safety requirements.
It is suitable for use in keyboards, keypads, telephones, radios, and various consumer electronics for circuit control and actuation.
