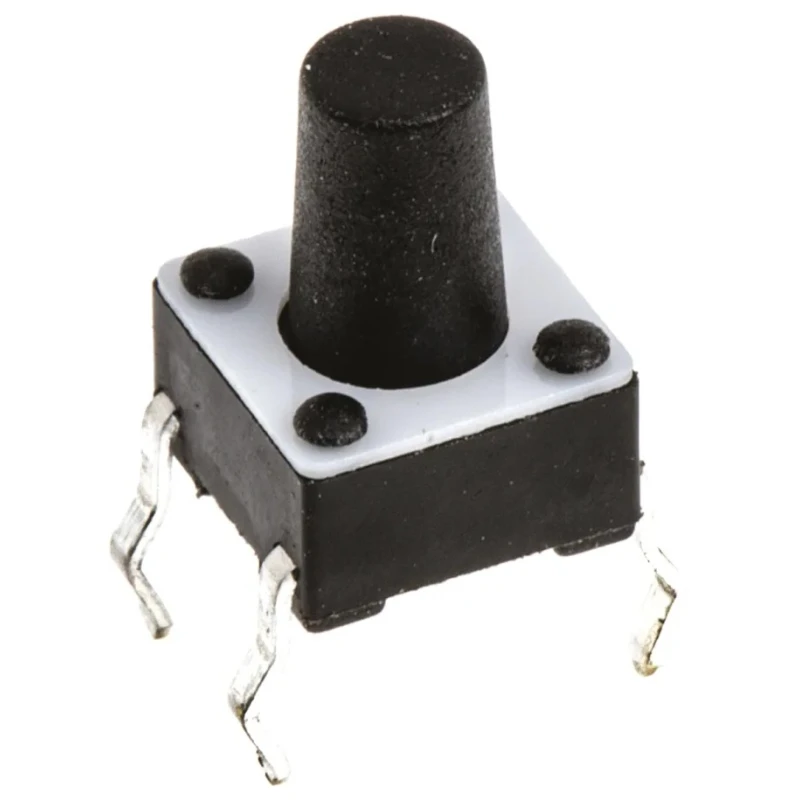

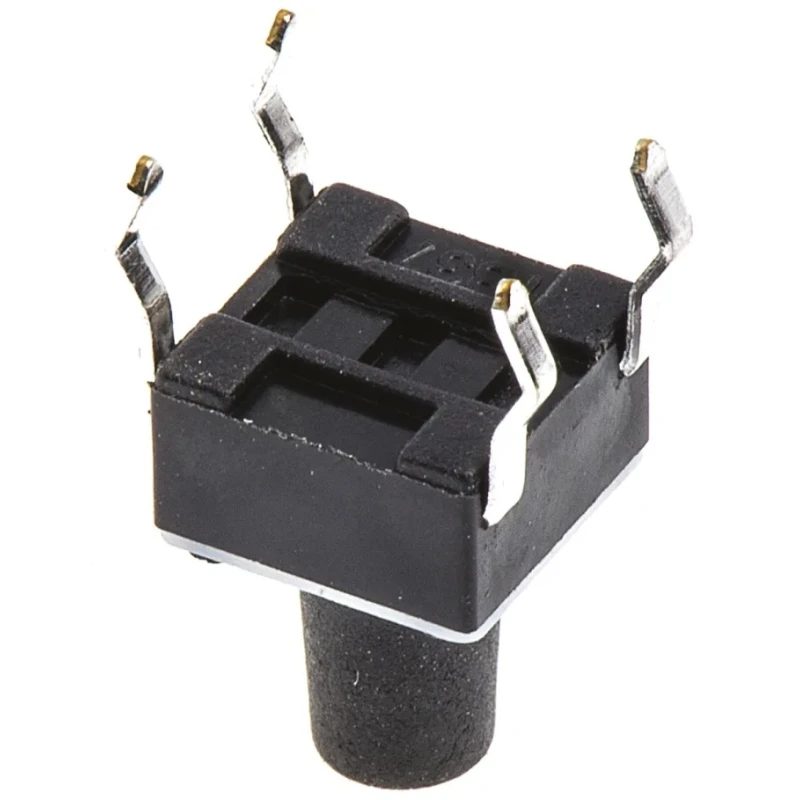

TE Connectivity IP67 Black Tactile Switch Button 4.9 mm SPST 50mA 24 V dc Through Hole 3-1825910-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 8.51mm |
| Length | 6mm |
| IP Rating | IP67 |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | FSM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Minimum Operating Temperature | -35°C |
| Terminal type | Solder |
| Standards/Approvals | EU REACH, China RoHS 2, EU ELV, EU RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Length | 4.9mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Button |
| Actuator Orientation | Top |
| Switch Contact Current | 50mA |
| Operating Force | 1.569N |
| Mechanical Life | 100000Operations |
Key Features
- Constructed from robust Nylon 66 material for enhanced durability.
- Features a black button actuator with a 4.9 mm length for tactile feedback.
- Single Pole Single Throw (SPST) contact configuration supports 50mA at 24 V dc.
- Operating temperature range from -35°C to 85°C suitable for varied environments.
- Designed for momentary switch operation with a mechanical life of 100,000 cycles.
- Compact footprint with dimensions 6 mm length, 6 mm width, and 8.51 mm height.
- Rated IP67 protection ensuring dust tight and water ingress resistance.
- Ideal for use in keyboards, keypads, telephones, radios, and consumer electronics.
Product Description
TE Connectivity 3-1825910-5 tactile switch button is a high-quality SPST momentary switch designed for through-hole PCB mounting. It features a compact black actuator button measuring 4.9 mm in length, enclosed in a durable Nylon 66 housing providing IP67 protection. This switch supports a contact current of 50mA at 24 V dc and operates reliably over a temperature range from -35°C to 85°C, offering excellent performance and longevity with a mechanical life of 100,000 operations.
The tactile feedback is optimized with an operating force of approximately 1.569N and a travel distance of 0.25 mm, making it suitable for varied electronic applications. The switch has a low profile and a small PCB footprint with dimensions 6 mm by 6 mm by 8.51 mm, allowing easy integration into compact electronic devices.
This component is widely used in keyboards, keypads, telephones, radios, and general consumer electronics, providing reliable circuit closing functionality. Its robust build and IP67 rating make it suitable for use in industrial, commercial, and consumer products where environmental protection is essential.
Durable Nylon 66 housing with copper alloy-silver moving contact. Momentary switch operation for precise control. Supports 50mA contact rating at 24 V dc. Compact size and low profile for space-efficient PCB design. IP67 rated for dust and water resistance.
Reliable tactile feedback with 1.569N operating force. Suitable for industrial, laboratory, and consumer electronic applications.
This TE Connectivity FSM series tactile switch ensures quality and performance for all your switching needs. Explore the extensive range of Tactile Switches on EnvMart for additional options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This tactile switch features a Single Pole Single Throw (SPST) contact configuration.
The maximum operating temperature for this model is 85°C.
The mechanical life of this switch is rated at 100,000 operations.
The dimensions of this tactile switch are 6 mm in length, 6 mm in width, and 8.51 mm in height.
The operating force required for this switch is approximately 1.569N.
This switch has an IP67 rating, ensuring it is dust tight and resistant to water ingress.
The contact current rating for this model is 50mA at 24 V dc.
This switch is designed for through-hole mounting on a PCB.
The switch features a durable Nylon 66 housing and a copper alloy-silver moving contact.
The minimum operating temperature for this switch is -35°C.
This tactile switch is suitable for use in keyboards, keypads, telephones, radios, and general consumer electronics.
This switch complies with EU REACH, China RoHS 2, EU ELV, and EU RoHS standards.
