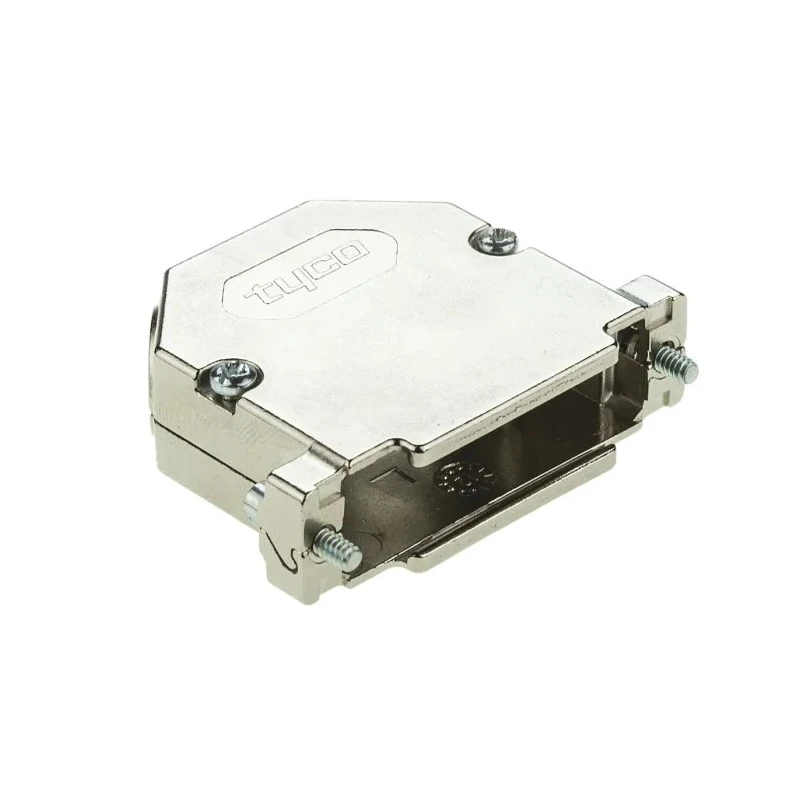

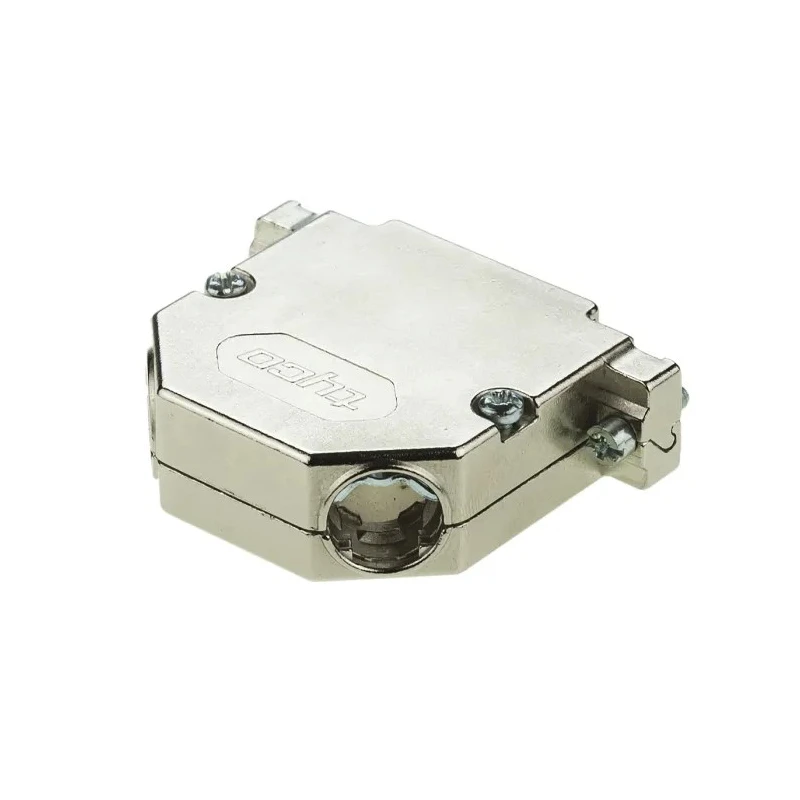

TE Connectivity AMPLIMITE HD-20 Series Gadolinium Zinc Alloy Angled D-Sub Backshell 25 Way 1534809-1
Specifications
| Country of Origin | India |
|---|---|
| Display | screen |
| Brand | TE Connectivity |
| Colour | Silver |
| Orientation | Angled |
| Housing Material | Gadolinium Zinc Alloy |
| Series | AMPLIMITE HD-20 |
| Standards/Approvals | RoHS |
| Number of Contacts | 25 |
| Connector Type D | D-Sub Backshell |
| D-Sub Shell Size | B |
| Housing Plating | Metallised |
Key Features
- Constructed from gadolinium zinc alloy for durable housing.
- Angled orientation facilitates cable routing and assembly.
- Metallised housing plating ensures shielding and corrosion resistance.
- Features 25 contacts suitable for robust D-sub connections.
- Complies with RoHS standards for environmental safety.
- Dual entry diecast backshell design supports 'daisy-chaining' in bus systems.

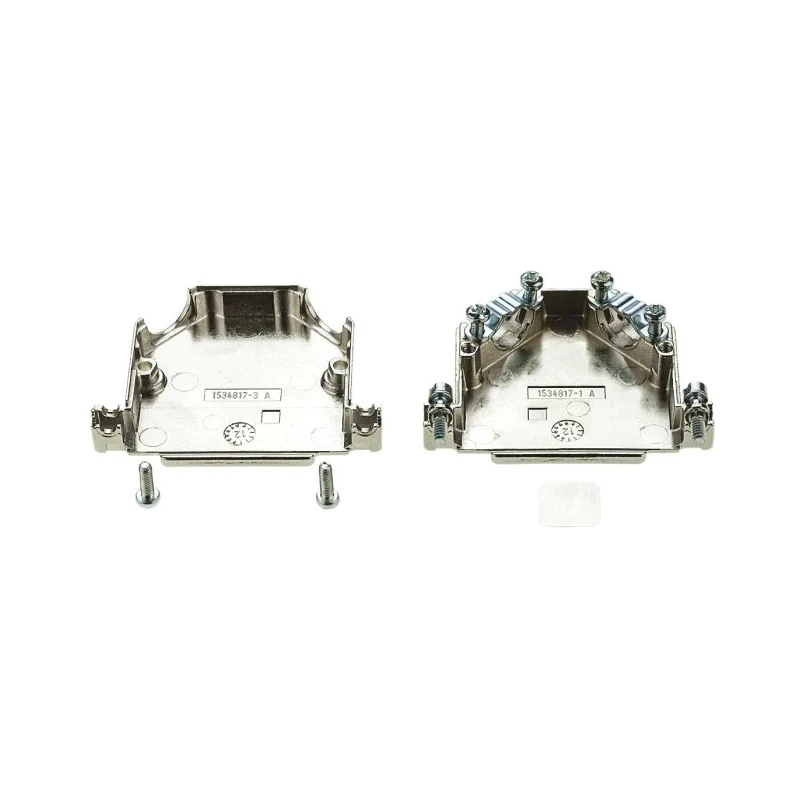

- Includes a blanking plate to maintain screening integrity at cable run ends.
- Compatible with cable diameters ranging from 4.8mm to 11mm.
Product Description
TE Connectivity 1534809-1 AMPLIMITE HD-20 Series Gadolinium Zinc Alloy Angled D-Sub Backshell 25 Way provides robust mechanical and electrical shielding for industrial and electronic connector assemblies. Crafted from high-quality gadolinium zinc alloy with a metallised plating, this angled backshell enhances cable protection and strain relief in demanding environments.
The dual entry diecast construction enables efficient cable management, especially in 'daisy-chained' bus systems commonly found in industrial automation and manufacturing equipment. Its design allows quick installation and maintains consistent screening integrity, supported by the included blanking plate for cable run terminations.
It features 25 contacts within a size B D-sub shell, suitable for moderate pin count signal and data applications. The angled orientation facilitates space-saving connector layouts and optimized cable routing in complex assemblies.
The housing supports cable diameters from 4.8mm to 11mm, enabling compatibility with a range of cable specifications. The backshell fastening screws are thread forming, with unthreaded holes prepared for secure assembly.
Compliant with RoHS environmental standards, this backshell is ideal for use in industrial, manufacturing, electronics, and power connector applications where reliability and shielding performance are critical.
Durable gadolinium zinc alloy housing with metallised plating for enhanced shielding. Dual entry angled backshell design for flexible cable routing. Supports 25 contacts in a B size D-sub shell configuration. Includes blanking plate for screening integrity at cable ends.
Suitable for cable diameters of 4.8 to 11 mm, except 9-way variant limited to 4.8 to 9 mm. Thread forming screw holes for reliable fastening. Meets RoHS conformity requirements. Widely used in industrial bus systems and electronic assemblies.
Offers excellent mechanical protection and electromagnetic interference shielding. Ensures durable and stable connector assembly in demanding applications. Explore the range of TE Connectivity AMPLIMITE connectors at EnvMart for integrated electrical and electronic components that support your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The housing is constructed from gadolinium zinc alloy, which provides enhanced mechanical protection and shielding.
This model supports 25 contacts within a size B D-sub shell configuration.
The backshell features an angled orientation, which facilitates cable routing and assembly.
It is compatible with cable diameters ranging from 4.8mm to 11mm, except for the 9-way variant which is limited to 4.8mm to 9mm.
Yes, it complies with RoHS standards for environmental safety.
The housing features metallised plating, which enhances shielding and corrosion resistance.
The blanking plate is included to maintain screening integrity at the cable run ends.
It has a dual entry diecast design that supports 'daisy-chaining' in bus systems, allowing for efficient cable management.
The country of origin for this backshell is India.
It is widely used in industrial, manufacturing, electronics, and power connector applications where reliability and shielding performance are critical.
The thread forming screw holes provide reliable fastening for secure assembly of the backshell.
This backshell is part of the AMPLIMITE HD-20 Series by TE Connectivity.
