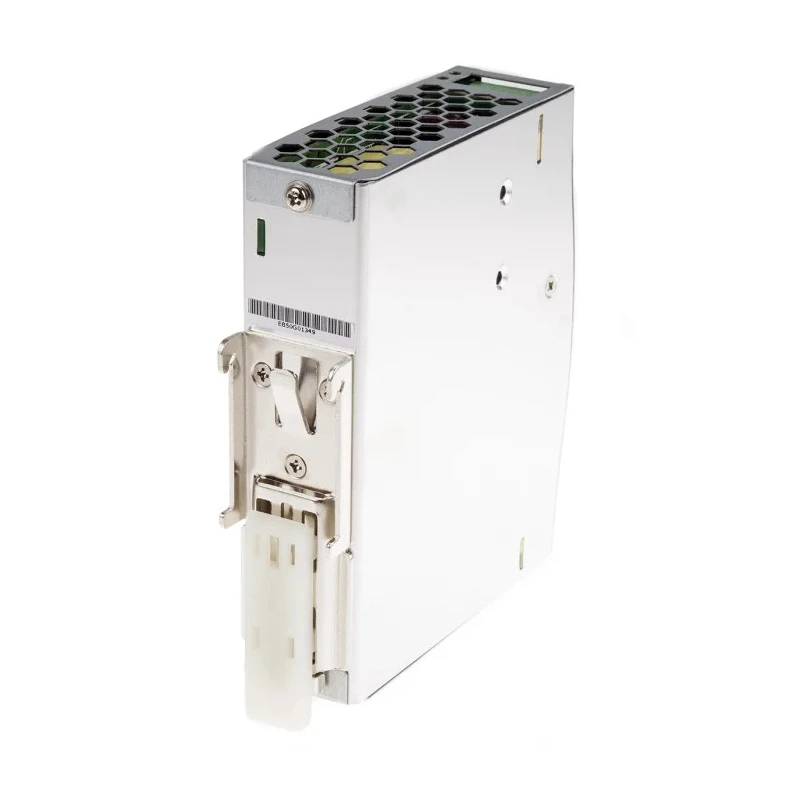

MEAN WELL SDR Series 75W 55V DC 1.6A Switched Mode DIN Rail Power Supply SDR-75-48
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 75W |
| Height | 125mm |
| Model | SDR-75-48 |
| Depth | 102mm |
| Width | 102mm |
| Series | SDR |
| Output Current | 1.6A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Standards/Approvals | TUV EN 609501, UL, RoHS |
| Maximum Output Voltage | 55V dc |
| Minimum Input Voltage | 88V ac |
Key Features
- Compact design suitable for TS-35/7.5 and TS-35/15 DIN rail mounting.
- Wide input voltage range from 88V to 264V AC for versatile power sources.
- Multiple built-in protections including short circuit, overload, over voltage, and over temperature.
- Cooling achieved through free air convection without requiring fans.
- Compliance with industrial standards including UL 508, TUV EN 60950-1, and RoHS.
- High efficiency up to 90% reducing energy loss and heat dissipation.
- Ideal for industrial automation, semiconductor fabrication, and electro-mechanical apparatus.
- Can operate reliably between -30°C and 70°C ambient temperatures.
Product Description
MEAN WELL SDR-75-48 is an industrial-grade switched mode DIN rail power supply delivering 75 watts of power with a 55V DC output at 1.6 amperes. Designed for efficient and reliable operation, it features input compatibility from 88V to 264V AC and can be mounted on standard TS-35/7.5 or TS-35/15 DIN rails, making it an ideal solution for compact industrial control cabinets.
This power supply boasts a slim profile measuring 125mm in height, and 102mm in both width and depth, allowing effective space utilization in electrical panels. Constructed with a robust metal housing to enhance heat dissipation, it achieves high efficiency of 90%, minimizing energy waste and thermal load.
Multiple protection mechanisms safeguard the device and the connected equipment, including short circuit, overload, over voltage, and over temperature protections. The cooling system is passive, relying on free air convection for silent and maintenance-free operation.
Certified to meet strict industrial standards such as UL 508 for industrial control equipment, TUV EN 60950-1, and RoHS, the SDR-75-48 ensures compliance and reliability for demanding applications. It undergoes a 100% full load burn-in test to guarantee performance.
This DIN rail power supply is widely employed in industrial automation systems, semiconductor manufacturing equipment, factory automation, and electro-mechanical apparatus. Its ability to operate within a broad ambient temperature range from -30°C to 70°C provides flexibility across diverse environmental conditions.
Compact design allows easy installation on standard DIN rails. Wide AC input voltage range supports various electrical environments. Multiple protective features ensure operational safety and longevity. Energy efficient with a high efficiency rating of 90%.
Robust construction suitable for industrial applications. Silent operation due to convection cooling method. Certified by major safety and quality standards. Suitable for powering motors, sensors, relays, and other control devices.
Discover more industrial power solutions and MEAN WELL products in the Power Supplies category at EnvMart, your trusted source for high-quality electronic components.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SDR-75-48 provides an output voltage of 55V DC and an output current of 1.6A.
It accepts an input voltage range from 88V to 264V AC.
This model measures 125mm in height, 102mm in width, and 102mm in depth.
The maximum operating temperature is 70°C, while the minimum is -30°C.
It includes protections against short circuit, overload, over voltage, and over temperature.
Cooling is achieved through free air convection, eliminating the need for fans.
It complies with UL 508, TUV EN 60950-1, and RoHS standards.
The SDR-75-48 has one output.
It is a switched mode power supply designed for DIN rail mounting.
It is suitable for industrial automation, semiconductor fabrication, and electro-mechanical apparatus.
This model achieves a high efficiency rating of up to 90%.
It is designed for mounting on standard TS-35/7.5 or TS-35/15 DIN rails.
