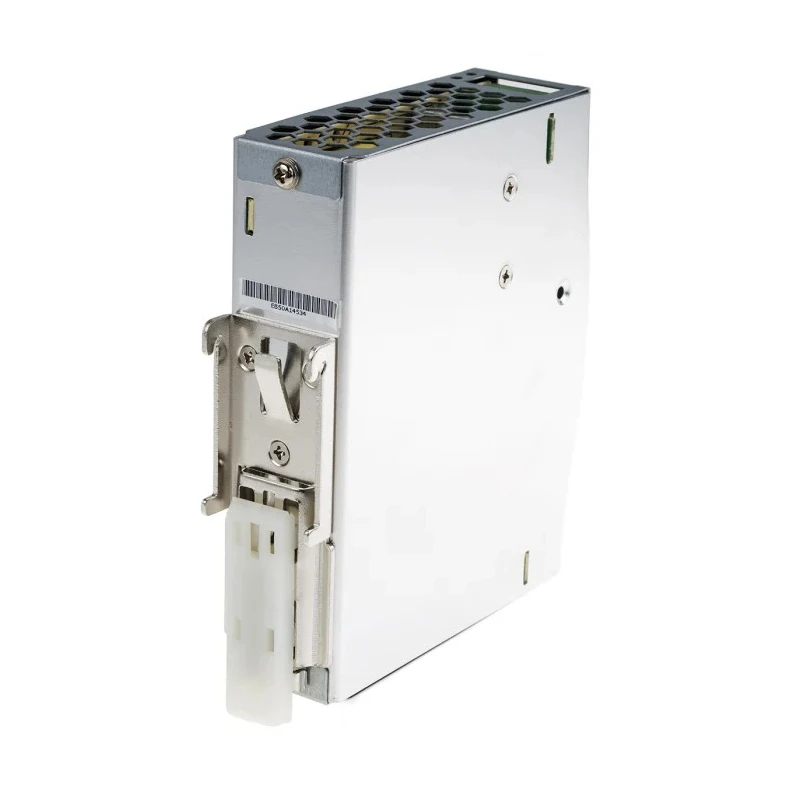

MEAN WELL Switched Mode DIN Rail Power Supply 28V DC 3.2A Output 75W EDR-75-24
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 75W |
| Efficiency | 85.5% |
| Height | 125mm |
| Model | EDR-75-24 |
| Depth | 102mm |
| Width | 32mm |
| Series | EDR |
| Output Current | 3.2A |
| Maximum Operating Temperature | 60°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Standards/Approvals | RoHS, UL, TUV EN 609501 |
| Maximum Output Voltage | 28V dc |
| Minimum Input Voltage | 90V ac |
Key Features
- Suitable for universal AC input voltage with full range operation.
- Incorporates multiple protection features including short circuit, overload, over voltage, and over temperature protection.
- Compact design allows installation on standard TS-35/7.5 or 15 DIN rails.
- Cooling is achieved through free air convection without any fans.
- Complies with UL 508 industrial control equipment standards and RoHS directive.
- Designed for reliable operation in industrial environments with operating temperature ranging from -20°C to 60°C.
- Efficiency rating of approximately 85.5% enhances energy savings.
- Metal housing construction supports improved power dissipation.
Product Description
MEAN WELL EDR-75-24 is a switched mode power supply designed for DIN rail mounting that delivers a maximum output of 28V DC at 3.2A with 75W power capacity. It supports universal AC input voltage ranging from 90V to 264V AC and operates on a single electrical phase.
The power supply is engineered to meet industrial standards such as UL 508 and EN 60950-1 with RoHS compliance, ensuring safe and reliable performance. It features multiple protection mechanisms including short circuit, overload, over voltage, and over temperature safeguards, enhancing system durability.

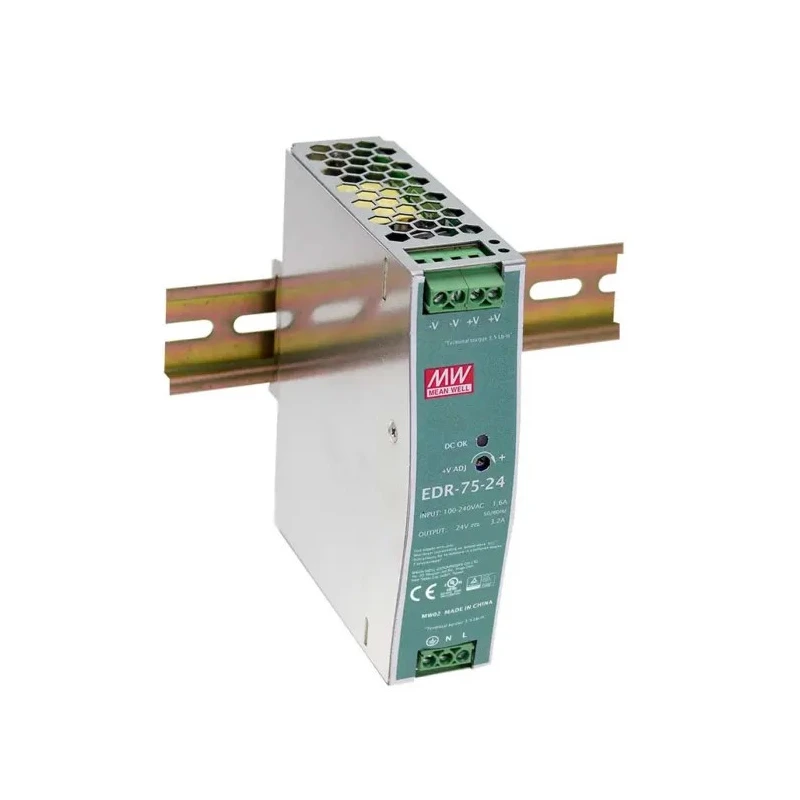

The device is compact, measuring 125mm in height, 32mm in width, and 102mm in depth, and is installed easily on standard TS-35/7.5 or TS-35/15 DIN rails, which makes it ideal for space saving in control cabinets. The metal housing aids thermal management by improving power dissipation, allowing convection cooling without the need for fans.
This power supply operates efficiently with an efficiency of around 85.5% under typical loads and is rated to perform within a temperature range of -20°C to 60°C. It also undergoes a rigorous 100% full load burn-in test to guarantee longevity and performance.
MEAN WELL EDR series is widely used in industrial and manufacturing environments, suitable for machine industrial control systems, semiconductor fabrication equipment, factory automation, and electro-mechanical apparatus that require a stable DC power source.
Universal full range AC input ensures compatibility across different regions. Comprehensive protection features increase device safety. Compact and slim design for efficient space management. Fanless cooling reduces noise and mechanical failures.
Compliance with industrial standards ensures reliability and safety. Efficient operation helps reduce energy consumption. Robust metal enclosure improves heat dissipation. Wide operating temperature range suits diverse industrial conditions.
Designed specifically for DIN rail mounting systems. Explore more power supply solutions in the DIN Rail Power Supplies category at EnvMart for industrial, manufacturing, and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 75W, delivering 28V DC at 3.2A.
This unit measures 125mm in height, 32mm in width, and 102mm in depth.
It has an efficiency rating of approximately 85.5%, enhancing energy savings.
The operating temperature range is from -20°C to 60°C.
It incorporates multiple protection features including short circuit, overload, over voltage, and over temperature protection.
Cooling is achieved through free air convection without the need for fans.
It is designed for installation on standard TS-35/7.5 or TS-35/15 DIN rails.
It complies with UL 508 industrial control equipment standards and RoHS directive.
This model provides a single output.
It operates on a single electrical phase.
The country of origin for this power supply is China.
