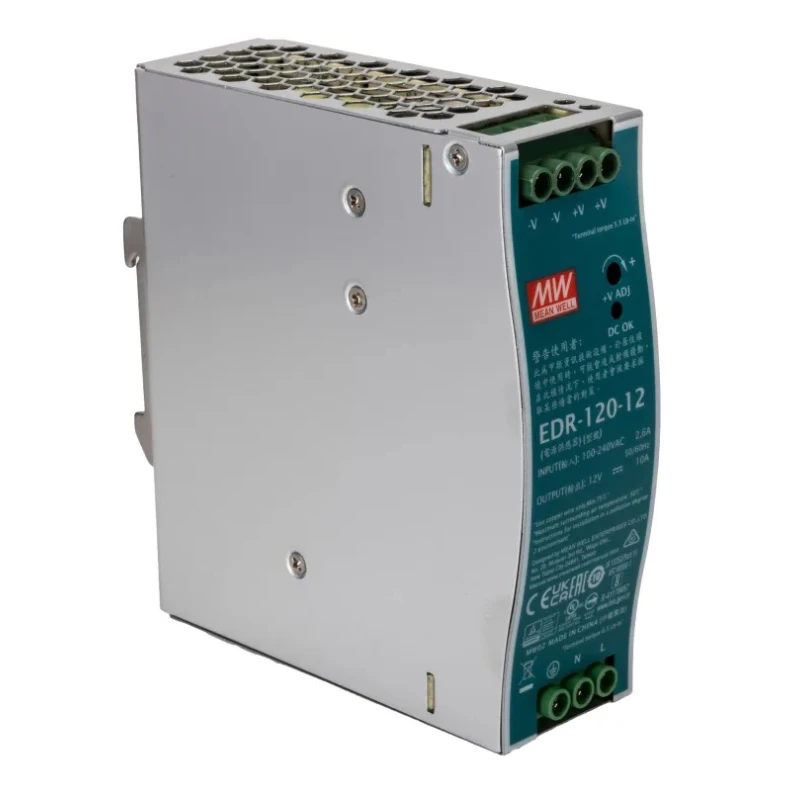

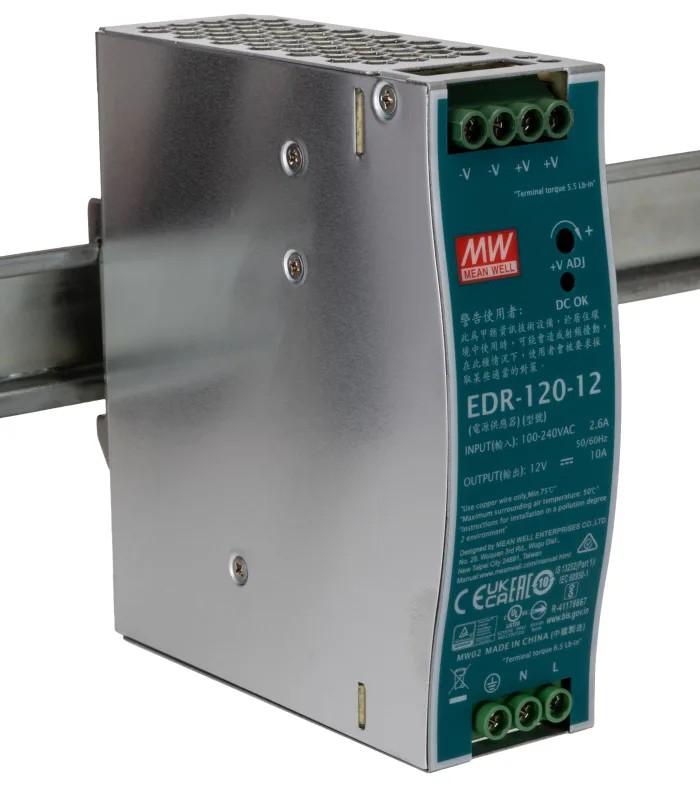

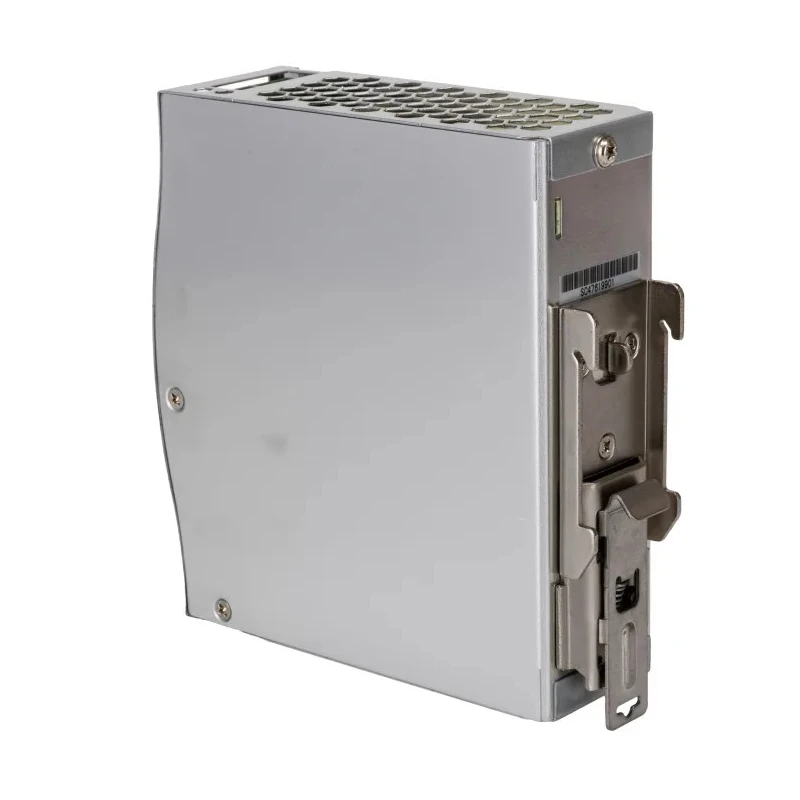

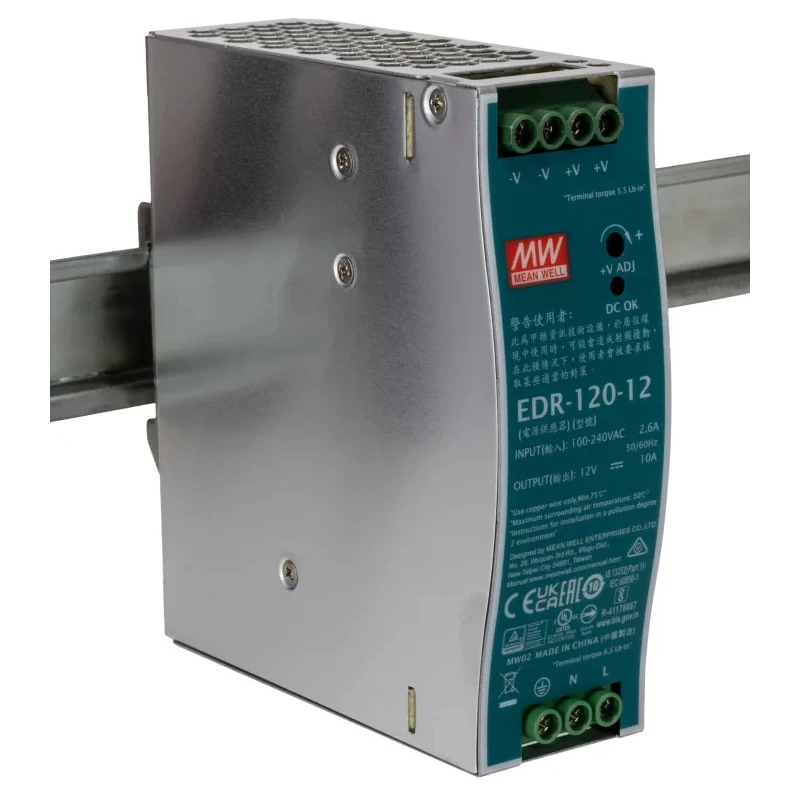

RS PRO Mean Well EDR Switched Mode DIN Rail Power Supply 12 V, 10 A, 120 W, 1 Phase, AC Input 90-264 V, DC Output EDR-120-12
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Power | 120W |
| Height | 125mm |
| Model | EDR-120-12 |
| Depth | 114mm |
| Width | 40mm |
| Series | EDR |
| Output Current | 10A |
| Maximum Operating Temperature | 60°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Standards/Approvals | RoHS, TUV EN 609501, UL |
| Maximum Output Voltage | 14V dc |
| Minimum Input Voltage | 90V ac |
Key Features
- The power supply supports universal AC input with a range of 90 to 264 V AC.
- It features a switched mode design with single output and 1-phase electrical phase.
- Operating temperature is from -20°C to 60°C allowing reliable performance in diverse environments.
- The unit includes protections against short circuit, overload, over voltage, and over temperature.
- It is cooled by free air convection and can be mounted on standard DIN rails (TS-35/7.5 or TS-35/15).
- The metal housing design enhances heat dissipation and durability.
- Compliance with RoHS and certifications including TUV EN 60950-1 and UL supports industrial safety standards.
- Suitable for machine industrial control systems, factory automation, and semiconductor equipment.
Product Description
Mean Well EDR-120-12 is a switched mode DIN Rail Power Supply providing 12 V DC output at 10 A and total 120 W power, with an AC input voltage range of 90 to 264 V. Designed to operate reliably between -20°C and 60°C, it suits extensive industrial environments. The unit’s compact dimensions allow installation on TS-35 DIN rails, saving space inside control cabinets.
This power supply includes robust protections such as short circuit, overload, over voltage, and over temperature safeguards, ensuring operational safety and reliability. It features a metal housing to improve power dissipation, enabling convection cooling without fans.
Compliant with international standards including RoHS, TUV EN 60950-1, and UL approval, the EDR series meets industrial immunity requirements as per EN61000-6-2 (EN50082-2). Suitable for use in machine control systems, factory automation, semiconductor fabrication, and other electro-mechanical applications, it is ideal for powering sensors, motors, actuators, solenoids, and relays.
The universal AC input supports single-phase power systems, simplifying integration into various power infrastructures. The DIN rail mounting system accelerates installation and organization of power supplies within wall boxes or limited spaces.
The power supply supports universal AC input with a range of 90 to 264 V AC. It features a switched mode design with single output and 1-phase electrical phase. Operating temperature is from -20°C to 60°C allowing reliable performance in diverse environments.
The unit includes protections against short circuit, overload, over voltage, and over temperature. It is cooled by free air convection and can be mounted on standard DIN rails (TS-35/7.5 or TS-35/15). The metal housing design enhances heat dissipation and durability.
Compliance with RoHS and certifications including TUV EN 60950-1 and UL supports industrial safety standards. Suitable for machine industrial control systems, factory automation, and semiconductor equipment.
Choose the Mean Well EDR-120-12 for reliable, efficient power supply in demanding industrial and manufacturing applications. Explore additional power supply solutions and industrial electronic components at EnvMart for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The EDR-120-12 provides a DC output voltage of 12 V and an output current of 10 A, with a total power output of 120 W.
This model supports a universal AC input voltage range of 90 to 264 V.
The dimensions of this power supply are 125 mm in height, 114 mm in depth, and 40 mm in width.
The operating temperature range for the EDR-120-12 is from -20°C to 60°C.
This power supply includes protections against short circuit, overload, over voltage, and over temperature.
It is cooled by free air convection, which eliminates the need for fans.
The EDR-120-12 can be mounted on standard DIN rails TS-35/7.5 or TS-35/15.
This model is compliant with RoHS and has certifications including TUV EN 60950-1 and UL.
It is suitable for machine industrial control systems, factory automation, and semiconductor equipment.
This power supply operates on a single-phase electrical system.
The maximum output voltage of this power supply is 14 V DC.
The EDR-120-12 is manufactured in China.
