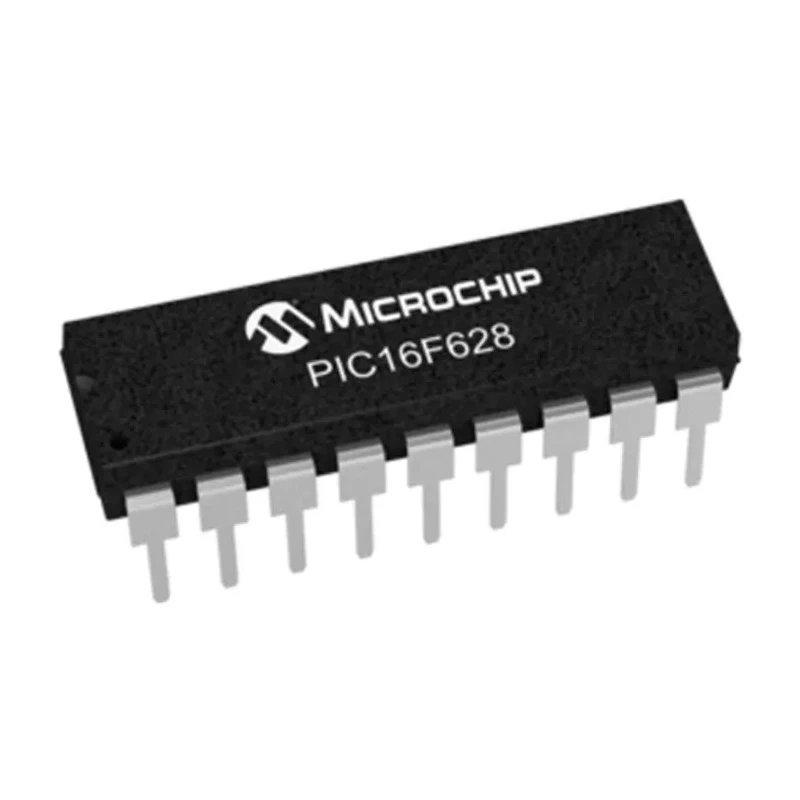

Microchip 8 Bit PIC Microcontroller 3.5kB FLASH 4 MHz USART Mid-Range Core PDIP 18-Pin PIC16F628-04I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.68mm |
| Length | 22.99mm |
| Model | PIC16F628-04I/P |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 224bit |
| Interface Type | USART |
| Standards/Approvals | RoHS |
| Pin Count | 18 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 3V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 4MHz |
| Number of Programmable I/Os | 16 |
| Analogue Comparators | 2 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 0 |
| Program Memory Type | FLASH |
Key Features
- Incorporates a PIC architecture with Mid-Range core suitable for embedded control applications.
- Operates up to 4 MHz clock frequency providing reliable performance.
- Equipped with 3.5kB of FLASH program memory for code storage.
- Features 16 programmable I/O pins with USART interface support.
- Includes multiple timers and two analog comparators for versatile peripheral control.
- Operating voltage range from 3V to 5.5V ensuring flexibility in power supply.
- Compact PDIP through-hole 18-pin package with dimensions approximately 22.99mm length and 6.6mm width.
- Designed for industrial temperature range from -40°C to 85°C for harsh environments.
Product Description
Microchip PIC16F628-04I/P is an 8-bit microcontroller based on Microchip's Mid-Range PIC architecture, featuring a 4 MHz maximum clock frequency and 3.5 KB FLASH program memory. Designed in a compact 18-pin PDIP package, this MCU supports USART communication and includes 16 programmable input/output pins, making it ideal for embedded systems requiring precise control and communication capabilities.
This microcontroller integrates three timers, two 8-bit and one 16-bit, along with two analog comparators, supporting a variety of timing and analog comparison applications. It operates at a minimum supply voltage of 3 V up to 5.5 V and delivers maximum power dissipation of 800 mW, balancing power efficiency and performance.
The device’s robust operation is ensured within a broad temperature range of -40°C to 85°C, suitable for demanding industrial and automotive applications. It supports In-Circuit Serial Programming (ICSP) for convenient code updates and debugging without removing the MCU from the circuit.
Microchip PIC16F628-04I/P complies with RoHS environmental standards, making it suitable for green manufacturing processes. Its compact size (22.99 mm length, 6.6 mm width, and 3.68 mm height) facilitates space-efficient PCB designs.
This MCU is widely used in industrial automation, consumer electronics, and embedded control systems requiring reliable and flexible microcontroller solutions. The 18-pin PDIP form factor simplifies prototype and educational development.
Mid-Range 8-bit PIC architecture with 4 MHz clock speed. 3.5 KB FLASH program memory and 224-bit RAM. USART serial communication interface for robust data exchange. Three timer modules and two analog comparators enhance peripheral control.
Operating voltage from 3 V to 5.5 V with 800 mW max power dissipation. Wide operating temperature range (-40°C to 85°C) for harsh environment use. Compact 18-pin PDIP package, suitable for through-hole mounting. RoHS compliant ensuring environmentally friendly manufacturing.
Explore EnvMart’s extensive catalog for additional Microcontrollers and semiconductor solutions to match your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC16F628-04I/P microcontroller is 4 MHz.
It features a program memory size of 3.5 kB, allowing for adequate code storage for embedded applications.
This unit includes 16 programmable input/output pins, providing flexibility for various applications.
The operating voltage range is from 3 V to 5.5 V, ensuring compatibility with different power supply systems.
It comes in a compact PDIP (Plastic Dual In-line Package) with 18 pins, suitable for through-hole mounting.
The microcontroller operates within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
The PIC16F628-04I/P integrates three timer modules, enhancing its capabilities for timing applications.
Yes, it supports USART (Universal Synchronous Asynchronous Receiver Transmitter) communication for data exchange.
The maximum power dissipation is 800 mW, balancing performance and efficiency.
The dimensions are approximately 22.99 mm in length, 6.6 mm in width, and 3.68 mm in height.
It utilizes FLASH memory for program storage, allowing for reprogramming and updates.
Yes, the PIC16F628-04I/P complies with RoHS environmental standards, suitable for green manufacturing processes.
