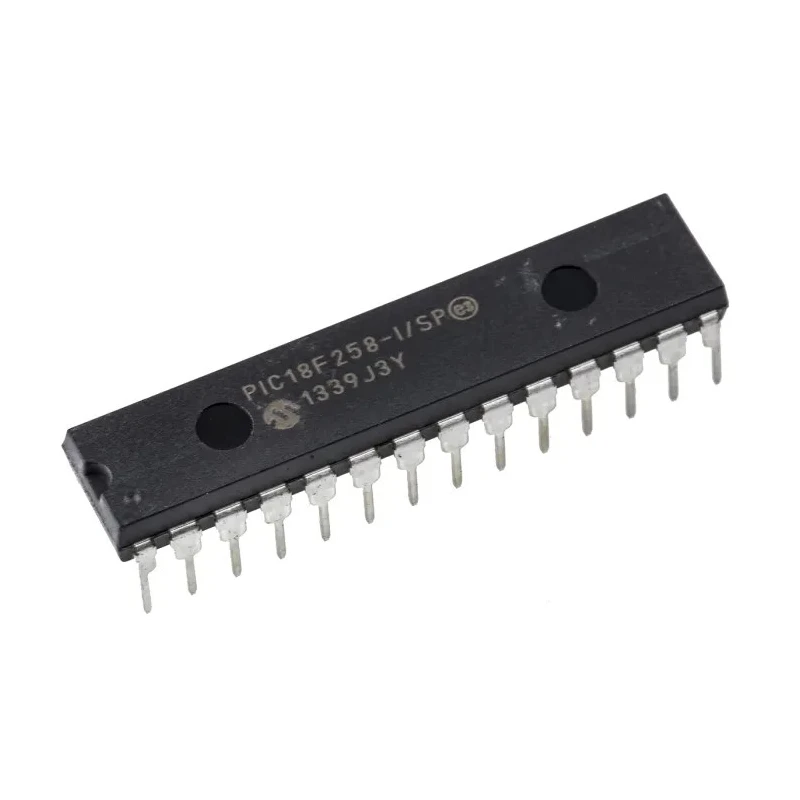

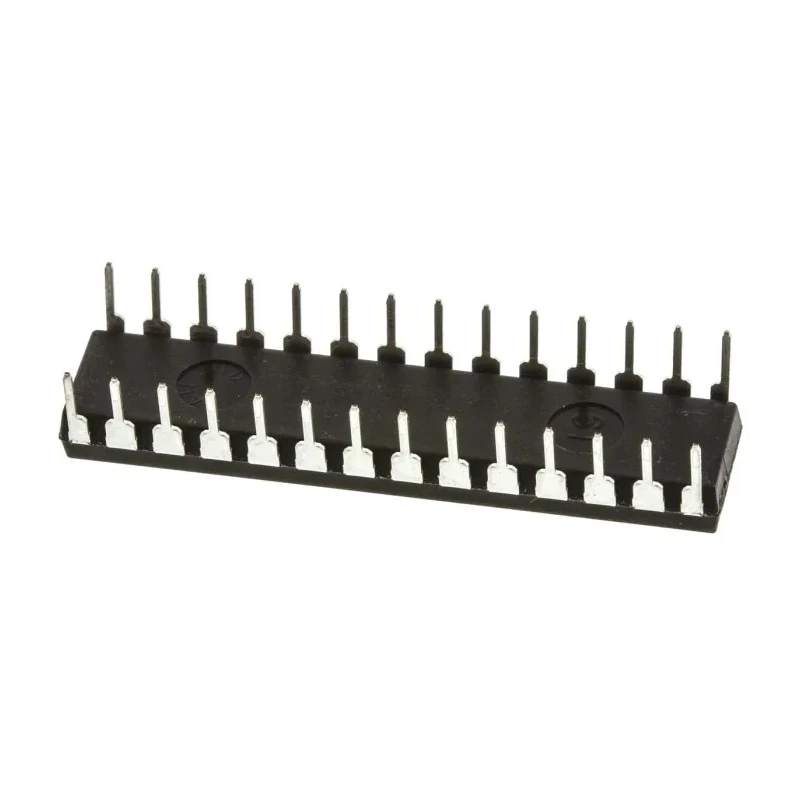

Microchip 8 bit PIC18F Microcontroller 40 MHz 32 kB Flash 256 B EEPROM 28-Pin SPDIP PIC18F258-I/SP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.43mm |
| Length | 35.18mm |
| Model | PIC18F258-I/SP |
| Width | 7.49mm |
| Mount Type | Through Hole |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1.54kB |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 4.2V |
| Device Core | PIC |
| Program Memory Size | 32, 256kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 22 |
| Analogue Comparators | 2 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 5 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at a maximum clock frequency of 40 MHz.
- Equipped with 32 kB program memory and 256 bytes EEPROM.
- Includes 1.54 kB RAM for data storage.
- Features 22 programmable input/output pins.
- Supports 5 analog-to-digital converters with 10-bit resolution.
- Robust operating temperature range from -40°C to 85°C.
- Designed with a 28-pin through-hole SPDIP package for easy mounting.
- Complies with RoHS environmental standards.
Product Description
Microchip PIC18F258-I/SP is a high-performance 8 bit PIC18F microcontroller designed for versatile applications in industrial, automotive, consumer electronics, and embedded systems. Operating at up to 40 MHz clock frequency, it offers 32 kB of flash program memory and 256 bytes of EEPROM, facilitating robust code execution and data retention.
This microcontroller includes 1.54 kB of RAM and 22 programmable I/O pins, allowing for flexible interfacing and control. It features 5 analog-to-digital converters with 10-bit resolution, enabling accurate sensor data acquisition. With 4 timers and 2 analog comparators, it supports advanced timing and analog comparison functionalities essential for complex embedded designs.
Housed in a 28-pin SPDIP package suitable for through-hole mounting, the device dimensions are 35.18 mm length, 7.49 mm width, and 3.43 mm height. It complies with RoHS standards ensuring environmental safety. The operating voltage range from 4.2 V to 5.5 V and maximum power dissipation of 1 W make it energy efficient and reliable across varied thermal conditions from -40°C to 85°C.
This device is ideal for a wide range of applications including industrial automation, consumer electronics, and embedded control systems. Its compact footprint and versatile features simplify integration into PCB designs reducing development times. Comprehensive technical support and design resources from Microchip further accelerate product development cycles.
Operates at a maximum clock frequency of 40 MHz. Equipped with 32 kB program memory and 256 bytes EEPROM. Includes 1.54 kB RAM for data storage. Features 22 programmable input/output pins. Supports 5 analog-to-digital converters with 10-bit resolution.
Robust operating temperature range from -40°C to 85°C. Designed with a 28-pin through-hole SPDIP package for easy mounting. Complies with RoHS environmental standards. Maximum supply voltage is 5.5 V with a minimum of 4.2 V.
Provides 4 timers and 2 analog comparators for peripheral control. Discover more Microchip semiconductor components and Microcontrollers on EnvMart for your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC18F258-I/SP operates at a maximum clock frequency of 40 MHz.
It is equipped with 32 kB of flash program memory.
This microcontroller features 22 programmable input/output pins.
The operating temperature range is robust, from -40°C to 85°C.
It is designed with a 28-pin through-hole SPDIP package for easy mounting.
The maximum supply voltage is 5.5 V, with a minimum of 4.2 V.
It includes 1.54 kB of RAM for data storage.
This model supports 5 analog-to-digital converters with 10-bit resolution.
The dimensions are 35.18 mm in length, 7.49 mm in width, and 3.43 mm in height.
It complies with RoHS environmental standards.
It features 4 timers for peripheral control.
It is suitable for a wide range of applications including industrial automation, consumer electronics, and embedded control systems.
