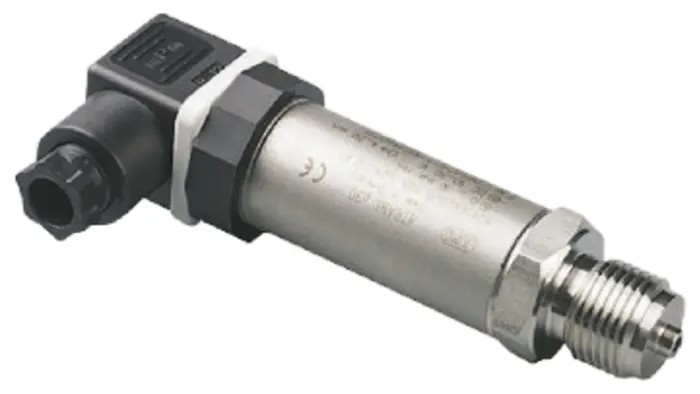

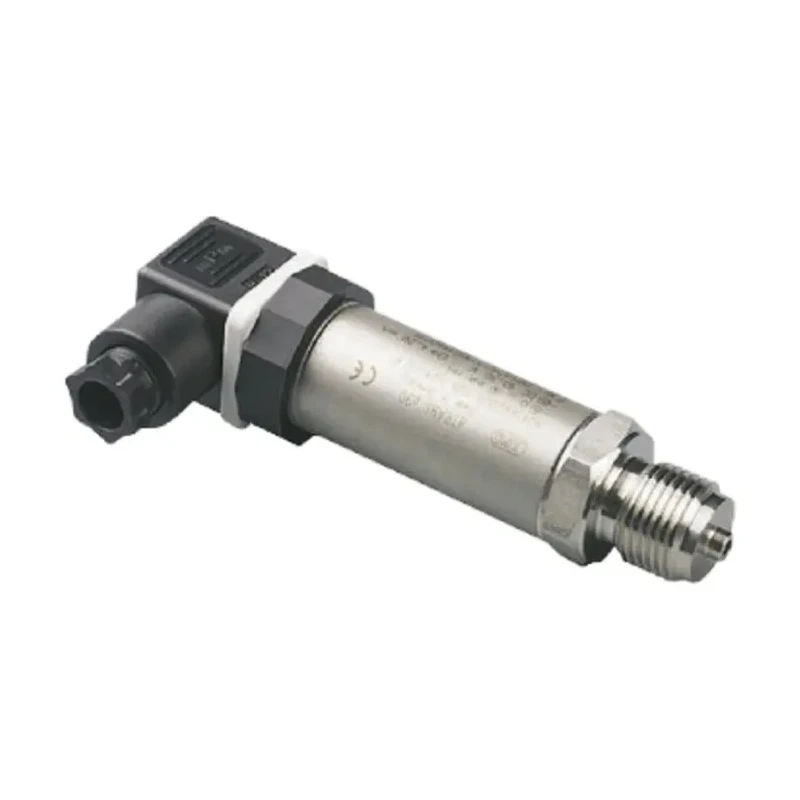

Jumo dTRANS p30 Series Precision Pressure Sensor Absolute Reading 0 to 1.6 bar, Analogue 404366/000-489-405-504-20-61/000

Free Delivery in India | Lowest Global Shipping Charges

Jumo dTRANS p30 Series Precision Pressure Sensor Absolute Reading 0 to 1.6 bar, Analogue 404366/000-489-405-504-20-61/000

Name: Jumo dTRANS p30 Series Precision Pressure Sensor Absolute Reading 0 to 1.6 bar, Analogue 404366/000-489-405-504-20-61/000
Brand: JUMO
SKU: 187841
Price: 624.69 USD
Availability: InStock



Category Pressure Sensor Brand JUMO Condition New

Specifications

Country of Origin	Germany
Accuracy	0.5 %
Brand	Jumo
Response time	3ms
Model	404366/000-489-405-504-20-61/000
IP Rating	IP65, IP67
Housing Material	Stainless Steel
Output type	Analogue
Series	JUMO dTRANS p30
Maximum Operating Temperature	120°C
Minimum Operating Temperature	-30°C
Standards/Approvals	EN 50 082-2 (CE mark), EN 61326
Maximum Pressure Measurement	1.6bar
Minimum Pressure Measurement	0bar
Maximum Supply Voltage	30V dc
Minimum Supply Voltage	10V dc
Pressure Reading Type	Absolute
Media Measured	Gas, Fluid

Key Features

Operates on piezo-resistive or thin-film DMS measuring principle for high accuracy.
Provides absolute pressure reading suitable for gases and fluids.
Accurate measurement with 0.5% accuracy and fast 3ms response time.
Robust stainless steel housing rated IP65 and IP67 for harsh environments.
Wide operating temperature range from -30°C to 120°C.
Supports supply voltage range from 10V dc to 30V dc.
Certified to EN 50 082-2 (CE mark) and EN 61326 standards.
Designed for reliable industrial, automation, and control gear sensor applications.

Product Description

Jumo 404366/000-489-405-504-20-61/000 pressure sensor is part of the JUMO dTRANS p30 series of precision pressure transducers measuring absolute pressure from 0 to 1.6 bar. It uses the piezo-resistive or thin-film DMS measuring principle to convert pressure into an analogue electrical signal. This sensor is ideal for detecting relative and absolute pressures in gases and fluids.

The sensor features a robust stainless steel housing construction providing durability and protection with IP65 and IP67 ingress protection ratings. Operating temperature ranges between -30°C and 120°C make this sensor suitable for diverse industrial environments.

With an accuracy of 0.5% and a fast response time of 3 milliseconds, it delivers reliable measurements critical for automation and control systems. The device operates on a minimum supply voltage of 10V dc up to a maximum of 30V dc, ensuring flexible integration into existing systems.

The Jumo dTRANS p30 series sensor is approved under standards EN 50 082-2 (CE mark) and EN 61326, meeting rigorous quality and electromagnetic compatibility requirements. Its design is optimized for industrial machines, measuring instruments, and process control applications.

Operates on piezo-resistive/thin-film DMS principle for high precision. Analogue output provides continuous real-time pressure data. Suitable for measuring absolute pressure of gases and liquids. Stainless steel housing provides mechanical strength and corrosion resistance.

Wide temperature operating range for varied industrial conditions. Protection rating of IP65 and IP67 for dust and water ingress resistance. Compliance with relevant CE and EMC standards ensures safe and reliable use. Fast response time for dynamic pressure monitoring and control.

This sensor is widely applicable in industrial automation, process monitoring, HVAC systems, laboratory instrumentation, and fluid power systems requiring precise pressure measurement. Jumo's proven technology ensures long-term stability and reliability.
