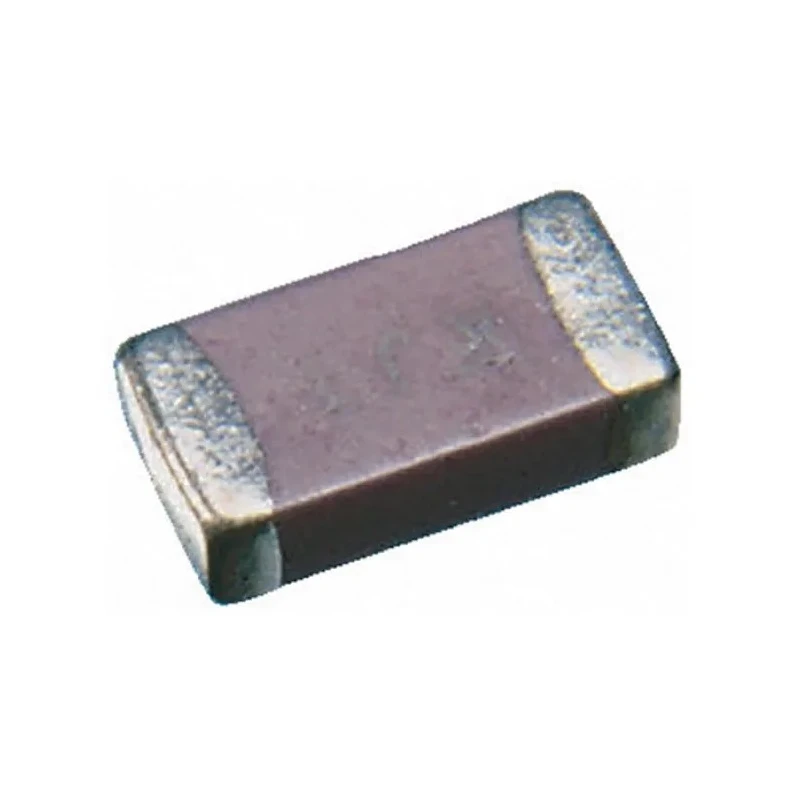

Yageo 10 nF 50V DC ±10% Multilayer Ceramic Capacitor, Surface Mount, Package 0805, X7R Dielectric CC0805KRX7R9BB103

Name: Yageo 10 nF 50V DC ±10% Multilayer Ceramic Capacitor, Surface Mount, Package 0805, X7R Dielectric CC0805KRX7R9BB103
Brand: Yageo
SKU: 187771
Price: 0.02 USD
Availability: InStock



Category Multilayer Ceramic Capacitors Brand Yageo Condition New

Specifications

Country of Origin	India
Voltage	50V dc
Brand	Yageo
Height	0.6mm
Length	2mm
Model	CC0805KRX7R9BB103
Packaging	Paper/PE Tape Reel
Width	1.25mm
Mount Type	Surface
Construction	Stacked
Series	Standard
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	10nF
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Package/Case	0805
Dielectric	X7R
Suppression Class	Class II

Key Features

Compact 0805 package suitable for automated assembly.
Capacitance of 10 nF with ±10% tolerance provides precision performance.
X7R dielectric material offers wide operational temperature range.
Surface mount termination type compatible with modern PCB designs.
Maximum operating temperature up to 125°C for demanding applications.
Paper/PE tape reel packaging facilitates manufacturing efficiency.
Stacked construction enhances capacitance density in small size.
Compliance with RoHS standards supports environmentally friendly use.

Product Description

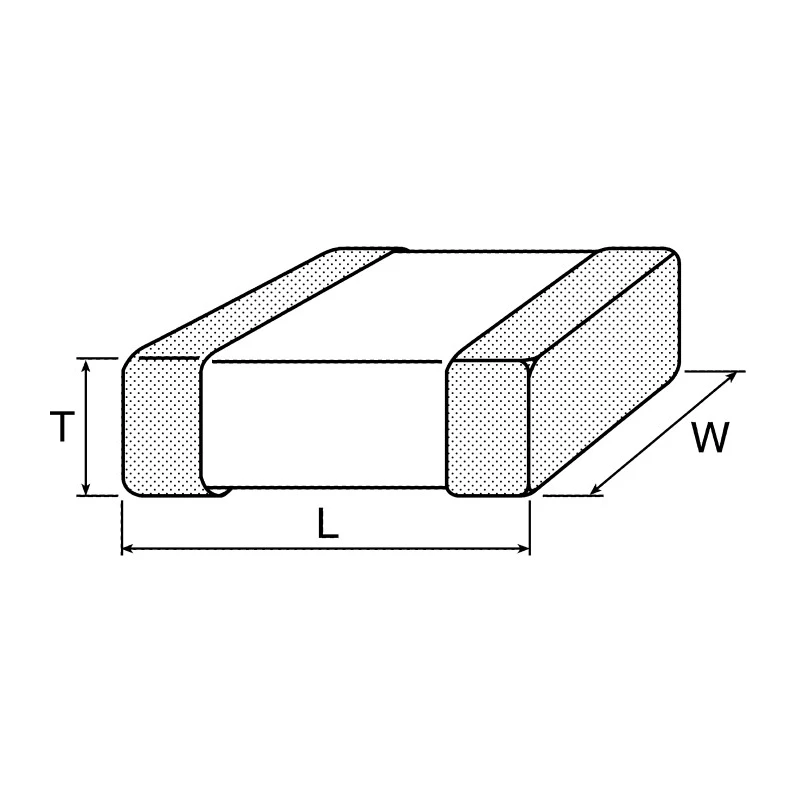

Yageo CC0805KRX7R9BB103 Multilayer Ceramic Capacitor is a high-quality 10 nF, 50V DC rated capacitor designed for surface mount technology and modern electronic assemblies. Featuring an 0805 package, this capacitor offers a compact footprint measuring 2mm in length, 1.25mm in width, and 0.6mm in height, making it ideal for dense PCB layouts.

The capacitor utilizes X7R dielectric, a Class II temperature stable ceramic material, providing consistent electrical properties over a wide temperature range from -55°C to 125°C. Its ±10% capacitance tolerance ensures reliable and predictable circuit performance in applications including PCs, HDDs, gaming PCs, power supplies, LCD panels, and modems.

This component features nickel barrier terminations covered with lead-free tin plating, ensuring high reliability and solderability in automated manufacturing processes. The device is supplied on paper/PE tape reels, enabling efficient pick-and-place assembly suitable for volume production.

The stacked construction design delivers enhanced capacitance while maintaining a compact size. Its RoHS compliance confirms adherence to environmental safety standards, making it suitable for use in automotive-related electronics although classified as not automotive standard per specifics.

Compact 0805 surface mount package suitable for automated PCB assembly. High capacitance density with stable X7R Class II dielectric material. Voltage rating of 50V DC for a range of electronic device applications. Wide operating temperature from -55°C to 125°C for reliability.

±10% capacitance tolerance ensures precision in circuit design. Lead-free nickel barrier terminations with tin plating for durability. Supplied on paper/PE tape reels for manufacturing efficiency. Complies with RoHS environmental standards.

This multilayer ceramic capacitor is designed for use in industrial electronics, computer hardware, communication devices, and consumer electronics where small, reliable capacitors with stable characteristics are required. Its surface mount form factor supports modern automated production lines. Browse more from Yageo capacitors and electronic components at EnvMart for your project needs.
