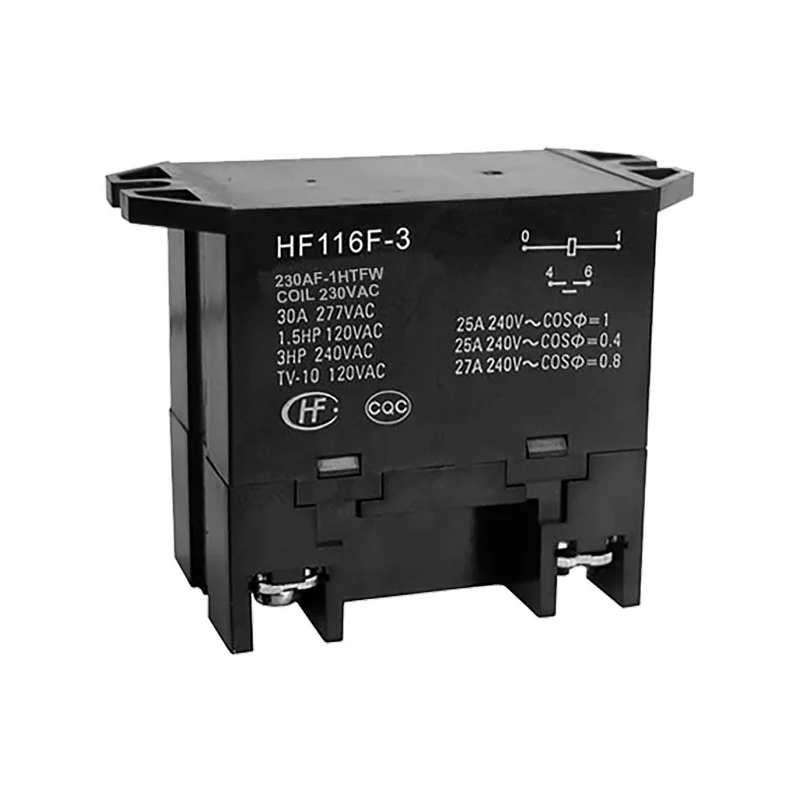

Hongfa Europe GMBH Flange Power Relay, 230V AC Coil, 30A Switching Current, SPST HF116F-3/230AF-1HTFW
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 51mm |
| Length | 68mm |
| Model | HF116F-3/230AF-1HTFW |
| Width | 32.9mm |
| Mount Type | Flange |
| Contact Material | Silver Alloy |
| Series | HF116F-3 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -55°C |
| Switching Current | 30A |
| Terminal type | Screw |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CQC, cULus |
| Coil Resistance | 20.8kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 277V ac |
| Coil Power | 2.7W |
Key Features
- Flange mount design ensures easy and secure installation.
- SPST contact configuration suitable for various control applications.
- Silver alloy contacts provide durability and low resistance.
- Operates reliably within a temperature range of -55°C to 70°C.
- Features screw terminal types for secure electrical connections.
- Has a coil resistance of 20.8 kΩ ensuring stable coil operation.
- Supports switching AC voltage up to 277V AC and switching power of 8.3 kVA.
- Compact with dimensions 68mm length, 51mm height, and 32.9mm width.
Product Description
Hongfa Europe GMBH HF116F-3/230AF-1HTFW flange power relay is a miniature high-power relay designed for industrial and electrical automation applications. It features a 230V AC coil voltage and a 30A switching current capability, making it ideal for switching and control circuits in various commercial and industrial settings.
The relay has a Single Pole Single Throw (SPST) contact configuration with silver alloy contacts, providing excellent conductivity and long service life. Its flange mount design with screw terminals offers secure and straightforward mounting and wiring.
Operational in a harsh temperature range from -55°C to 70°C, it supports switching AC voltages up to 277V and switching power of 8.3 kVA. The coil resistance of 20.8 kΩ and coil power consumption of 2.7W ensure low power coil operation.
The device is constructed with safety and durability in mind, including a 4 kV dielectric strength and a 3 mm contact gap to prevent electrical faults. It complies with CQC and cULus standards, making it suitable for demanding industrial environments.
Flange mount for secure installation in electrical panels. SPST contact offering simple on/off switching. Silver alloy contacts for enhanced durability and low contact resistance. Wide temperature range operation ensures reliability under diverse conditions.
Standard screw terminal connections simplify wiring tasks. Suitable for HVAC, manufacturing, and automation control systems.
This relay is designed for use in industrial automation, building electrical installations, and control systems requiring reliable high-power switching. Its compact form factor allows easy integration into existing control panels and systems.
Explore more Power Relays and electrical components through EnvMart's extensive catalog, designed to meet your electrical control and automation needs with dependable quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 30A, making it suitable for various control applications.
The coil voltage for this power relay is 230V AC, which is necessary for its operation.
It operates reliably within a temperature range of -55°C to 70°C, suitable for harsh environments.
This relay features a Single Pole Single Throw (SPST) contact configuration, allowing for simple on/off switching.
The dimensions of this model are 68mm in length, 51mm in height, and 32.9mm in width.
It supports switching AC voltages up to 277V AC, making it versatile for various applications.
It features screw terminals, which provide secure electrical connections during installation.
The coil resistance is 20.8 kΩ, ensuring stable operation of the coil.
The contacts are made from silver alloy, which provides durability and low resistance.
It complies with CQC and cULus standards, indicating its suitability for industrial applications.
The coil power consumption is 2.7W, contributing to low power operation.
This relay is designed for use in industrial automation, building electrical installations, and control systems requiring reliable high-power switching.
