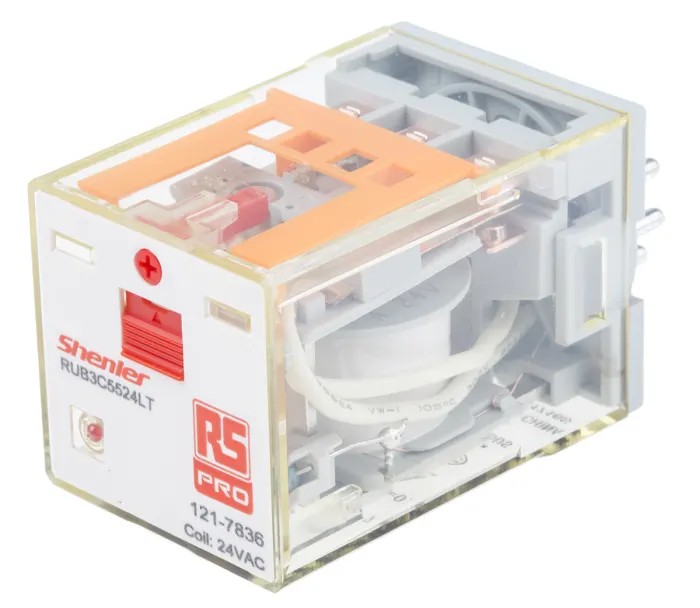

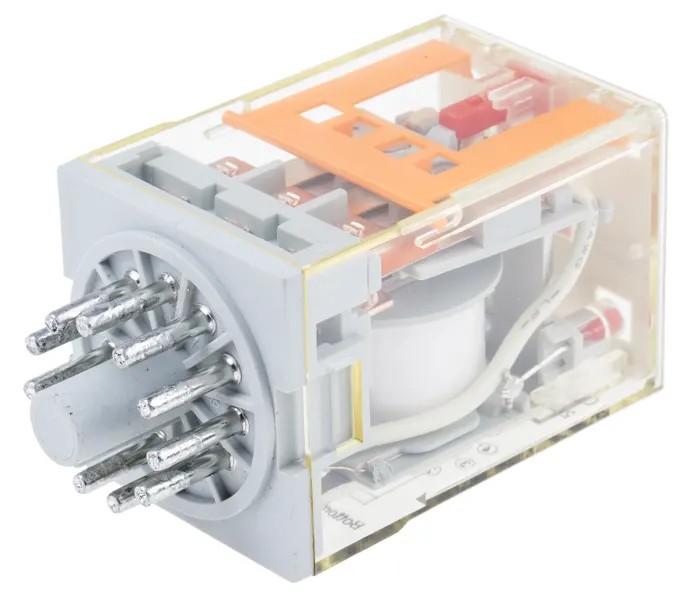

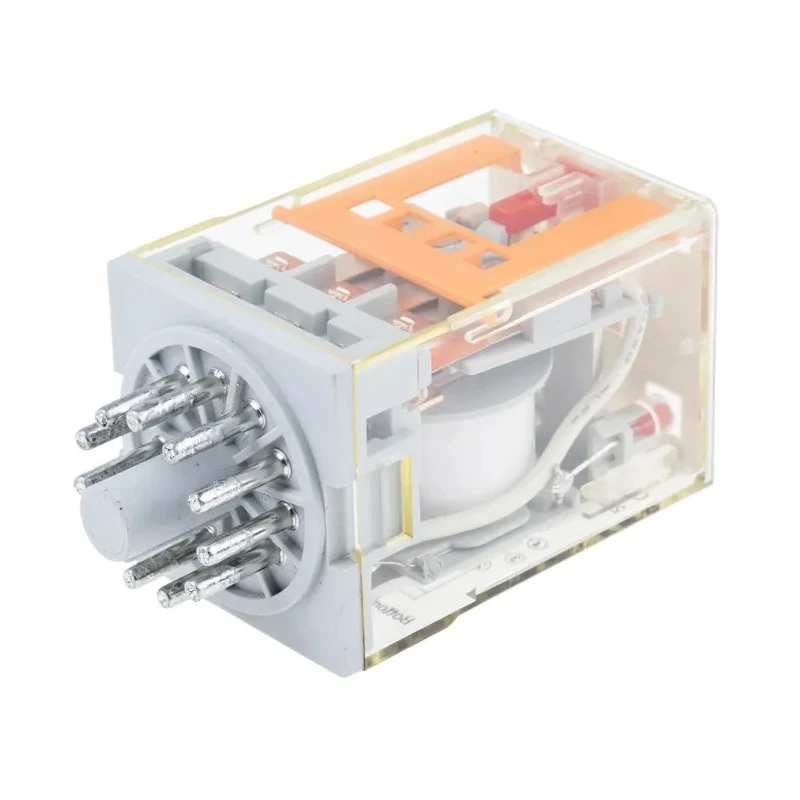

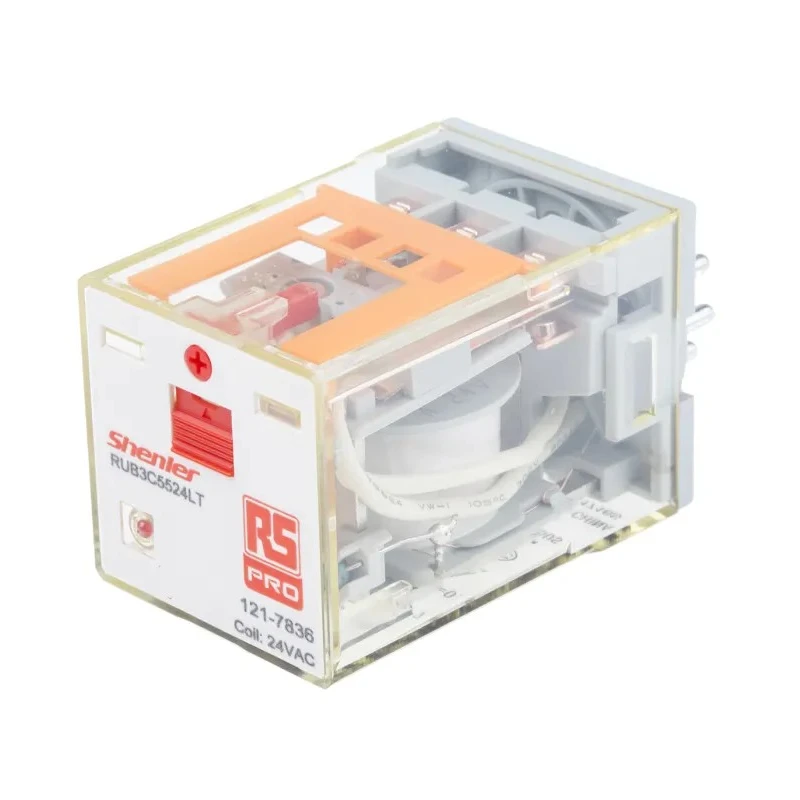

RS PRO Power Relay, 24V AC Coil, 10A Switching Current, 3PDT 121-7836
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 53mm |
| Length | 36mm |
| Model | 121-7836 |
| Width | 36mm |
| Contact Material | Silver Alloy |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -10°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS, CE |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 300W |
Key Features
- This power relay features a 3PDT (Triple Pole Double Throw) contact configuration.
- The coil power rating is 300W, suitable for reliable switching operations.
- It supports switching AC voltage up to 250V and DC voltage up to 30V.
- Operating temperature ranges from -10°C to a maximum of 55°C for robust performance.
- The relay has silver alloy contacts with gold plating for enhanced conductivity and durability.
- Includes a lockable test button and inspection window for easy testing and maintenance.
- The device’s dimensions are compact at 36mm length, 36mm width, and 53mm height.
- LED indicator facilitates visual status monitoring of the relay operation.
Product Description
RS PRO 121-7836 Power Relay is a 3PDT general-purpose octal relay designed for industrial automation, HVAC systems, and machine building applications. With a coil voltage of 24V AC and a 10A switching current, this relay offers reliable switching capability for electrical enclosures.
The relay's compact dimensions (36mm x 36mm x 53mm) allow easy integration into control panels. Its silver alloy contacts are gold plated to ensure superior electrical conductivity and resistance to corrosion, while the contact resistance is rated at 50mΩ for efficient operation.
Operating temperature ranges from -10°C to 55°C, supporting robust performance even under fluctuating environmental conditions. The 3PDT contact configuration enables multiple switching paths for versatile application requirements.
Additional features include an LED indicator for operational status, a lockable test button, and an inspection window, all designed to facilitate maintenance and diagnostics. The coil power rating is 300W, supporting reliable and efficient coil activation.
This relay complies with RoHS and CE standards, ensuring quality and safety in industrial settings. Bases for DIN Rail mounting can be purchased separately to accommodate secure installation.
This power relay features a 3PDT contact configuration for versatile switching. The coil operates at 24V AC with a power rating of 300W. It supports switching currents up to 10A, suitable for various industrial controls.
Silver alloy contacts with gold plating provide enhanced durability and conductivity. LED indicator and lockable test button enable easy monitoring and maintenance. Compact size of 36mm x 36mm x 53mm for space-saving installation.
Compatible with DIN Rail bases sold separately for flexible mounting options. This RS PRO Power Relay is ideal for industrial, HVAC, manufacturing, and automation use cases. Explore other RS PRO relays and electrical components in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V AC.
It can handle a maximum switching current of 10A.
The dimensions of this relay are 36mm in length, 36mm in width, and 53mm in height.
This relay features a 3PDT (Triple Pole Double Throw) contact configuration.
It can switch AC voltage up to 250V and DC voltage up to 30V.
The operating temperature range is from -10°C to a maximum of 55°C.
The relay has silver alloy contacts with gold plating for enhanced conductivity and durability.
Yes, it includes a lockable test button and an inspection window for easy testing and maintenance.
The contact resistance is rated at 50mΩ.
Yes, it complies with RoHS and CE standards.
The coil power rating is 300W, suitable for reliable switching operations.
Yes, it is compatible with DIN Rail bases, which can be purchased separately for secure installation.
