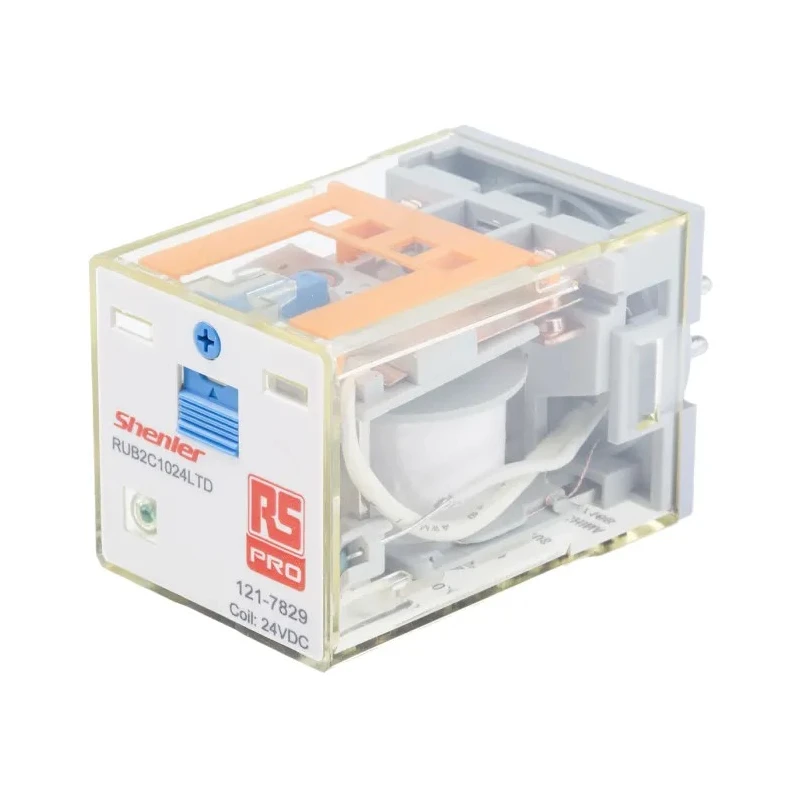

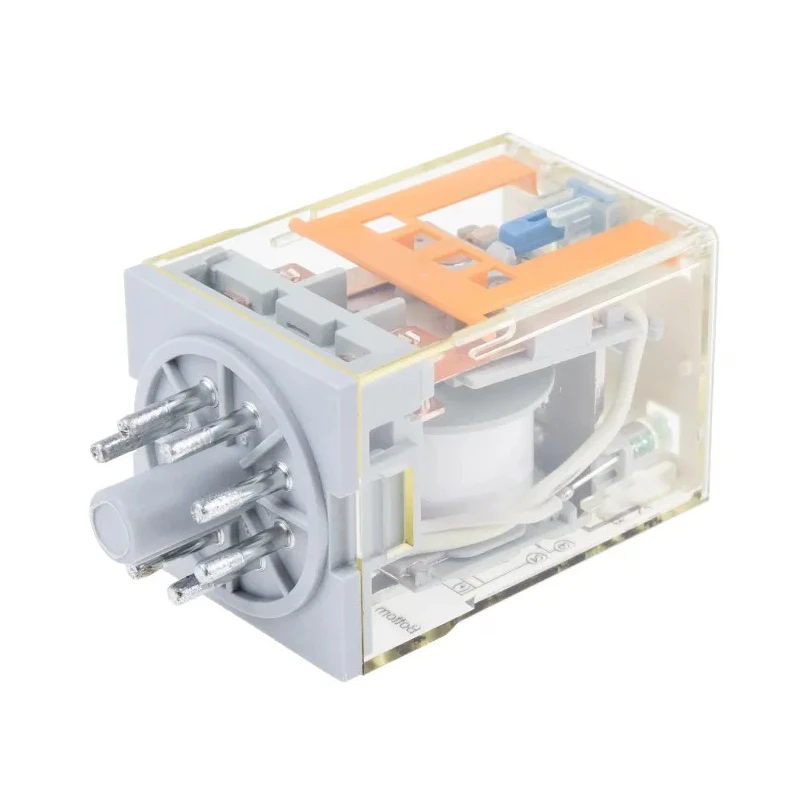

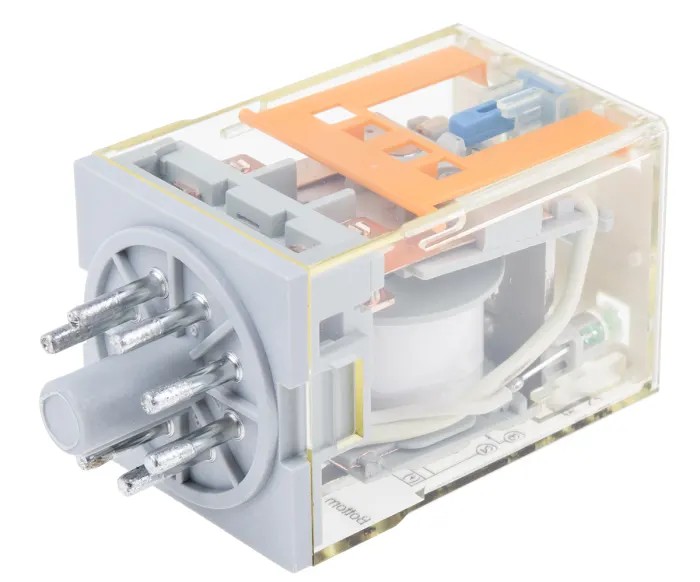

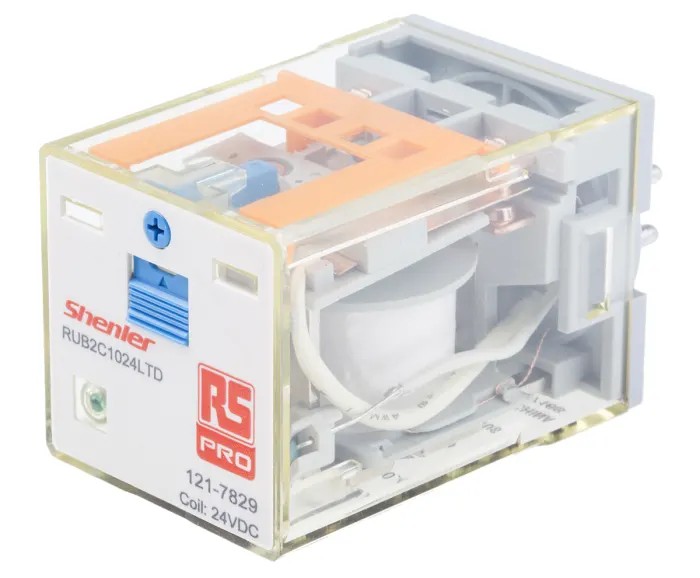

RS PRO Power Relay 24V DC Coil 10A Switching DPDT 300W Coil Power 121-7829
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 53mm |
| Length | 36mm |
| Model | 121-7829 |
| Width | 36mm |
| Contact Material | Silver Alloy |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -10°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 50mΩ |
| Standards/Approvals | CE, RoHS |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 300W |
Key Features
- Features a 24V DC coil voltage for efficient control.
- Supports a switching current of 10A, suitable for medium power loads.
- Double Pole Double Throw (DPDT) contact configuration for versatile switching.
- Equipped with silver alloy gold-plated contacts to ensure durability and low resistance.
- Compact dimensions of 36mm length, width and 53mm height for easy installation.
- Coil power consumption of 300W ensures strong magnetic performance.
- Operating temperature range from -10°C to 55°C for reliable operation in varied environments.
- Includes a LED indicator and lockable test button with inspection window.
Product Description
RS PRO 121-7829 Power Relay with a 24V DC coil and 10A switching current DPDT configuration is an industrial-grade double pole general-purpose octal relay designed for automation and control systems. Its compact size with 36mm length and width, and 53mm height allows easy mounting on DIN Rail assemblies, with bases ordered separately.
Constructed with silver alloy gold-plated contacts, this relay offers low contact resistance of 50mΩ ensuring reliable switching performance. The coil power is rated at 300W providing robust electromagnetic response. Operating temperature ranges from -10°C minimum to 55°C maximum, making it suitable for various industrial environments.
This relay includes a LED indicator for status monitoring and a lockable test button with inspection window, facilitating diagnostics and safety during maintenance. It complies with CE and RoHS directives, ensuring high quality and environmental standards.
Typical applications include industrial automation equipment, machine building projects, HVAC systems, and other electrical enclosure functions requiring secure and efficient relay switching.
Features a 24V DC coil voltage for efficient control. Supports a switching current of 10A, suitable for medium power loads. Double Pole Double Throw (DPDT) contact configuration for versatile switching. Equipped with silver alloy gold-plated contacts to ensure durability and low resistance.
Compact dimensions of 36mm length, width and 53mm height for easy installation. Coil power consumption of 300W ensures strong magnetic performance. Operating temperature range from -10°C to 55°C for reliable operation in varied environments.
Includes a LED indicator and lockable test button with inspection window. Suitable for industrial automation, machine building, and HVAC applications. Meets CE and RoHS standards for quality and environmental compliance.
Explore more Power Relays and automation components in the RS PRO range available on EnvMart for your industrial and electrical project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC, allowing for efficient control in various applications.
It supports a maximum switching current of 10A, making it suitable for medium power loads.
This model features a Double Pole Double Throw (DPDT) contact configuration, providing versatile switching options.
The relay has compact dimensions of 36mm in length and width, and 53mm in height, facilitating easy installation.
The coil power consumption is rated at 300W, ensuring strong electromagnetic performance.
It operates reliably within a temperature range of -10°C to 55°C, suitable for various industrial environments.
The contacts are made of silver alloy with gold plating, which helps ensure low resistance and durability.
Yes, it includes a LED indicator for status monitoring and a lockable test button with an inspection window for diagnostics.
It complies with CE and RoHS directives, ensuring adherence to quality and environmental standards.
The relay is equipped with a plug-in terminal type for easy connection.
It can switch DC voltage up to 30V and AC voltage up to 250V, making it versatile for different applications.
Typical applications include industrial automation equipment, machine building, and HVAC systems, among others.
