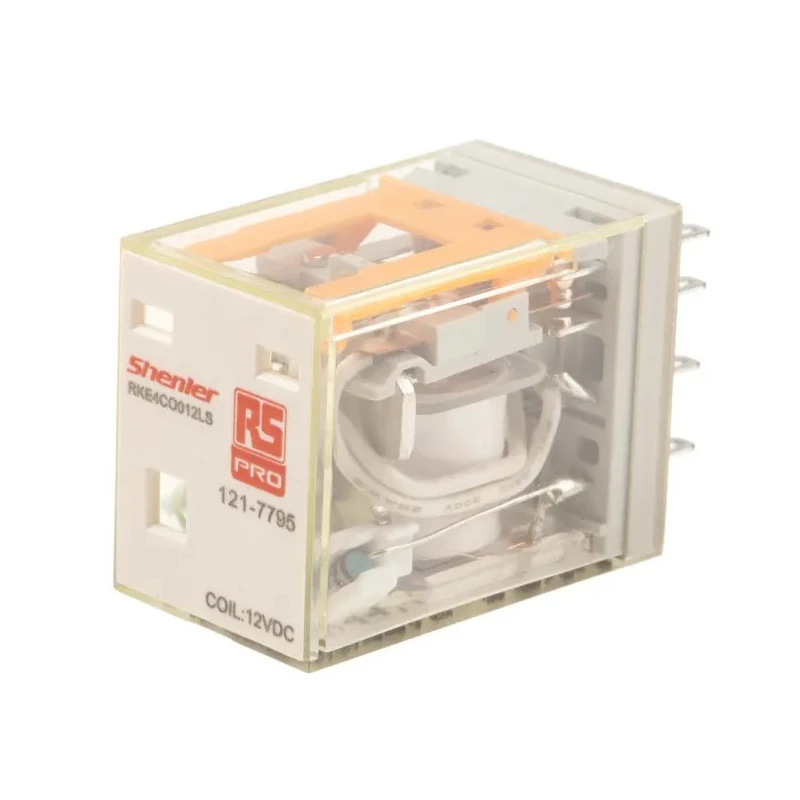

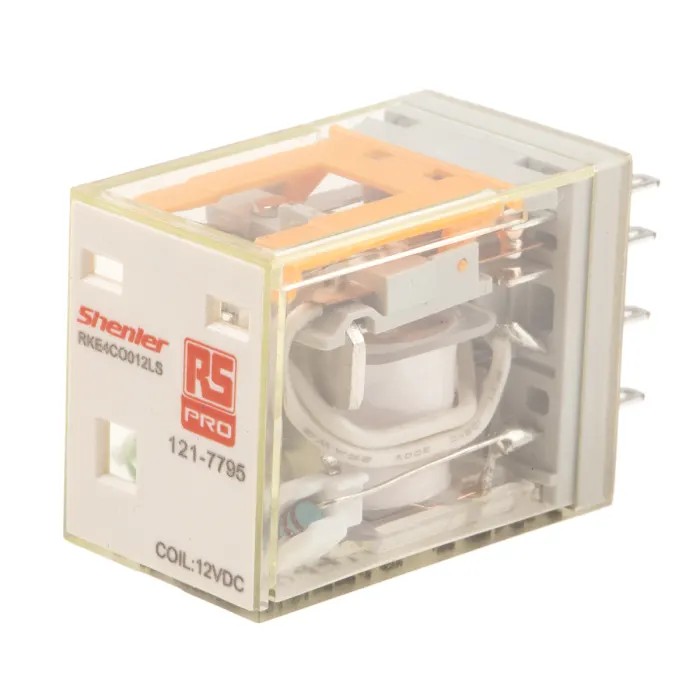

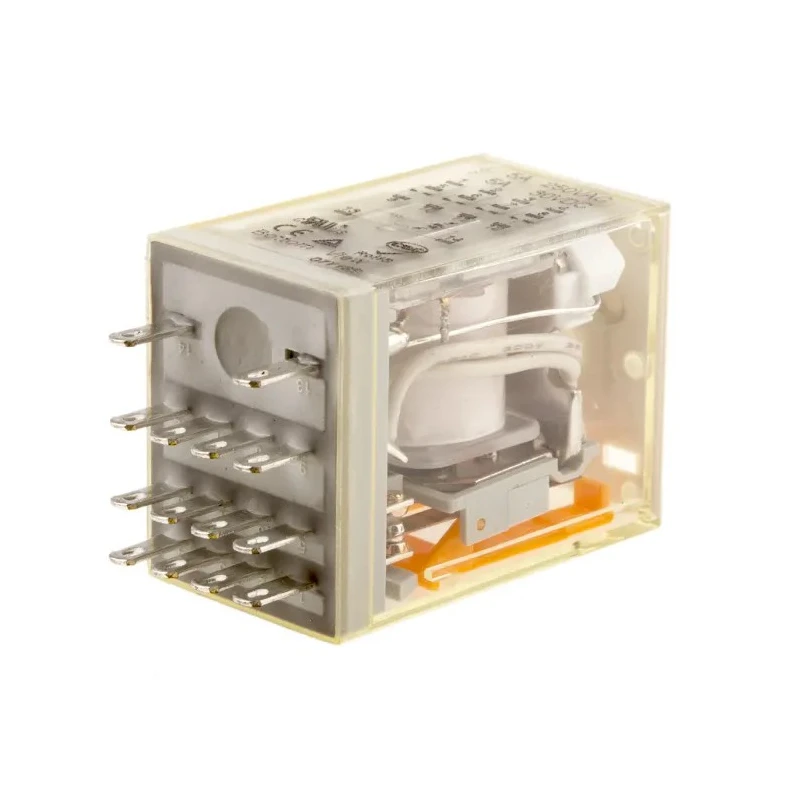

RS PRO Power Relay 12V dc Coil, 5A Switching Current, 4PDT 121-7795

RS PRO 121-7795 Power Relay is engineered with a 12V dc coil providing dependable switching capability with a current rating of 5A and a 4PDT (4 Pole Double Throw) contact configuration. This plug-in power relay is designed for use in industrial environments, including automation, HVAC, machine construction, and electrical enclosure functions. The relay solutions from RS PRO combine sturdy silver alloy contacts with an exceptionally low contact resistance of 50mΩ, assuring optimal electrical performance and longevity.

This relay operates reliably within a wide temperature range, from -55°C to 70°C, making it viable for demanding industrial conditions. The compact size with dimensions 28mm in length, 36mm in height, and 21.5mm in width ensures ease of integration in confined spaces. Additionally, it includes an LED indicator and test button with inspection window to facilitate diagnostic and monitoring tasks.

Certified to meet CE and RoHS standards, the relay fulfills important regulatory compliance related to safety and environmental impact. The plug-in terminal type supports quick installation and secure connections in control panels or industrial enclosures. For assembly on DIN rails, bases are available separately.

This power relay features a 12V dc coil voltage for standard industrial control circuits. It has a contact configuration of 4PDT, allowing four independent circuits to be switched simultaneously. The relay supports a switching current up to 5 amperes, enabling control of moderate load devices.

The silver alloy contact material reduces arcing and improves durability with a contact resistance rated at 50 milliohms. The coil power consumption is rated at 150W, balancing power and efficiency. Operating temperature range extends from -55°C to 70°C for robust environmental tolerance.

Physical dimensions of 28mm length, 36mm height, and 21.5mm width make it compact and easy to mount. CE and RoHS compliance confirms adherence to quality and environmental standards. The plug-in terminal design allows for simplified wiring and maintenance.

This product is ideally suited for industrial automation, machine building, and HVAC system applications.

Choose RS PRO for dependable power relay solutions engineered to deliver precision control and durability in industrial and commercial environments. Browse the Power Relays category at EnvMart for a wide selection of related relay products and accessories.
