XP Power AC/DC Adapter 65 W 48V DC Output 1.35A ALM65US48

Free Delivery in India | Lowest Global Shipping Charges

XP Power AC/DC Adapter 65 W 48V DC Output 1.35A ALM65US48

Name: XP Power AC/DC Adapter 65 W 48V DC Output 1.35A ALM65US48
Brand: XP Power
SKU: 187274



Category AC/DC Adapter Brand XP Power Condition New

Specifications

Country of Origin	India
Brand	XP Power
Power	65W
Efficiency	88%
Length	130mm
Model	ALM65US48
Depth	33.5mm
Cable Length	900mm
Width	55.5mm
Series	ALM65
Maximum Operating Temperature	60°C
Load Regulation	±5 %
Minimum Operating Temperature	0°C
Number of outputs	1
Maximum Input Voltage	264V ac
Output Voltage	48V dc
Standards/Approvals	CE, CB, EN 60950-1, UL 60950-1
Minimum Input Voltage	90V ac
Output Connector Type	DC Jack
Input Connector Type	IEC 320-C14
Adapter Current	1.35A
Energy Efficiency Level	VI

Key Features

This adapter provides a single DC output with a DC jack connector.
It features a cable length of 900 mm for flexible installation.
Designed for safe operation from 0°C to 60°C ambient temperature.
Input connection uses IEC 320-C14 type, supporting wide voltage range from 90 V AC to 264 V AC.
Compliance with CE, CB, EN 60950-1, and UL 60950-1 safety standards ensures industrial reliability.
Energy efficient with Level VI certification, maintaining 88% conversion efficiency.
Compact dimensions of 130 mm length, 55.5 mm width, and 33.5 mm depth fit diverse equipment environments.
Load regulation is maintained within ±5% for stable output performance.

Product Description

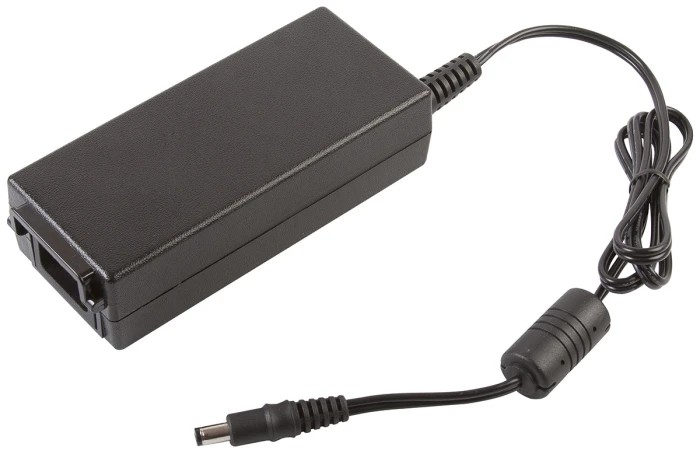

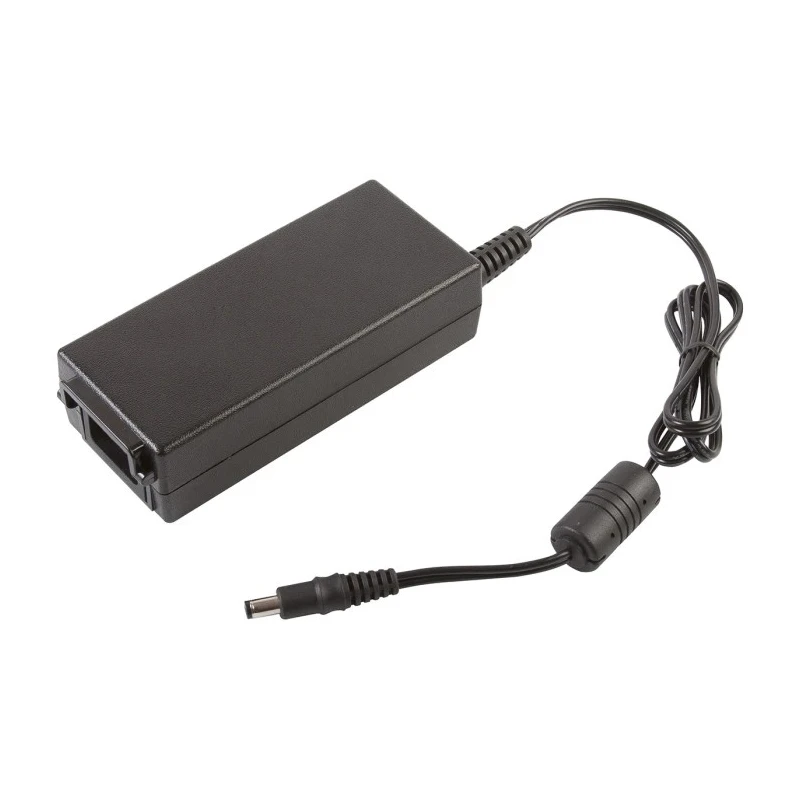

XP Power ALM65US48 AC/DC Adapter is a compact and reliable power supply solution providing 65 W power with a 48 V DC output current of 1.35 A. This adapter is designed for industrial, commercial, and laboratory electronic applications requiring regulated DC power with high efficiency and compliance with international safety standards.

The adapter incorporates a DC jack output connector with a 900 mm cable, enabling flexible and secure connections to devices. It supports a wide input voltage range of 90 V AC to 264 V AC and operates effectively within 0°C to 60°C ambient temperatures, making it suitable for varying environmental conditions.

This unit conforms to CE, CB, EN 60950-1, and UL 60950-1 standards, ensuring safety for ITE and medical equipment. Additionally, it meets Level VI energy efficiency standards, providing 88% efficiency to reduce energy consumption and heat generation.

The physical size of the adapter is compact, measuring 130 mm in length, 55.5 mm in width, and 33.5 mm in depth, making it easy to integrate into existing setups. The load regulation of ±5% guarantees stable voltage output under varying load conditions.

Ideal for power supply needs in industrial automation, laboratory instrumentation, telecommunications, and commercial equipment, the XP Power ALM65US48 offers reliable performance with safety and energy efficiency features.

This adapter provides a single DC output with a DC jack connector. It features a cable length of 900 mm for flexible installation. Designed for safe operation from 0°C to 60°C ambient temperature. Input connection uses IEC 320-C14 type, supporting wide voltage range from 90 V AC to 264 V AC.

Compliance with CE, CB, EN 60950-1, and UL 60950-1 safety standards ensures industrial reliability. Energy efficient with Level VI certification, maintaining 88% conversion efficiency. Compact dimensions of 130 mm length, 55.5 mm width, and 33.5 mm depth fit diverse equipment environments.

Load regulation is maintained within ±5% for stable output performance. Explore more XP Power adapters and power supply products on EnvMart for a wide range of industrial and electronic solutions.
