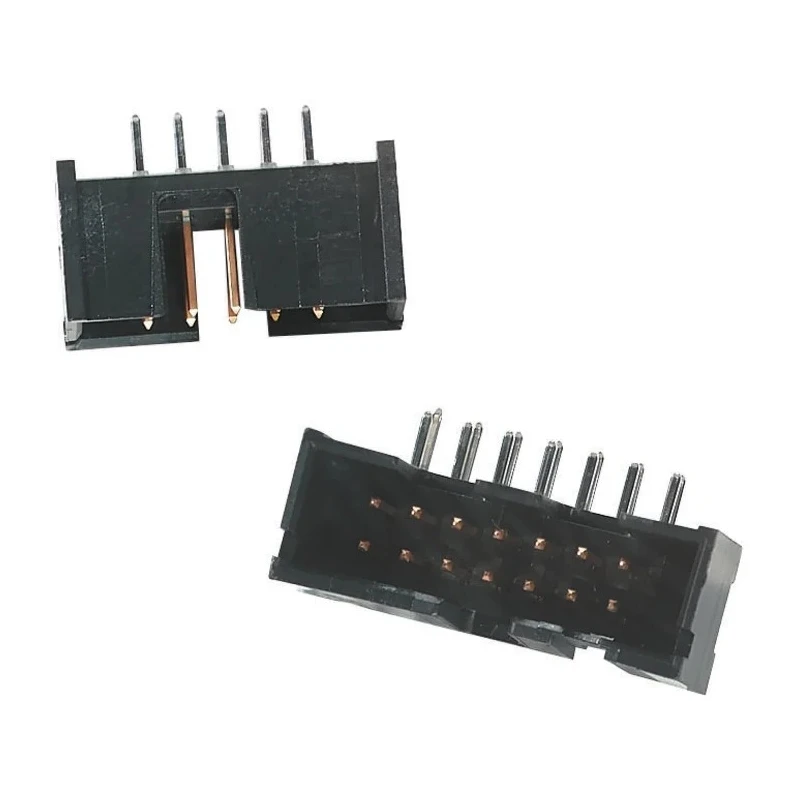

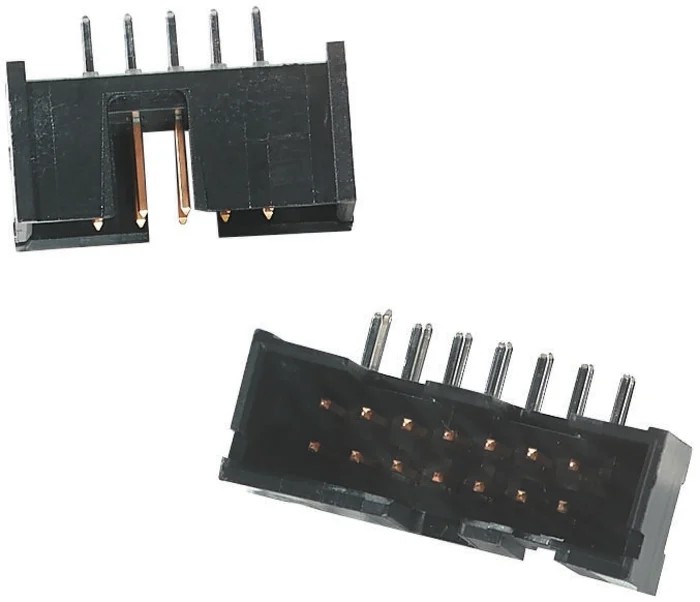

TE Connectivity AMP-LATCH Series Right Angle Board PCB Header, 14 Contacts, 2.54 mm Pitch, 2 Rows, Shrouded 5103310-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Board |
| Housing Material | Glass Filled Nylon, Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | AMP-LATCH |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS Compliant |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 0.64mm |
Key Features
- Features a low profile design suitable for compact PCB layouts.
- Constructed with glass filled nylon and polybutylene terephthalate housing materials for durability.
- Gold-plated copper alloy contacts provide reliable conductivity and corrosion resistance.
- Designed with centre and dual polarization slots for accurate mating with IDC ribbon cable connectors.
- Supports a current rating of 1A and voltage rating of 250V.
- Through hole termination with tail pin length of 0.64 mm ensures secure PCB solder connections.
- Operating temperature range from -65°C to 105°C enables use in various environmental conditions.
- Flame retardant 94V-0 rated thermoplastic housings enhance safety and compliance.
Product Description
TE Connectivity 5103310-2 AMP-LATCH Series Right Angle Board PCB Header features 14 gold-plated copper alloy contacts arranged in 2 rows with a 2.54 mm pitch. This shrouded board header utilizes a low profile design combined with durable glass filled nylon and polybutylene terephthalate thermoplastic housing materials rated flame retardant to 94V-0 standards.
The connector system provides precise centre and dual polarization slots to ensure accurate mating with compatible IDC ribbon cable connectors. Through hole termination with a tail pin length of 0.64 mm secures stable solder joints on printed circuit boards.
Operating reliably from -65°C to 105°C, this PCB header supports a 1A current rating at 250V, suitable for a variety of electronic device applications. Board standoffs assist in thermal management by allowing excess flux removal during soldering.
This AMP-LATCH PCB header is ideal for use across numerous industries, including computing, medical equipment, storage solutions, network communications, industrial control systems, appliances, and electrical testing devices.
Low profile and shrouded design enhances connection reliability. Durable glass filled nylon and polybutylene terephthalate housing material. Gold-plated copper alloy contacts improve conductivity and corrosion resistance.
Polarization slots provide precise cable alignment. Wide operating temperature range supports diverse applications. Through hole termination ensures strong PCB solder joints. Flame retardant housing meets safety standards.
Board standoffs aid flux removal from PCBs. Supports 1A current and 250V voltage rating.
Explore the TE Connectivity range of PCB Headers for industrial, manufacturing, electronic component, and laboratory applications on EnvMart. Rely on professional-grade connectors with proven performance and wide compatibility.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 1A and a voltage rating of 250V.
It is constructed with glass filled nylon and polybutylene terephthalate housing materials, which are flame retardant and rated to 94V-0 standards.
This header features a 2.54 mm pitch and has 14 contacts arranged in 2 rows.
The operating temperature range is from -65°C to 105°C, allowing for use in various environmental conditions.
It uses a through hole termination method, with a tail pin length of 0.64 mm to ensure secure solder connections on printed circuit boards.
Yes, this PCB header is RoHS compliant, meeting environmental safety standards.
It is suitable for various applications including computing, medical equipment, storage solutions, network communications, and industrial control systems.
This model supports a wire-to-board connector system, facilitating connections between wires and printed circuit boards.
The orientation of this PCB header is right angle, which is suitable for compact PCB layouts.
The gold-plated copper alloy contacts provide reliable conductivity and corrosion resistance, enhancing the overall performance of the connection.
This product is manufactured in India.
