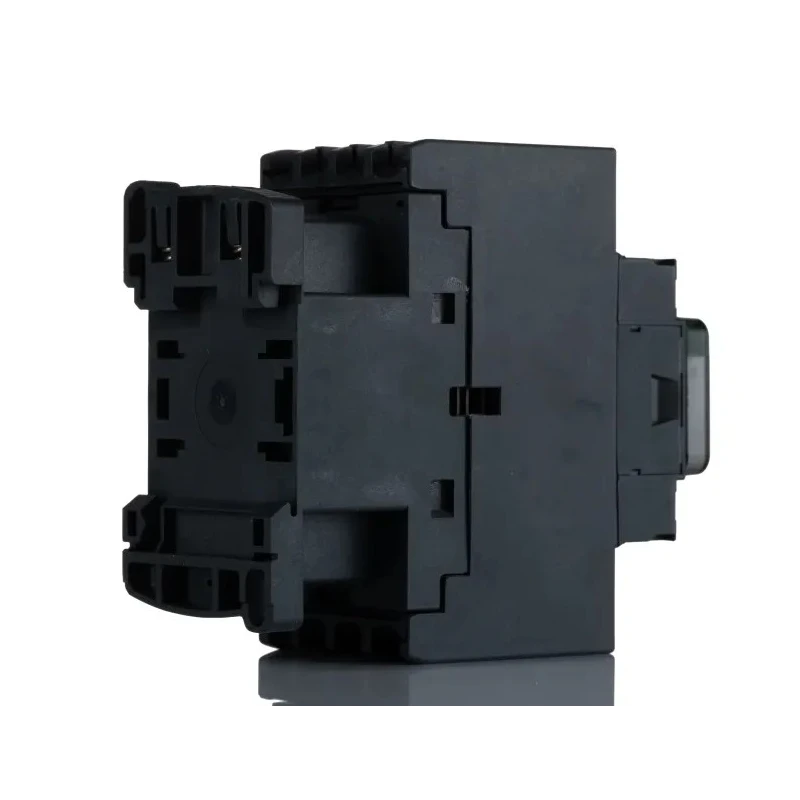

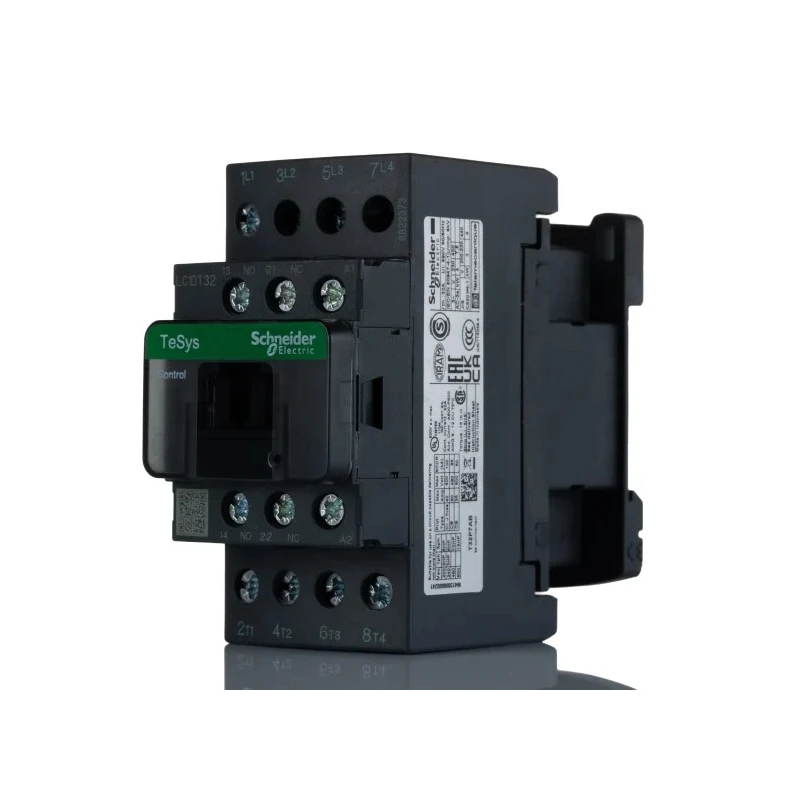

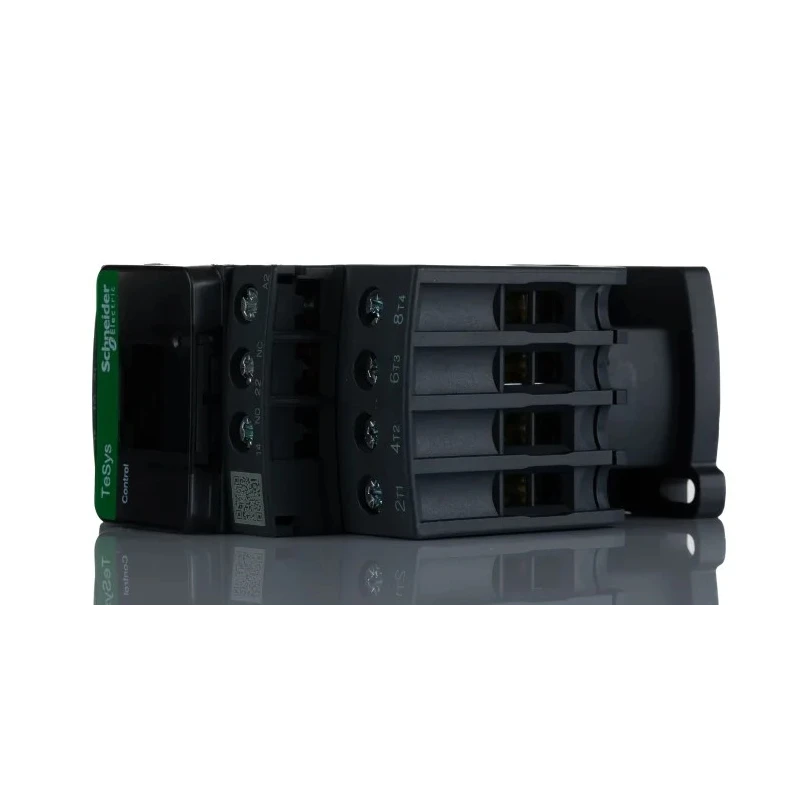

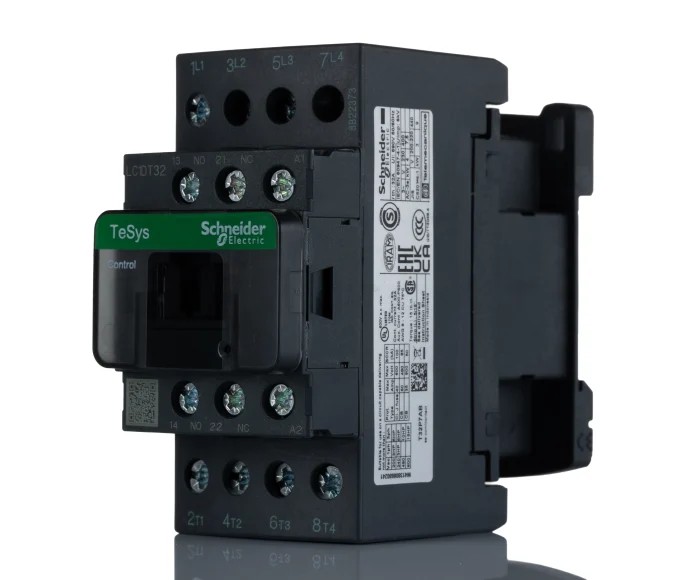

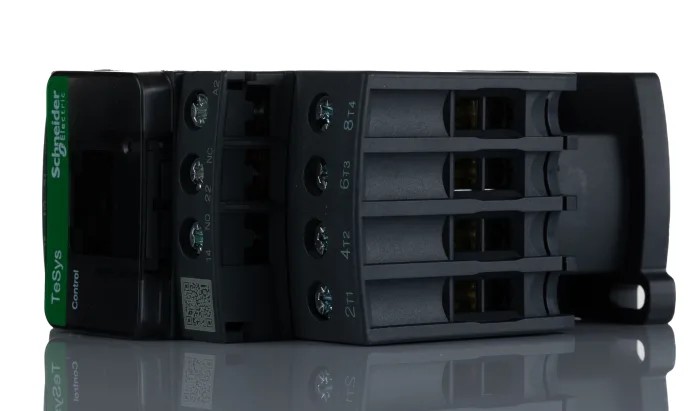

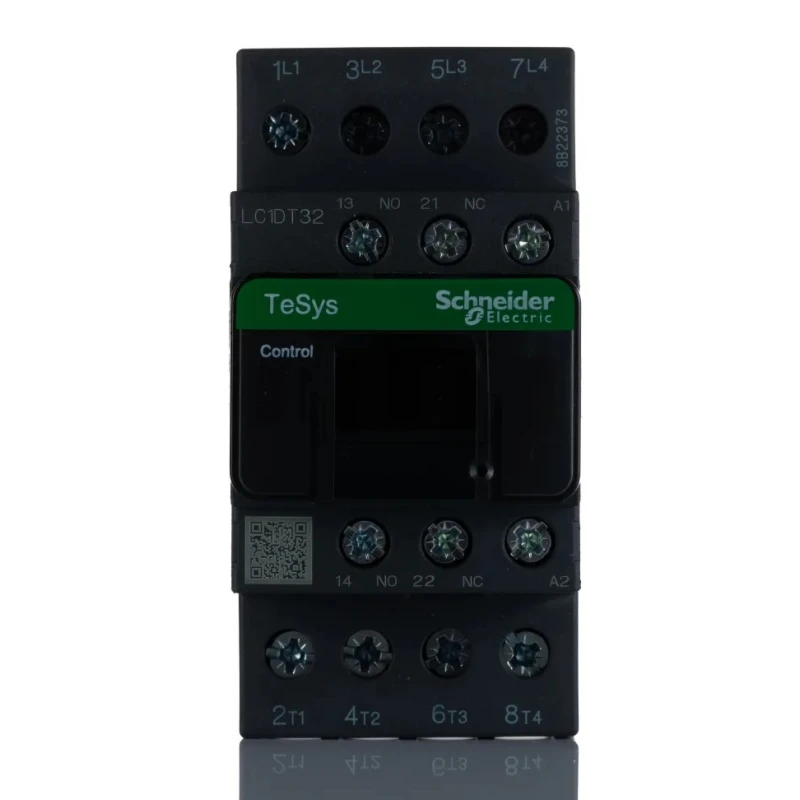

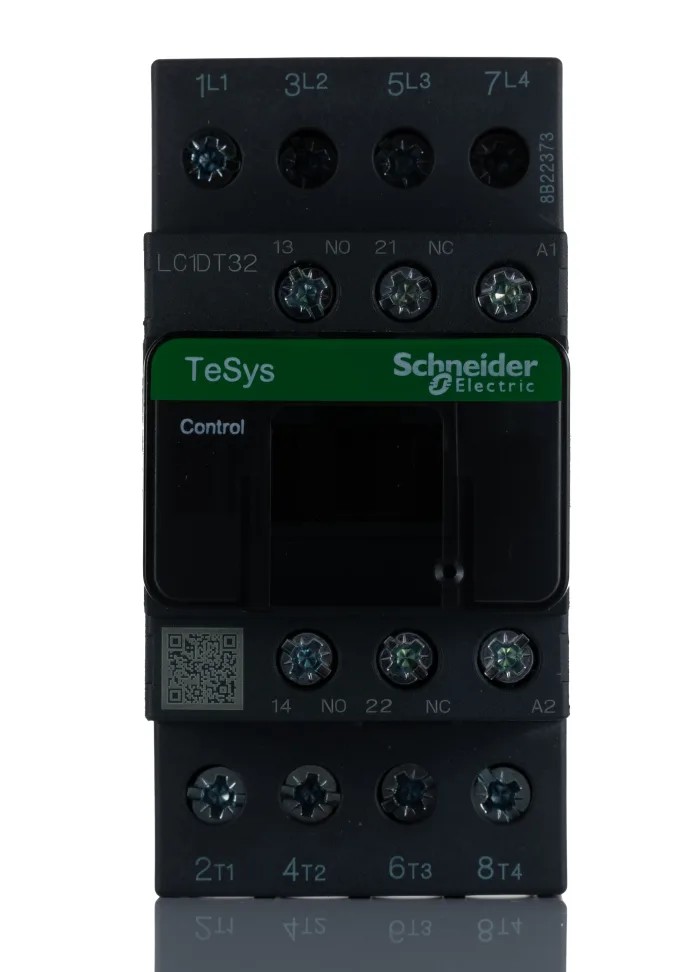

Schneider Electric LC1D Contactor, 4-Pole, 32 A, 230V AC Coil, 1.56 W Power Rating LC1DT32P7
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 91mm |
| Model | LC1DT32P7 |
| Depth | 97mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 1.56W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | UL, RoHS, IEC, EAC, CSA, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
Key Features
- Operates at a coil voltage of 230V AC with a power rating of 1.56W.
- Features 4 normally open (NO) poles for switching multiple circuits simultaneously.
- Suitable for control circuits with voltage rating of 230V AC and contact voltage of 690V AC.
- Equipped with 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
- DIN rail mount type with screw terminals for reliable installation and connection.
- Built with thermoplastic housing for mechanical impact resistance and corrosion protection.
- Designed for disassembly supporting environmental considerations.
- Operates reliably within temperature range of -5°C to 60°C.
Product Description
Schneider Electric LC1DT32P7 Contactor is a high-performance 4-pole contactor designed to handle motor control and resistive load applications efficiently. It operates with a 230V AC coil and has a power rating of 1.56 watts.
This contactor supports up to 32 amperes of contact current and can handle a contact voltage of 690 volts AC, enabling the switching of four separate circuits simultaneously. Its 4 normally open (NO) poles provide quick opening and closing contacts to prevent damage caused by electrical arcs.
Equipped with 2 auxiliary contacts configured as 1 NO and 1 NC, it offers flexibility for control circuit configurations. The device is built for durability with a thermoplastic housing that resists mechanical impacts and corrosion, ensuring long-term reliable service in industrial environments.
The LC1DT32P7 is mounted easily on DIN rails with screw terminal connections, making installation straightforward and secure. It is designed for disassembly in alignment with better world environmental initiatives.
This contactor operates reliably within a temperature range from -5°C to 60°C, making it suitable for diverse industrial, manufacturing, automation, HVAC, and electrical control systems. Its compact size with a length of 91mm, width of 45mm, and depth of 97mm allows efficient use of panel space.
Operates at 230V AC coil voltage with low power consumption. 4-pole design for simultaneous circuit control. Supports contact currents of up to 32A at 690V AC. Includes 2 auxiliary contacts for control flexibility. Durable thermoplastic housing for mechanical and corrosion resistance.
Designed for DIN rail mounting with screw terminals. Certified to UL, RoHS, IEC, EAC, CSA, and CCC standards. Wide operating temperature range from -5°C to 60°C. Compact dimensions ideal for industrial control panels.
Schneider Electric continues to support industrial automation needs with reliable products such as the LC1DT32P7 Contactor. Explore a wide range of control gear and electrical components in the Automation & Control Gear category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1DT32P7 contactor has a power rating of 1.56 watts.
This model can handle a maximum contact voltage of 690 volts AC.
It operates at a coil voltage of 230 volts AC.
The contactor features 4 normally open (NO) poles for switching multiple circuits simultaneously.
This unit operates reliably within a temperature range of -5°C to 60°C.
It is designed for DIN rail mounting with screw terminal connections.
The LC1DT32P7 is equipped with 2 auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC).
It supports a contact current of up to 32 amperes.
The contactor is built with a thermoplastic housing that provides mechanical impact resistance and corrosion protection.
This model is certified to UL, RoHS, IEC, EAC, CSA, and CCC standards.
It is suitable for motor control and resistive load applications in industrial environments.
The dimensions of this contactor are 91mm in length, 45mm in width, and 97mm in depth.
