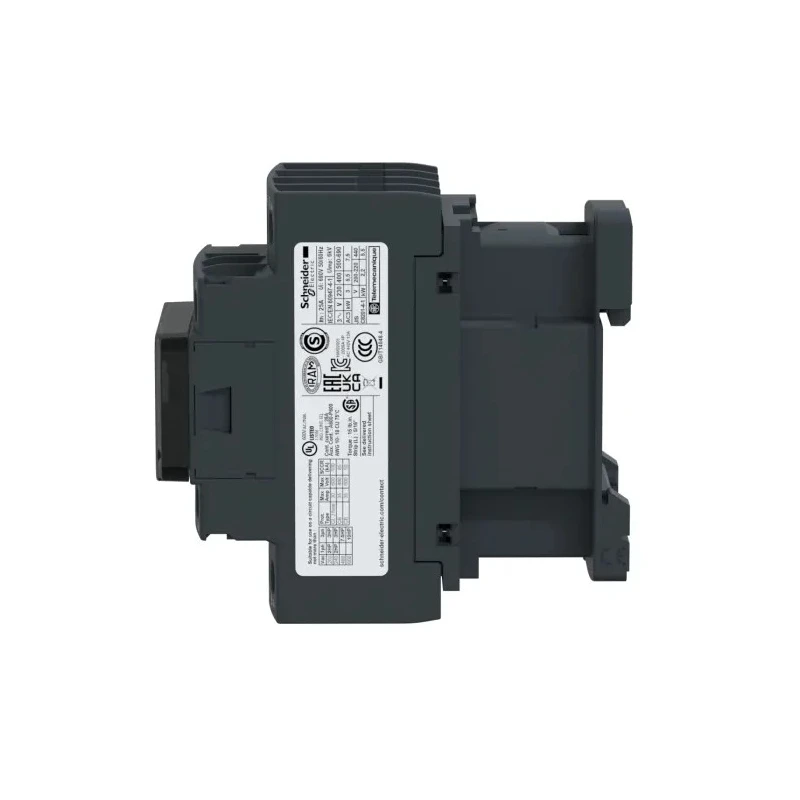

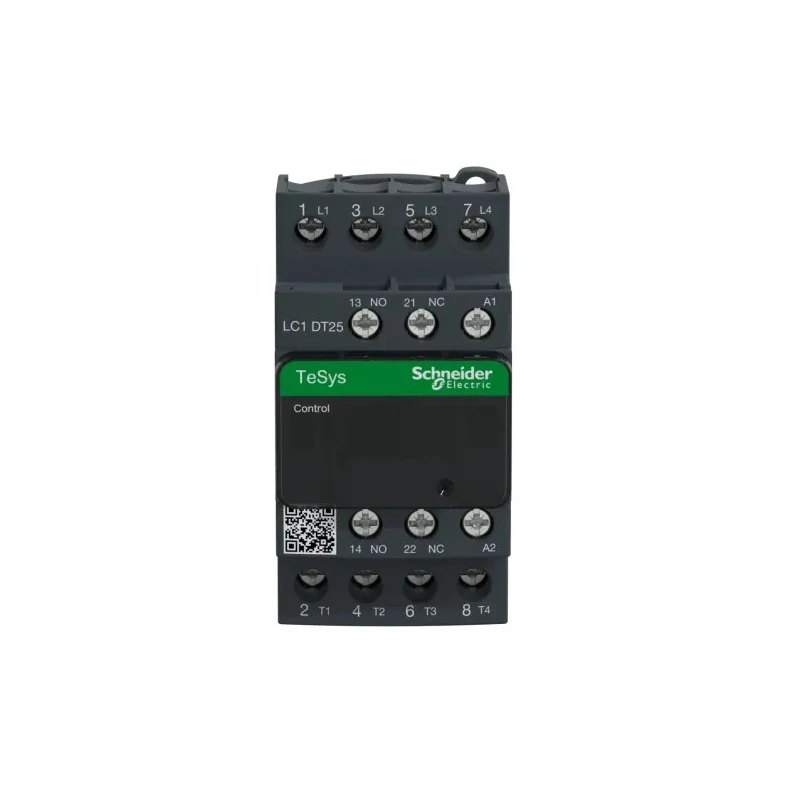

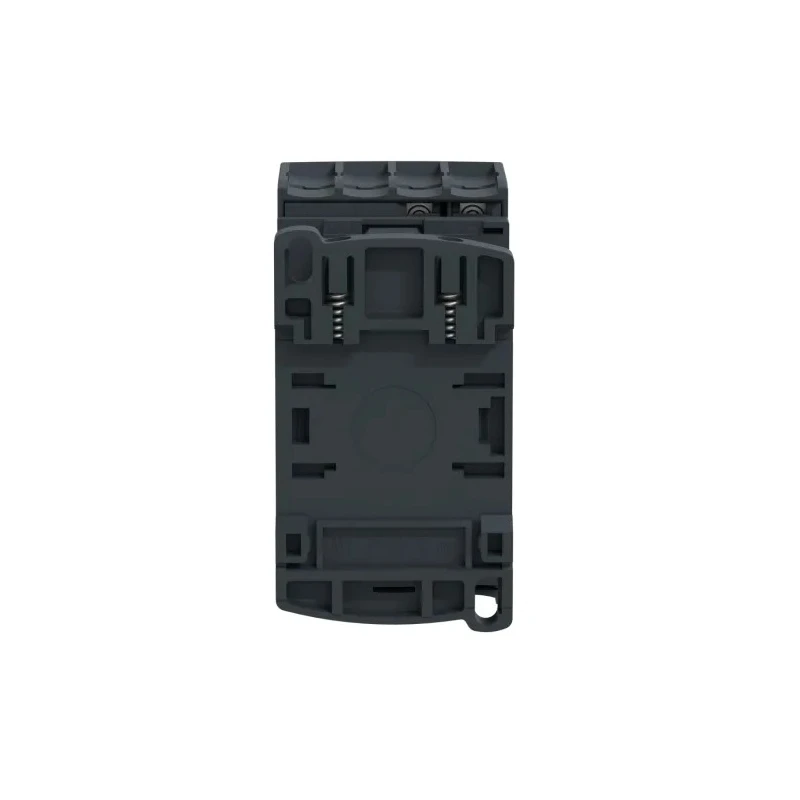

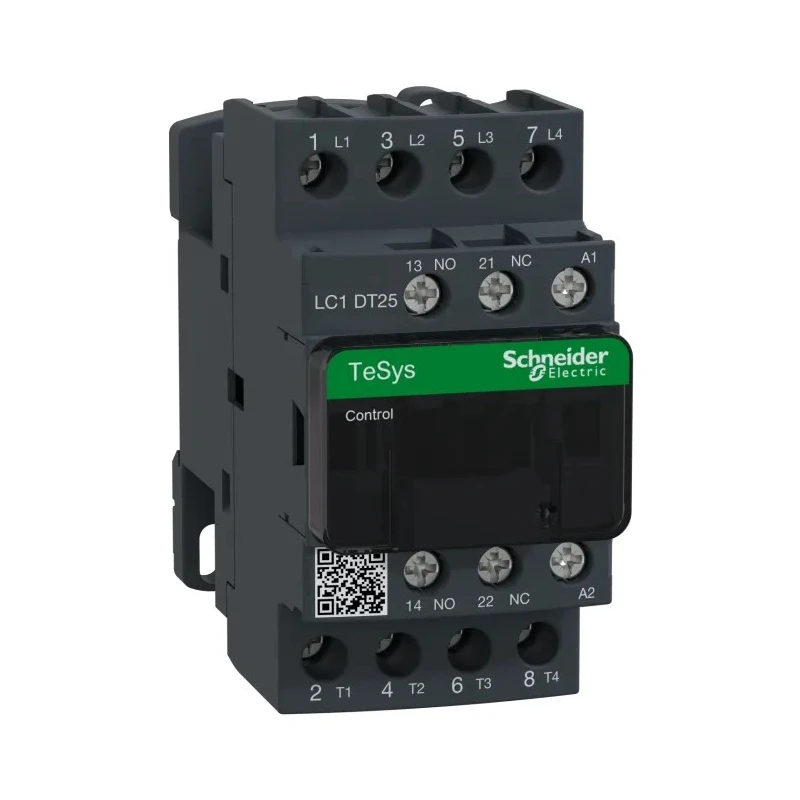

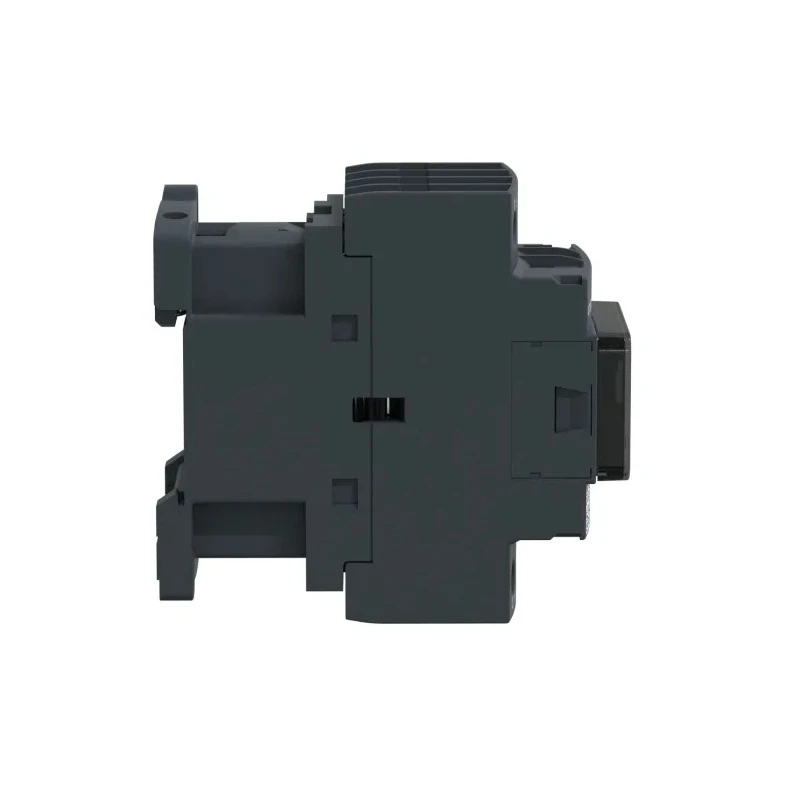

Schneider Electric LC1D 4-Pole Contactor, 230V AC Coil, 25A Current, 1.56W Power Rating
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D |
| Depth | 92mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 1.56W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
Key Features
- Equipped with a 230V AC coil voltage ensuring reliable operation.
- Features 4 poles and a contact current rating of 25A suitable for significant loads.
- Includes 2 auxiliary contacts configured as 1 NO and 1 NC for flexible control.
- Suitable for resistive load applications in industrial environments.
- Compact dimensions of 85mm length, 45mm width, and 92mm depth for easy DIN rail mounting.
- Operates efficiently within a wide temperature range from -40°C to 60°C.
- Power rating is 1.56W at 230V AC coil voltage.
- Designed to meet multiple standards including CCC, CSA, EAC, IEC, RoHS, and UL.
Product Description
Schneider Electric LC1DT25P7 4-Pole Contactor is engineered for efficient motor control applications, featuring a reliable 230V AC coil voltage with a power rating of 1.56W. It is capable of handling a robust operational current of 25A, making it suitable for industrial automation and control systems.
This contactor offers a compact design with dimensions of 85mm in length, 45mm in width, and 92mm in depth, allowing for easy installation on standard DIN rails. It is designed to function in diverse environmental conditions, operating reliably across a wide temperature range from -40°C to +60°C.
Equipped with 4 poles and 2 auxiliary contacts (1 NO and 1 NC), it supports complex control circuits and multiple operational configurations. The contact voltage rating of 690V AC ensures compatibility with high voltage electrical systems.
Manufactured under rigorous quality and environmental standards including CCC, CSA, EAC, IEC, RoHS, and UL, this contactor ensures safety and durability in industrial use. Its screw terminal type provides secure electrical connections.
Applications include motor control, resistive load switching, integration into automated electrical panels, and commercial lighting control systems. This device is suitable for manufacturing plants, HVAC systems, water treatment, and other industrial sectors requiring reliable electrical control.
Equipped with a 230V AC coil voltage ensuring reliable operation. Features 4 poles and a contact current rating of 25A suitable for significant loads. Includes 2 auxiliary contacts configured as 1 NO and 1 NC for flexible control.
Suitable for resistive load applications in industrial environments. Compact dimensions of 85mm length, 45mm width, and 92mm depth for easy DIN rail mounting. Operates efficiently within a wide temperature range from -40°C to 60°C.
Power rating is 1.56W at 230V AC coil voltage. Designed to meet multiple standards including CCC, CSA, EAC, IEC, RoHS, and UL. Designed for disassembly supporting sustainability and ease of maintenance. Explore the Contactor range on EnvMart for high-quality industrial electrical components by trusted brands like Schneider Electric.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 1.56W at a 230V AC coil voltage.
This model can handle a maximum contact current of 25A.
The dimensions of this contactor are 85mm in length, 45mm in width, and 92mm in depth.
The coil voltage for this contactor is 230V AC.
This contactor features 4 poles.
This unit is designed for DIN rail mounting.
The operational temperature range for this contactor is from -40°C to +60°C.
The contact voltage rating of this model is 690V AC.
This contactor includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
This contactor is designed to meet multiple standards including CCC, CSA, EAC, IEC, RoHS, and UL.
This contactor is suitable for motor control and resistive load applications in industrial environments.
This contactor uses screw terminals for secure electrical connections.
