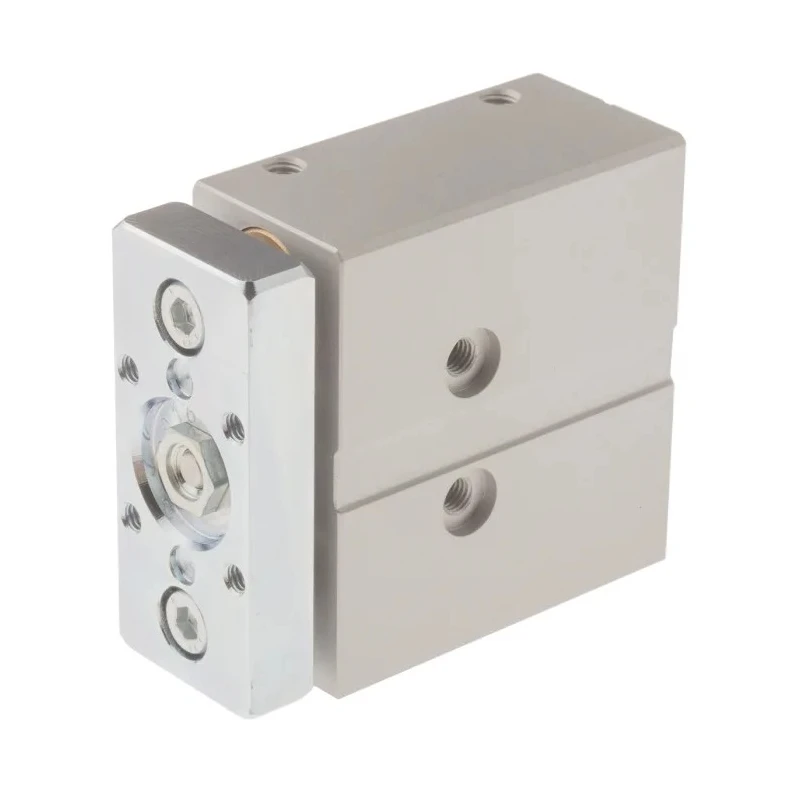

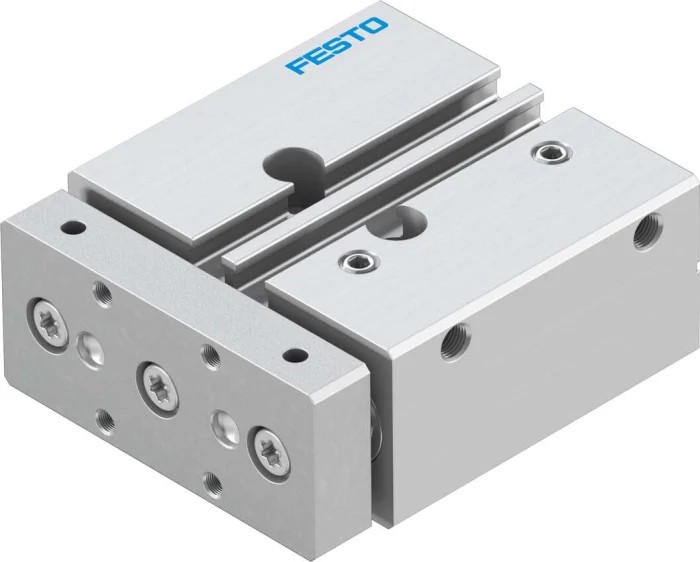

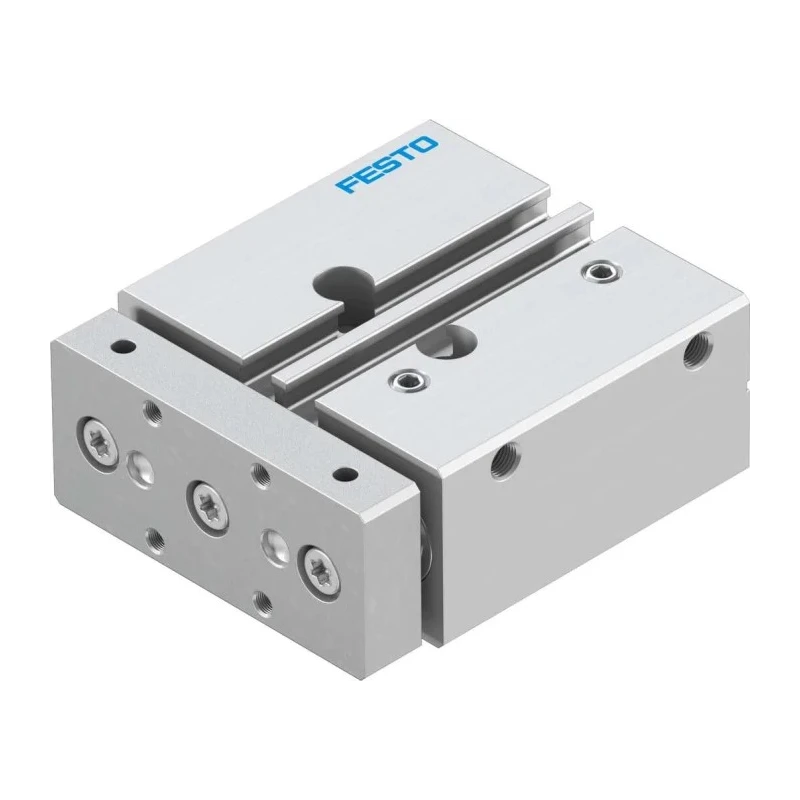

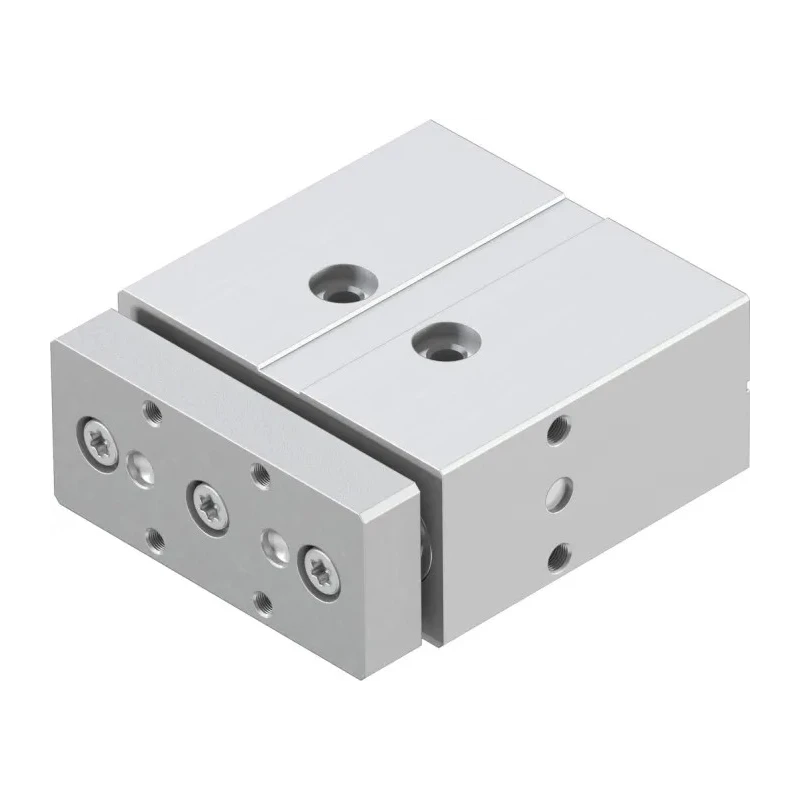

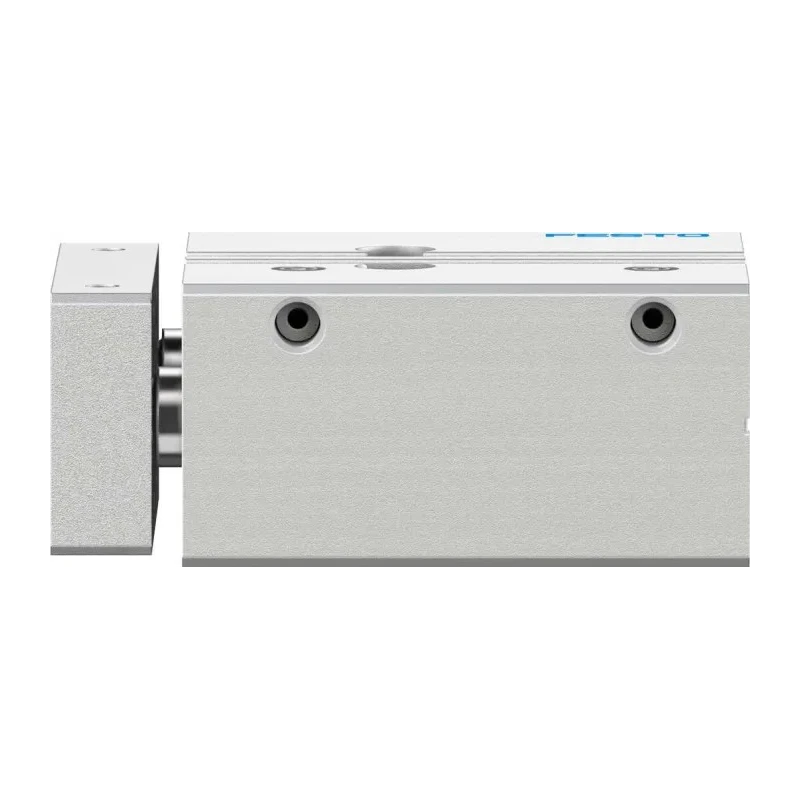

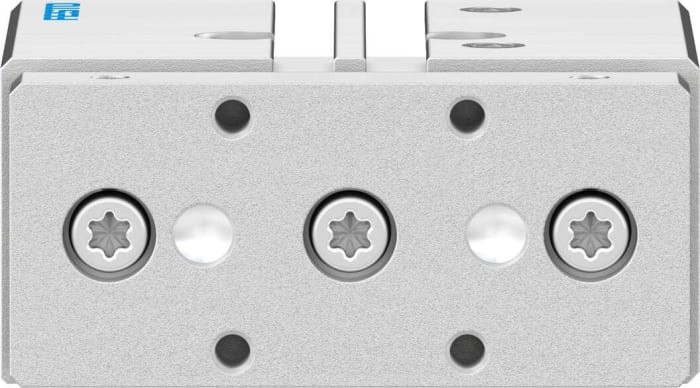

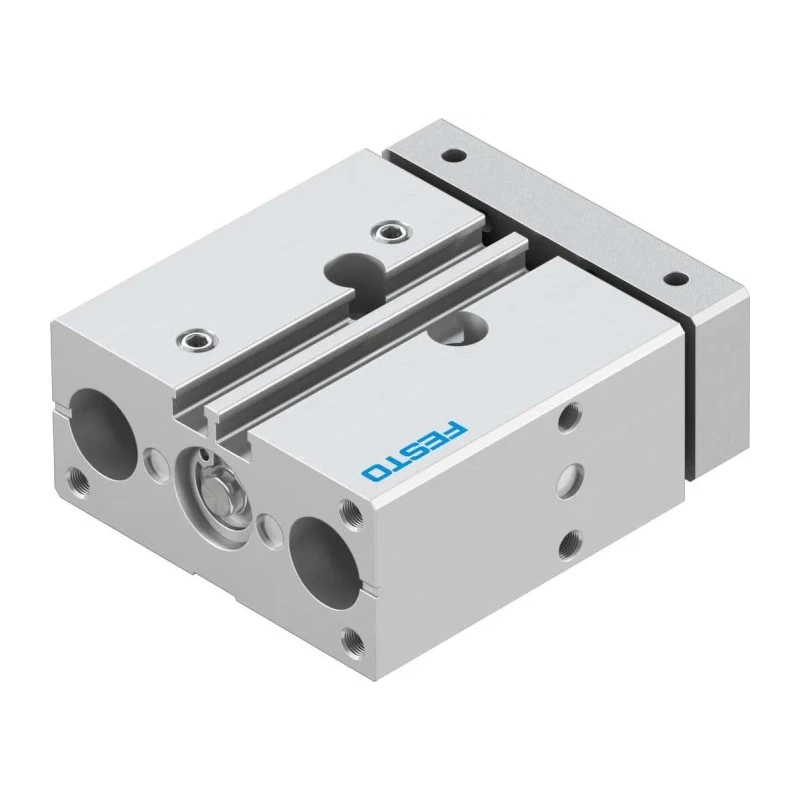

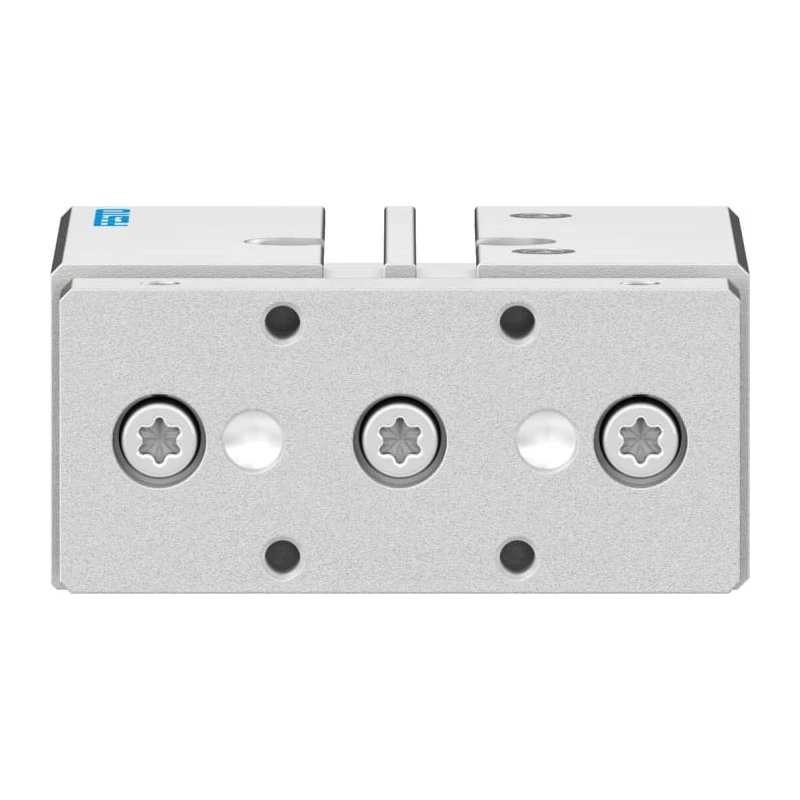

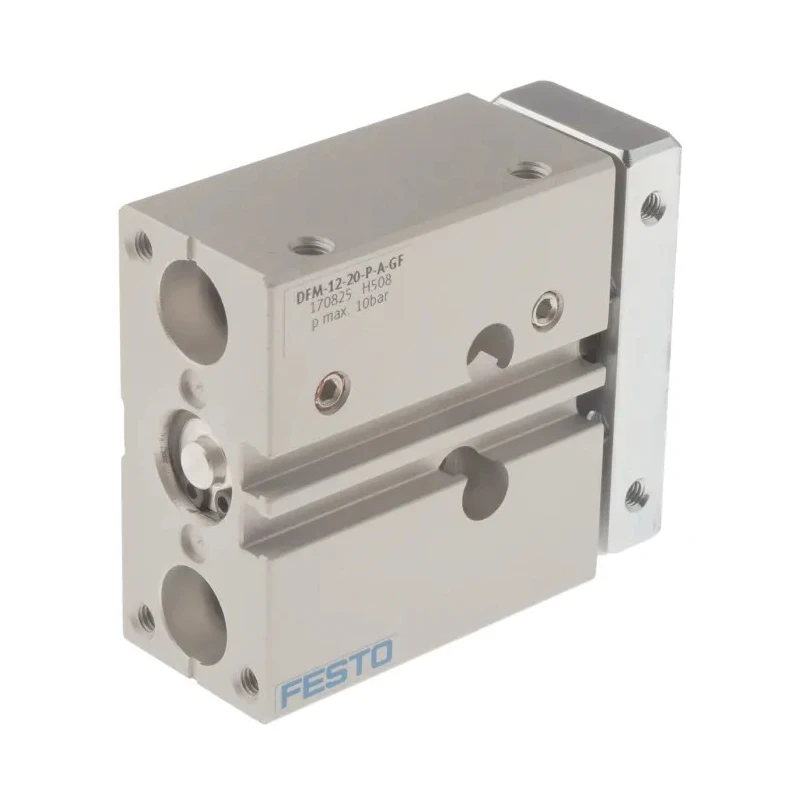

Festo Pneumatic Guided Cylinder 12mm Bore Double Acting 10 bar Max Pressure DFM-12-20-P-A-GF

Festo DFM-12-20-P-A-GF pneumatic guided cylinder is a compact and durable actuator designed for precise linear motion control in industrial applications. With a 12mm bore diameter and 20mm stroke length, it offers reliable double acting performance suitable for hydraulic and pneumatic automation systems.

The cylinder features a robust wrought aluminium alloy body that combines lightweight construction with long-lasting corrosion resistance. Elastomer cushioning technology effectively reduces noise and minimizes impact damage during operation, extending component life and optimizing maintenance intervals.

Designed for demanding environments, this pneumatic guided cylinder operates efficiently within a temperature range from -20°C up to 80°C. The unit supports a maximum operating pressure of 10 bar and a piston speed up to 0.8 meters per second, ensuring responsive actuation for various industrial use cases.

Precision engineering includes a ball bearing guide type and single rod design with an M5 piston rod thread size, enabling stable guided movements essential for applications like automated assembly, packaging lines, medical equipment, automatic doors, and research facilities. Its space-saving size measuring 69 mm length, 60 mm width, and 28 mm height helps integrate seamlessly into compact machinery layouts.

Maximum operating pressure of 10 bar ensures robust performance. Constructed from wrought aluminium alloy for corrosion resistance. Elastomer cushioning reduces noise and impact damage. Compact dimensions of 69x60x28 mm (LxWxH) facilitate installation.

Ball bearing guide type provides precise linear movement. Supports stroke length of 20 mm for accurate actuation. Operating temperature range from -20°C to 80°C for versatility. Single rod type with M5 piston rod thread size.

Compliance with industrial standards including VDMA24364-B1/B2-L, RoHS, ISO 8573-1:2010 (7:4:4), and Cleanroom Class 6.

This Pneumatic Guided Cylinder from Festo is ideally suited for industrial automation in manufacturing, packaging, laboratory, and commercial applications requiring precise movement control and durability. Explore EnvMart's extensive pneumatic cylinder selection to find compatible components and accessories for your systems.
