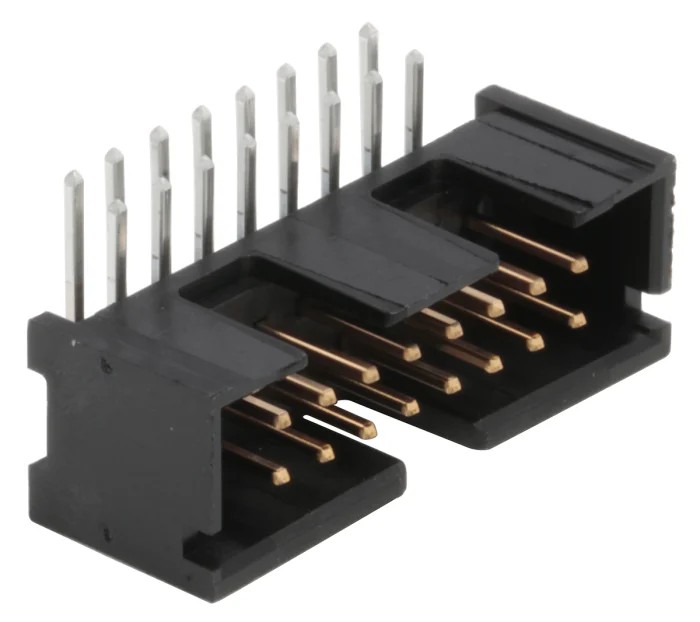

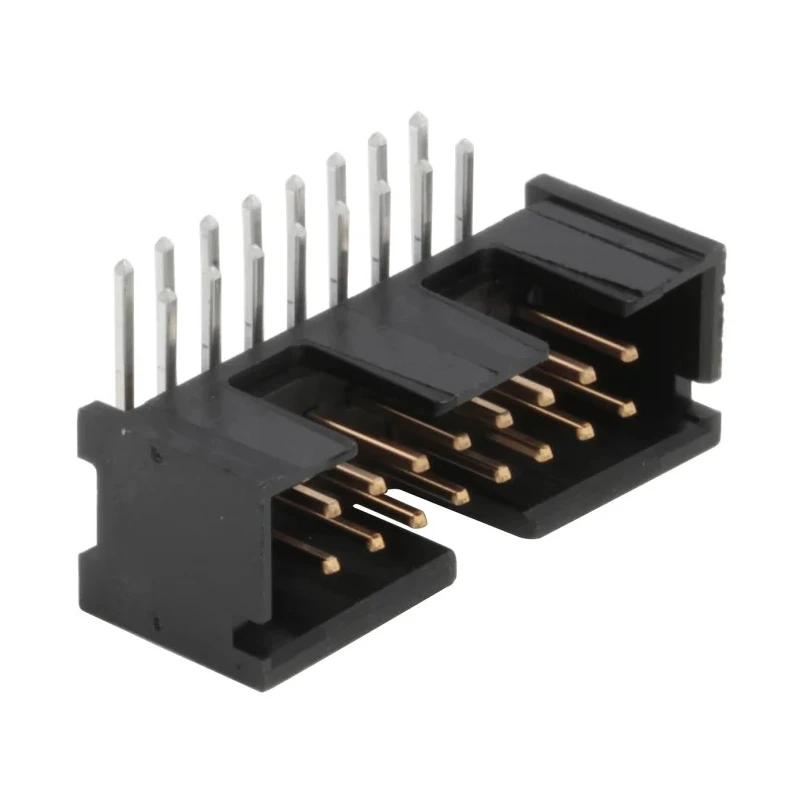

TE Connectivity AMP-LATCH Series Right Angle Through Hole PCB Header 16 Contacts 2.54 mm Pitch 2 Row Shrouded 5103310-3

TE Connectivity 5103310-3 AMP-LATCH Series Right Angle Through Hole PCB Header is a high-quality connector designed for reliable wire-to-board connections in a wide range of industrial and electronic applications. It features a 16-contact configuration with a 2.54 mm pitch and 2 rows arranged in a right angle orientation, making it suitable for compact printed circuit board layouts.

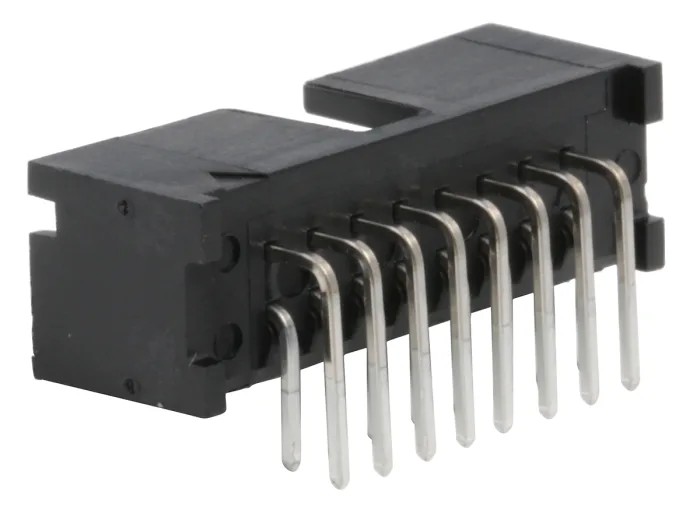

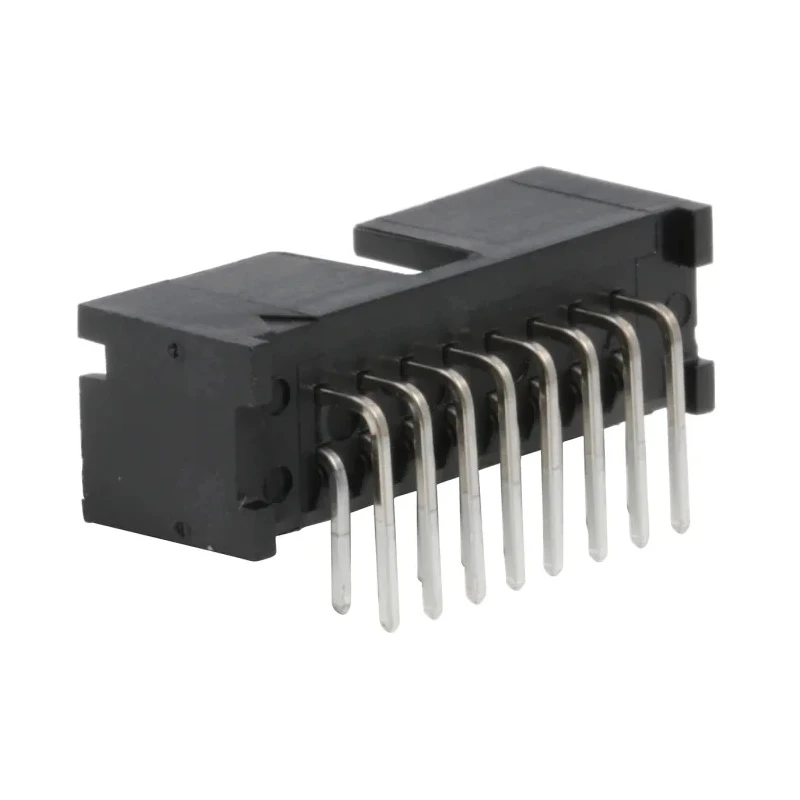

The connector housing is crafted from flame retardant 94V-0 rated thermoplastic that ensures durability and safety under demanding conditions. The contacts are made of copper alloy and plated with gold to deliver superior conductivity and resistance to corrosion over the device lifetime. This header incorporates kinked solder tails to secure the connection firmly during through-hole PCB mounting processes.

The AMP-LATCH design includes centre and dual polarization slots to guarantee accurate mating with IDC ribbon cable connectors, minimizing misalignment and connection errors. Additionally, board standoffs facilitate excess flux removal during soldering, improving joint quality and long-term reliability.

This PCB header operates effectively within a temperature range of -55°C to 105°C, making it highly adaptable for industrial, networking, storage, medical, business equipment, and electrical testing environments. It supports a current rating of 1A and a voltage rating of 250V, meeting standard operational requirements for these applications.

The 16-contact, 2-row, and shrouded design enable reliable and secure connections while optimizing PCB density and minimizing space usage. Applications include PCBs in computers, industrial control systems, medical devices, storage solutions, and networking equipment.

Features a low profile design with AMP-LATCH series construction for secure connections. Shrouded housing made from flame retardant 94V-0 rated thermoplastic material. The header offers a 2.54 mm centerline pitch with a right angle orientation and two rows of contacts.

Gold plated copper alloy contacts ensure excellent conductivity and corrosion resistance. Kinked solder tails provide secure through-hole mounting and reliable solder joints. Capable of operating from -55°C to 105°C, suitable for harsh environments.

Designed to mate accurately with IDC ribbon cable connectors featuring centre and dual polarization slots. Board standoffs facilitate flux removal for cleaner soldering. Ideal for use in PCs, business equipment, medical instruments, networking, industrial controls, and electrical testing devices.
