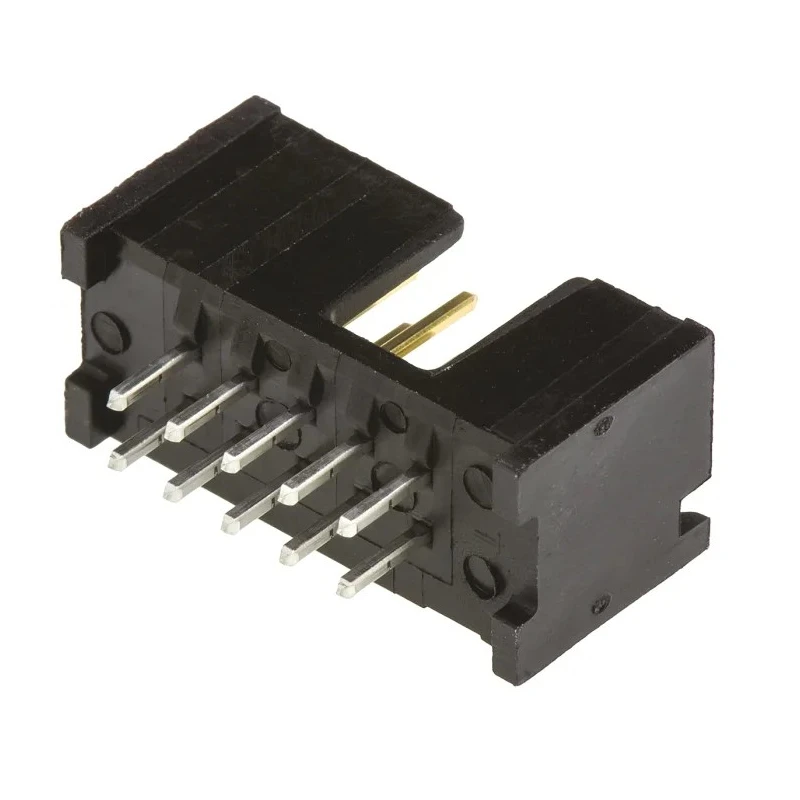

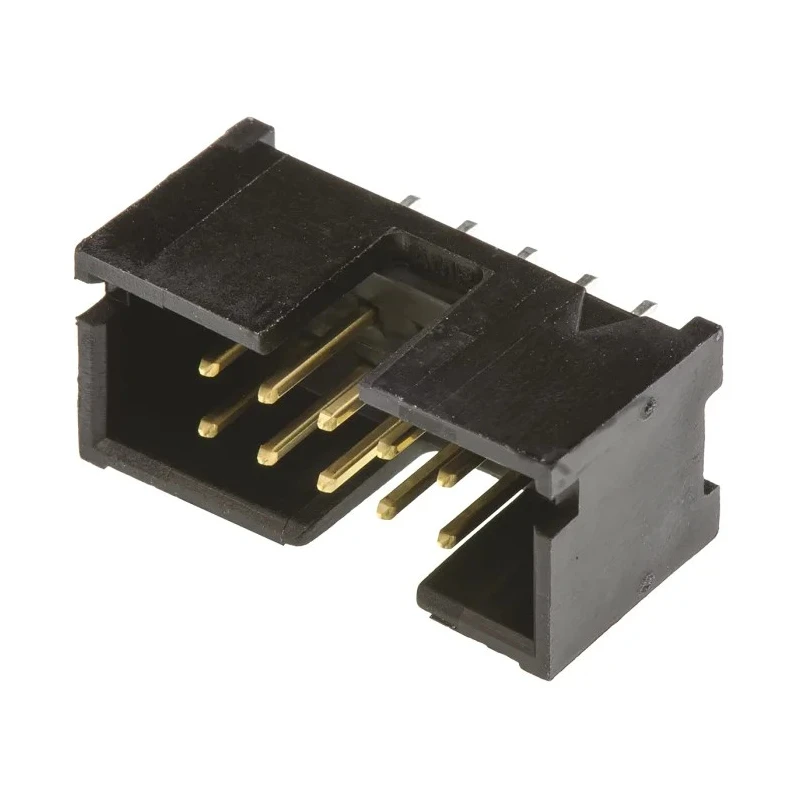

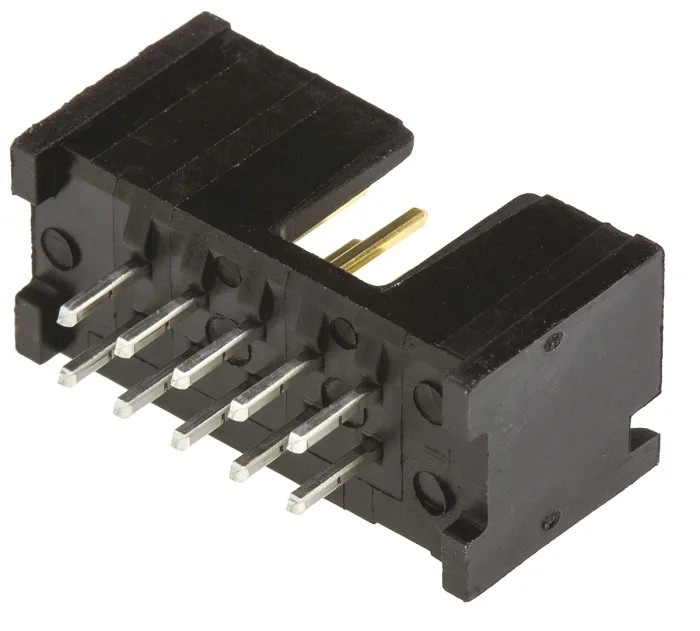

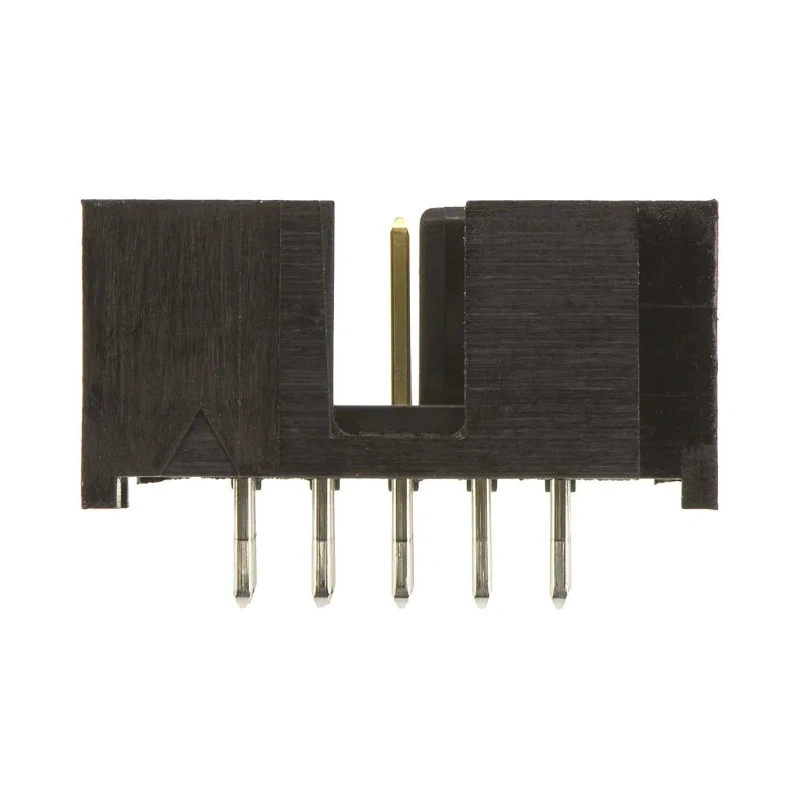

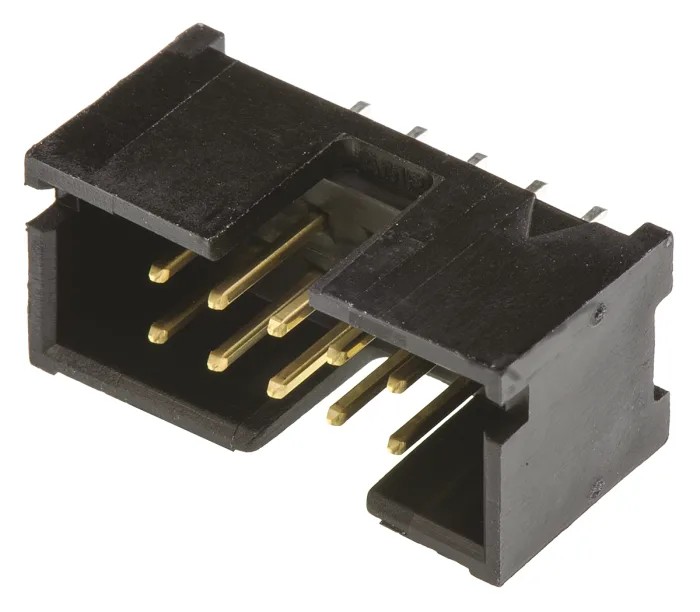

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 10 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded 5103308-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.05mm |
Key Features
- Features a low profile design with centre and dual polarization slots for accurate IDC ribbon cable mating.
- Constructed with flame retardant 94V-0 thermoplastic housing for safety and durability.
- Gold plated copper alloy contacts ensure reliable 1A current carrying capacity.
- Through hole mounting with kinked solder tails provides a secure PCB connection.
- Operating temperature range from -55°C to 105°C suitable for diverse environments.
- Shrouded male contact with 3.05 mm tail pin length enhances connector protection.
- Board standoffs allow effective flux removal during soldering processes.
- Compatible with PCs, business, medical equipment, networking, industrial controls, and appliances.
Product Description
TE Connectivity 5103308-1 AMP-LATCH Series Straight Through Hole PCB Header features 10 gold plated copper alloy male contacts spaced at a 2.54 mm pitch in 2 rows. Designed with a low profile thermoplastic housing rated at flame retardant 94V-0, this connector supports a 1A current rating and withstands temperatures ranging from -55°C up to 105°C. Its shrouded design with centre and dual polarization slots ensures accurate alignment and mating with IDC ribbon cable connectors. The through hole mounting with kinked solder tails secures the header firmly onto the PCB with board standoffs facilitating flux removal during soldering.
This PCB header is ideal for a wide variety of industrial, commercial, and electronic applications including use in PCs, business machines, medical devices, storage systems, network equipment, industrial controls, appliances, and electrical testing setups. The AMP-LATCH series connectors combine durability, reliability, and electrical integrity for demanding environments.
Low profile housing constructed from flame retardant 94V-0 thermoplastic material. Dual polarizing slots for precise mating and reduced misconnection risks. Gold plated copper alloy contacts provide consistent electrical performance.
Through hole mounting type with kinked solder tails for secure PCB attachment. Operating voltage up to 250V and current rating of 1 amp. Temperature tolerance from -55°C to 105°C for broad operational range. Suitable for use in industrial, laboratory, networking, and commercial electronics.
Board standoffs facilitate effective solder flux removal and enhance manufacturing quality. For comprehensive connectivity solutions, explore EnvMart categories for PCB Headers and related electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header has a current carrying capacity of 1A.
The maximum operating temperature for this model is 105°C.
The contacts in this PCB header are spaced at a pitch of 2.54 mm.
The AMP-LATCH Series header features 10 contacts.
This PCB header uses through hole mounting with kinked solder tails for secure attachment.
The housing is made from flame retardant 94V-0 thermoplastic, and the contacts are made of gold plated copper alloy.
The operating voltage for this PCB header is up to 250V.
The tail pin length of the contacts is 3.05 mm.
This model uses a wire-to-board connector system.
Yes, this PCB header is suitable for a wide variety of industrial applications, including networking and industrial controls.
The minimum operating temperature for this model is -55°C.
Yes, this connector features dual polarization slots for accurate IDC ribbon cable mating and reduced misconnection risks.
