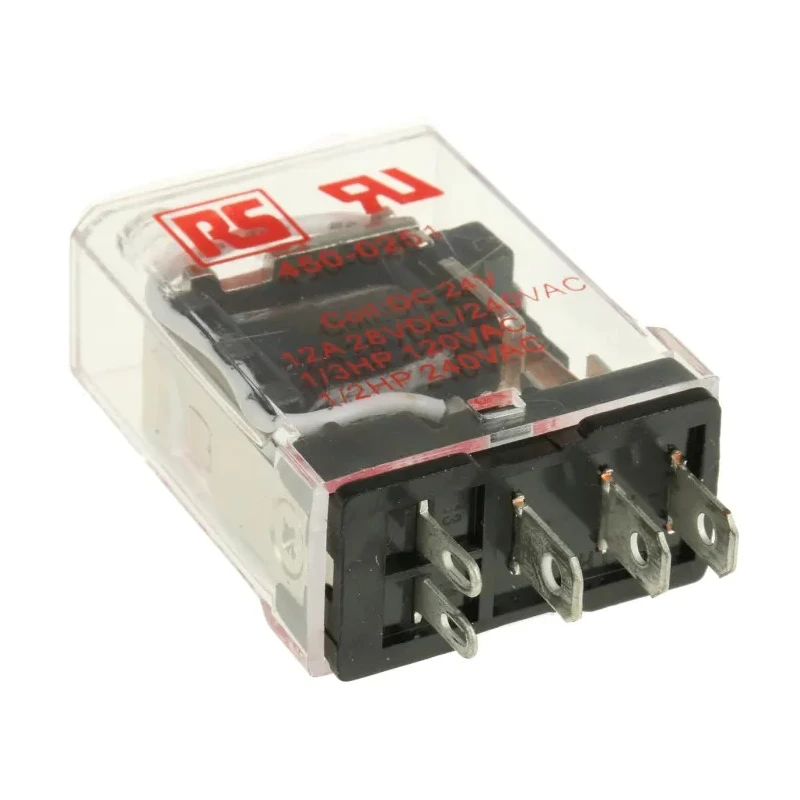

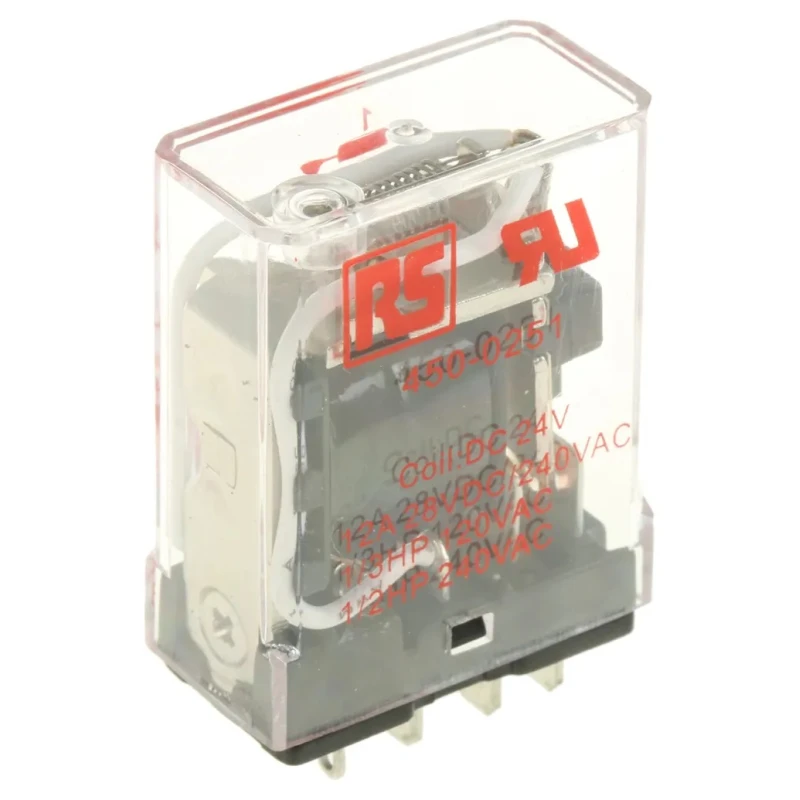

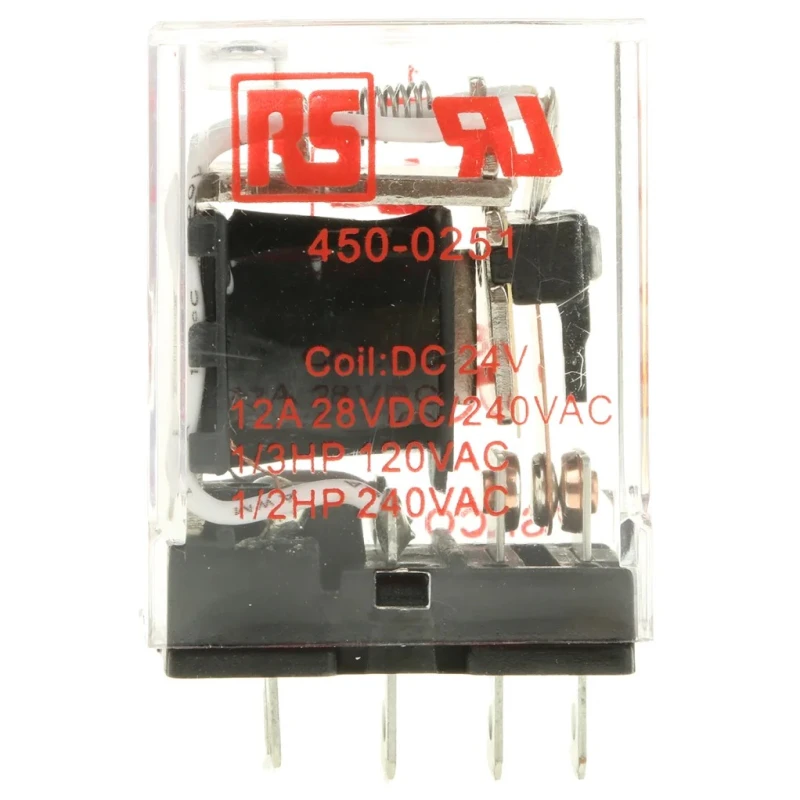

RS PRO PCB Power Relay 24V dc Coil, 15A Switching Current, SPDT 450-0251
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Height | 35.6mm |
| Length | 27mm |
| Model | 450-0251 |
| Width | 13.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 15A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ max |
| Standards/Approvals | UL, CE, EN |
| Mechanical Life | 10 million operations |
| Coil Resistance | 750Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 900mW |
| Electrical Life | 100000 operations |
| 10A 1PCO RELAY 24VDCBrand | Idec |
| ABB Non-Latching Relay, 15A Switching CurrentBrand | ABB |
Key Features
- Coil voltage rated at 24V dc for stable operation.
- Single Pole Double Throw (SPDT) contact configuration provides flexible switching.
- Supports switching current of 15A and switching power of 3.6kVA.
- Operates reliably between -45°C to 70°C for diverse environmental conditions.
- PCB mounting type with PCB pin terminals ensures easy circuit integration.
- Coil resistance of 750Ω and coil power consumption of 900mW.
- Contact material made of silver alloy ensuring conductivity and durability.
- Tested for mechanical life of 10 million operations and electrical life of 100000 operations.
Product Description
The RS PRO 450-0251 PCB Power Relay is designed for efficient and reliable switching in electrical and industrial applications. Featuring a 24V dc coil and a single pole double throw (SPDT) configuration, it provides a switching current capacity of 15A and switching power up to 3.6kVA. This relay is suitable for mounting onto PCBs with PCB pin terminals, enabling seamless integration into electronic circuits.
The relay operates effectively within a wide temperature range from -45°C to 70°C, supporting both harsh and moderate environmental conditions. Its coil resistance is 750Ω, and coil power consumption is a low 900mW, ensuring energy-efficient performance.
Built with a silver alloy contact material, the relay ensures excellent conductivity and durability. The compact form factor with dimensions of 27mm in length, 13.5mm width, and 35.6mm height, enables space-saving designs in industrial and automation systems.
This model has been subjected to rigorous performance testing, offering a mechanical life of up to 10 million operations and electrical life of 100000 operations, highlighting its robustness for long-term use in industrial and electrical control systems.
Common applications include industrial automation, signal conditioning, HVAC control, and electrical distribution systems demanding reliable relay switching solutions. Coil voltage rated at 24V dc for stable operation. Single Pole Double Throw (SPDT) contact configuration provides flexible switching.
Supports switching current of 15A and switching power of 3.6kVA. Operates reliably between -45°C to 70°C for diverse environmental conditions. PCB mounting type with PCB pin terminals ensures easy circuit integration. Compact dimensions: 27mm length, 13.5mm width, and 35.6mm height.
Coil resistance of 750Ω and coil power consumption of 900mW. Contact material made of silver alloy ensuring conductivity and durability. Tested for mechanical life of 10 million operations and electrical life of 100000 operations.
Suitable for industrial, automation, electrical, and signal conditioning applications. Explore the RS PRO range for more industrial electrical components and Power Relays to meet your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a coil voltage rating of 24V dc, which ensures stable operation.
It supports a maximum switching current of 15A.
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for flexible switching applications.
The relay has dimensions of 27mm in length, 13.5mm in width, and 35.6mm in height.
It operates reliably within a temperature range of -45°C to 70°C.
The coil resistance is 750Ω, which contributes to its energy-efficient performance.
The coil power consumption is 900mW.
This relay has an electrical life rating of 100,000 operations.
The contact material is made of silver alloy, ensuring good conductivity and durability.
It is designed for PCB mounting with PCB pin terminals, facilitating easy integration into circuits.
This model is compliant with UL, CE, and EN standards.
It is suitable for various applications including industrial automation, signal conditioning, HVAC control, and electrical distribution systems.
