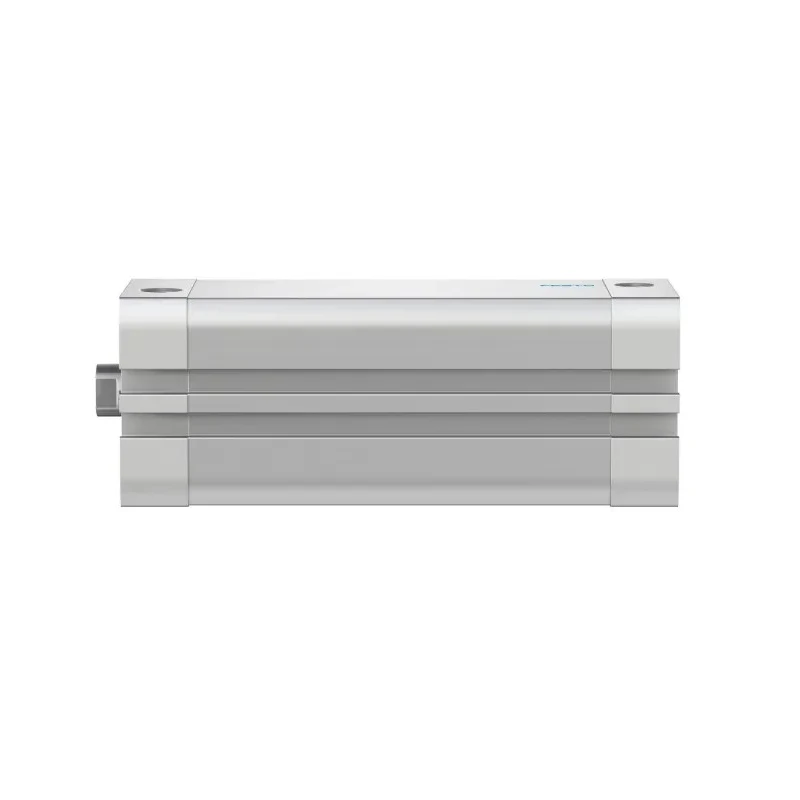

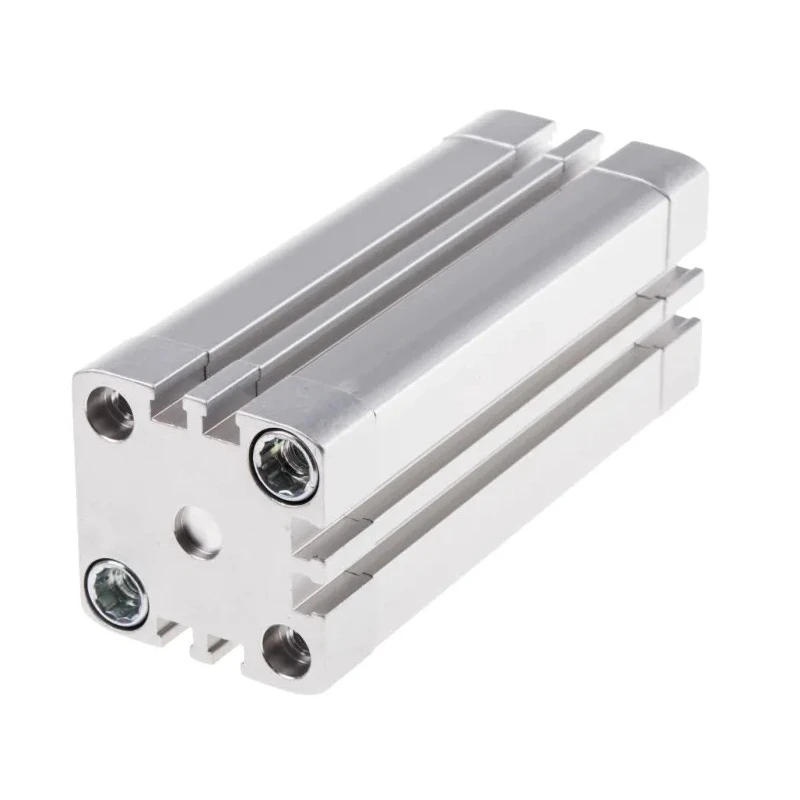

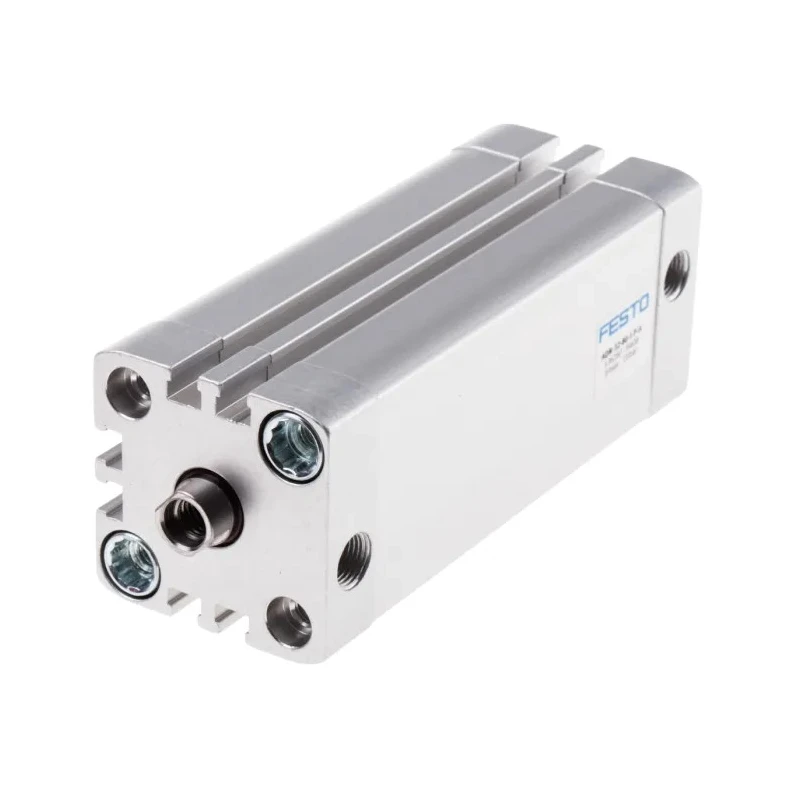

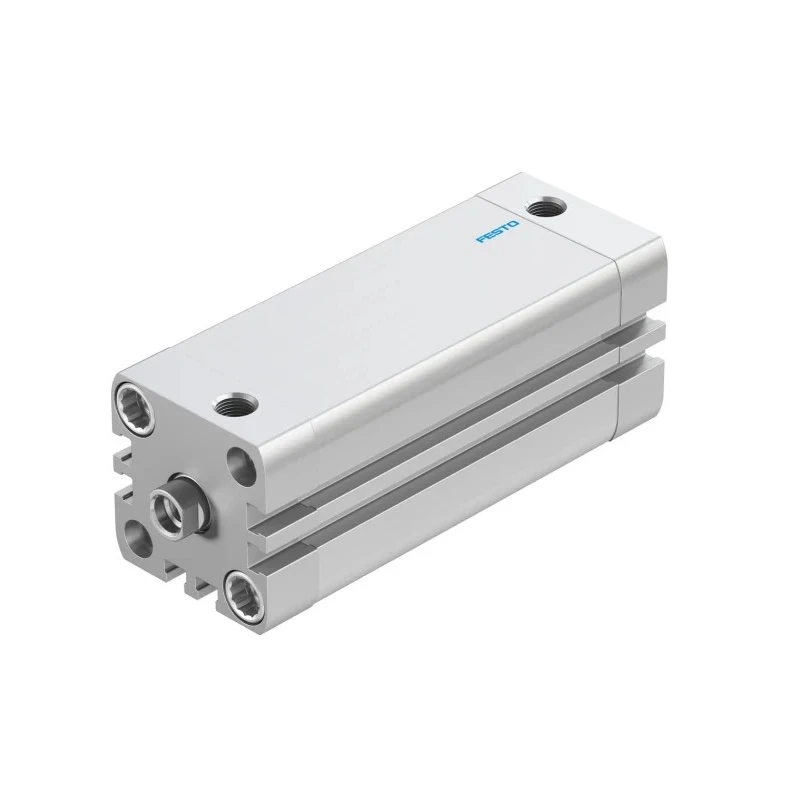

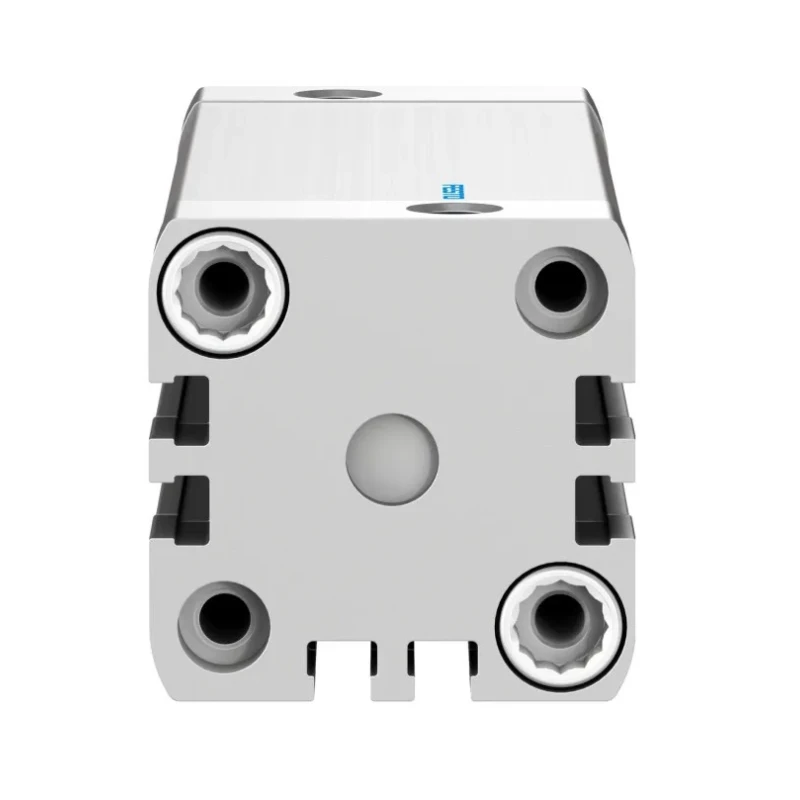

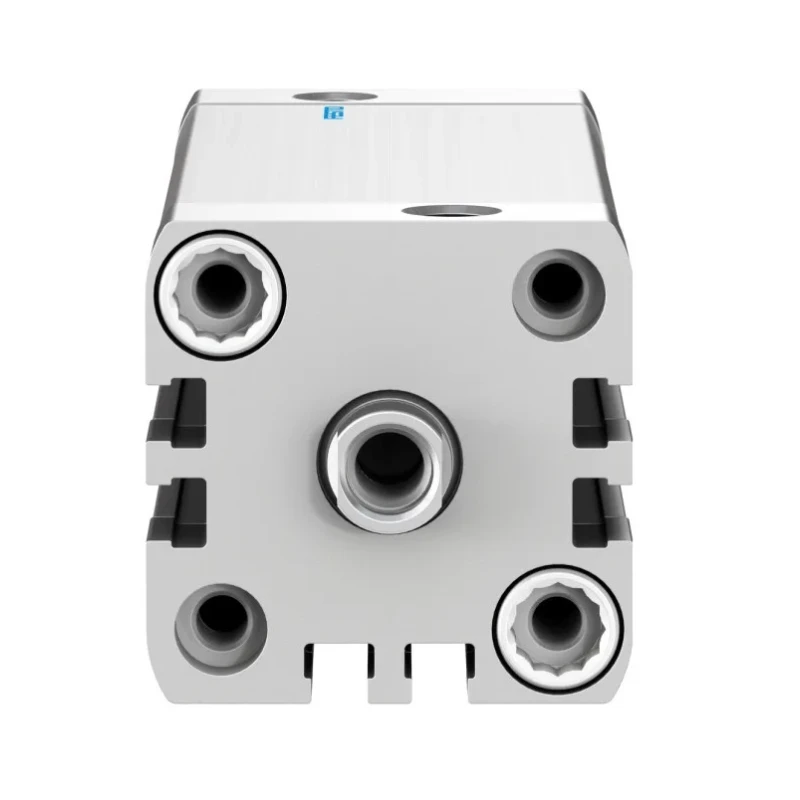

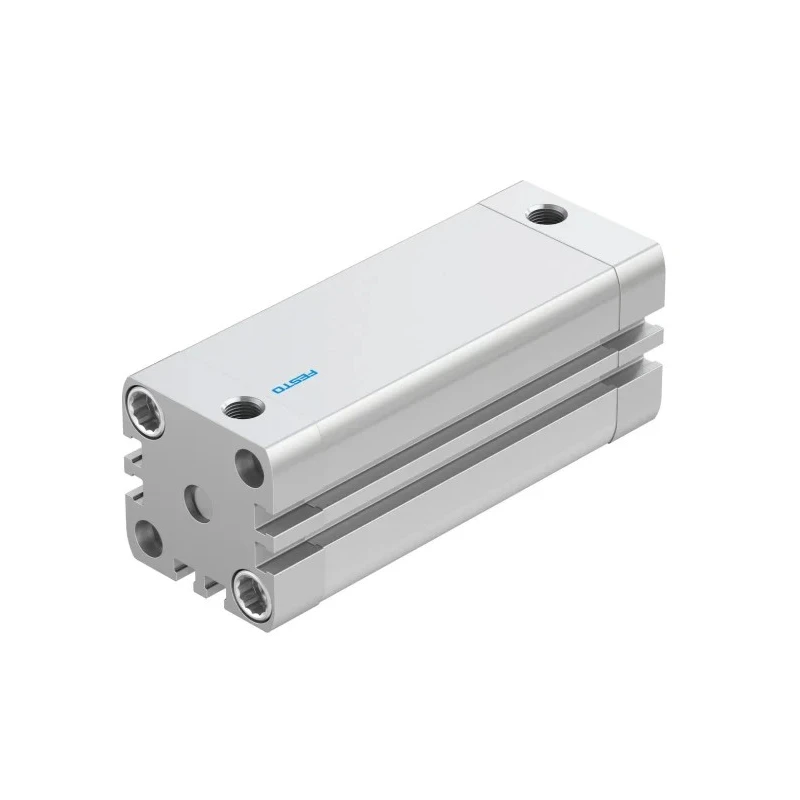

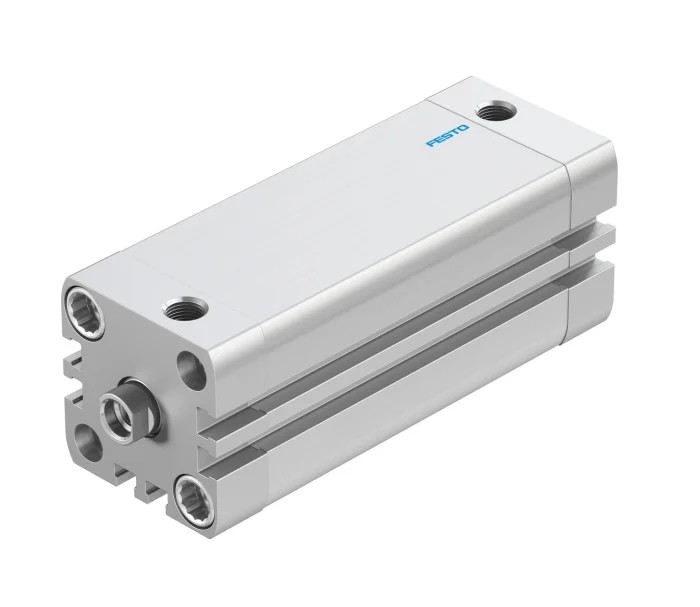

Festo Pneumatic Cylinder Double Acting 32mm Bore 80mm Stroke Aluminium Body ADN-32-80-I-P-A

Free Delivery in India | Lowest Global Shipping Charges

Festo Pneumatic Cylinder Double Acting 32mm Bore 80mm Stroke Aluminium Body ADN-32-80-I-P-A

Name: Festo Pneumatic Cylinder Double Acting 32mm Bore 80mm Stroke Aluminium Body ADN-32-80-I-P-A
Brand: FESTO
SKU: 186800
Price: 122.11 USD
Availability: InStock



Category Pneumatic Cylinders & Actuators Brand FESTO Condition New

Specifications

Country of Origin	Germany
Brand	Festo
Body Material	Aluminium
Maximum Operating Pressure	10 bar
Height	47mm
Length	130mm
Model	ADN-32-80-I-P-A
Width	47mm
Mount Type	Through Hole
Series	ADN
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-20°C
Stroke Length	80mm
Bore Diameter	32mm
Rod Type	Single
Action Type	Double Acting
Standards/Approvals	ISO 21287, RoHS
Cushioning Type	Cushioning Rings
Piston Rod Gender	Female
Piston Rod Thread Size	1/8 in G

Key Features

This cylinder features an anodised aluminium body for corrosion resistance in industrial environments.
It operates at a maximum pressure of 10 bar, suitable for precise control tasks.
The double acting design uses air pressure to extend and retract the piston rod.
Compact dimensions of 47mm width, 47mm height, and 130mm length allow easy integration.
It incorporates cushioning rings for smooth operation and vibration absorption.
The piston rod is single type with a female M8 thread compatible with proximity sensors.
Suitable for both clean and lubricated compressed air applications.
Operates in temperatures ranging from -20°C up to 80°C.

Product Description

Festo ADN-32-80-I-P-A pneumatic cylinder is a precision-engineered double acting actuator designed for industrial automation tasks requiring reliable positioning and force control. Featuring a 32mm bore diameter and 80mm stroke length, it delivers a maximum force of 483N to efficiently handle medium load applications.

The cylinder body is crafted from anodised aluminium, providing excellent corrosion resistance for use in harsh environments. Its compact form factor - 47mm width, 47mm height, and 130mm length - makes it ideal for integration within robotic assemblies and other machinery where space is limited.

Designed for versatility, the ADN-32-80-I-P-A operates with double acting pneumatic air supply allowing both extension and retraction forces, improving control and performance. The inclusion of cushioning rings at both ends attenuates vibration and shock, protecting sensitive equipment during operation.

The single piston rod features a female M8 thread that supports direct attachment of proximity sensors, facilitating quick and accurate position sensing. This pneumatic cylinder supports operation within a temperature range of -20°C to 80°C, suitable for various industrial and manufacturing conditions.

Applicable in bottling plants, product transportation systems, and positioning mechanisms, this pneumatic cylinder excels in medium precision tasks within manufacturing and automation industries.

This pneumatic cylinder has an anodised aluminium body that resists corrosion. It operates at up to 10 bar maximum pressure for efficient force transmission. The compact size supports easy mounting in automated machinery and robotics.

Double acting operation allows air-powered extension and retraction of the piston rod. Cushioning rings ensure smooth motion and reduce vibration impact. Single piston rod design with female M8 threading supports sensor mounting.

Suitable for both clean and lubricated compressed air systems. Compliant with ISO 21287 and RoHS standards. Explore EnvMart’s extensive selection of pneumatic cylinders and actuators designed for varied industrial applications.
