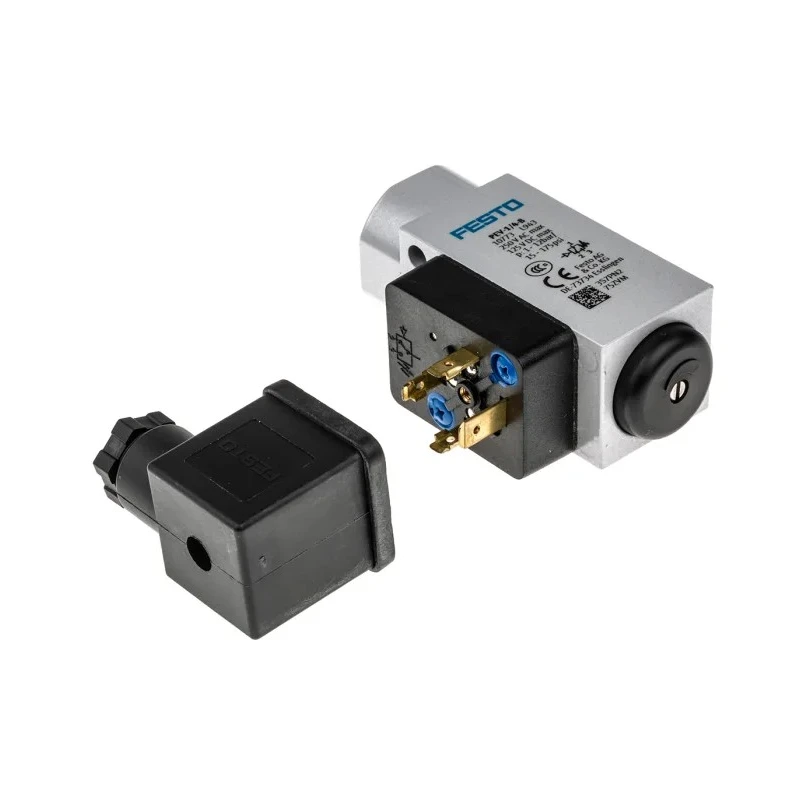

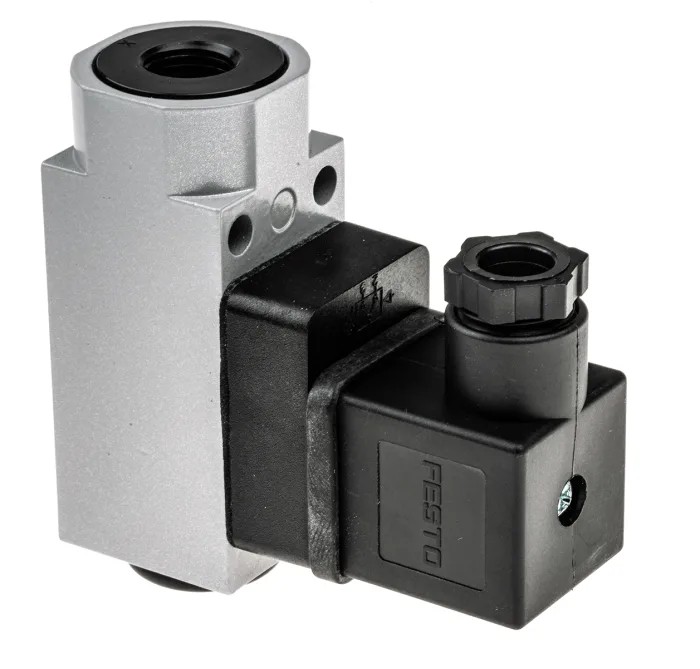

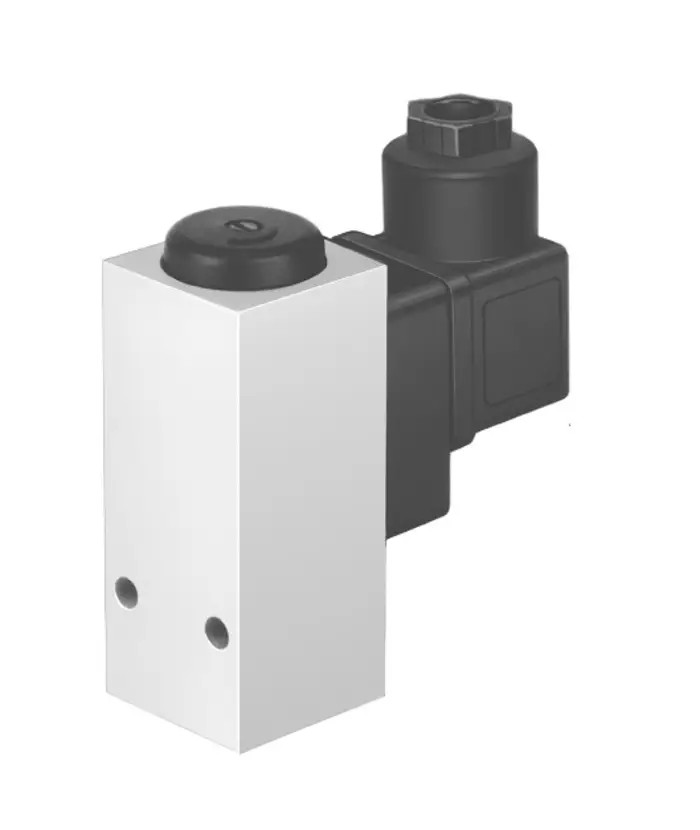

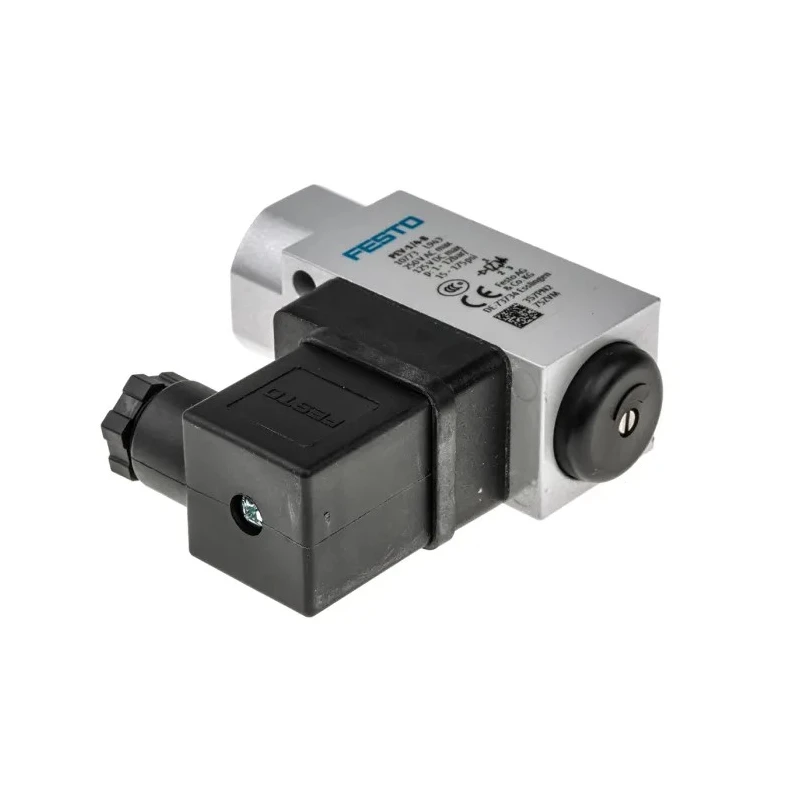

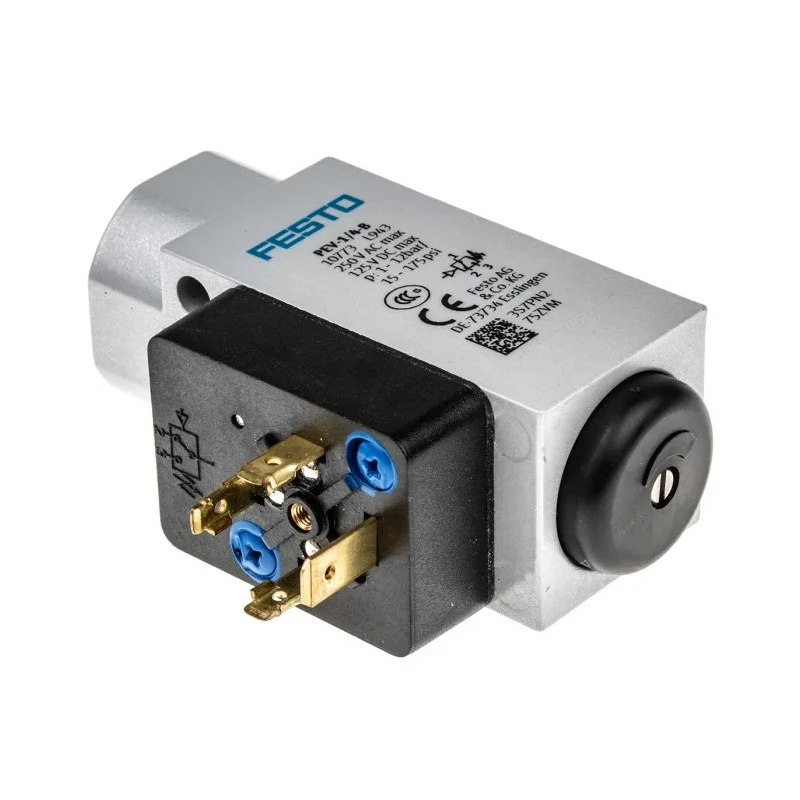

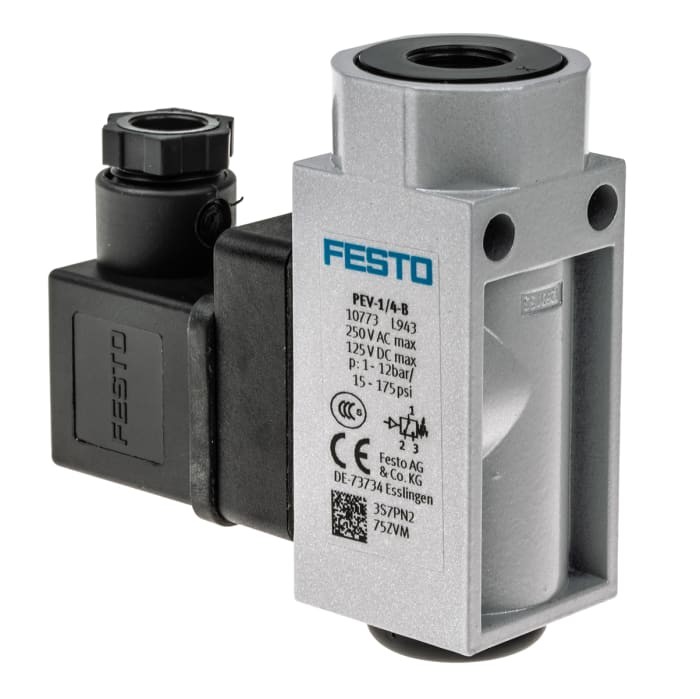

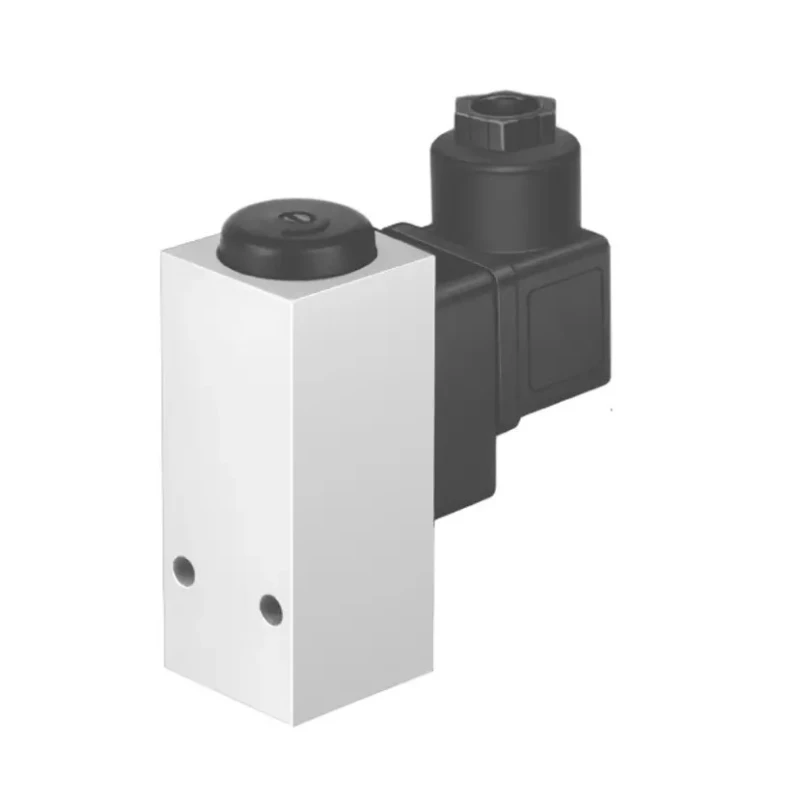

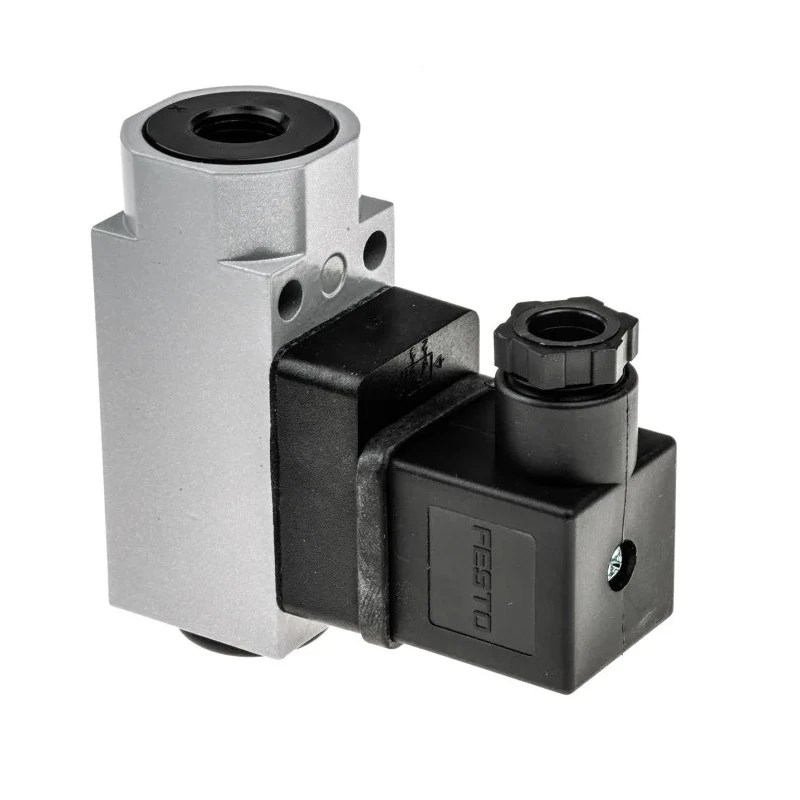

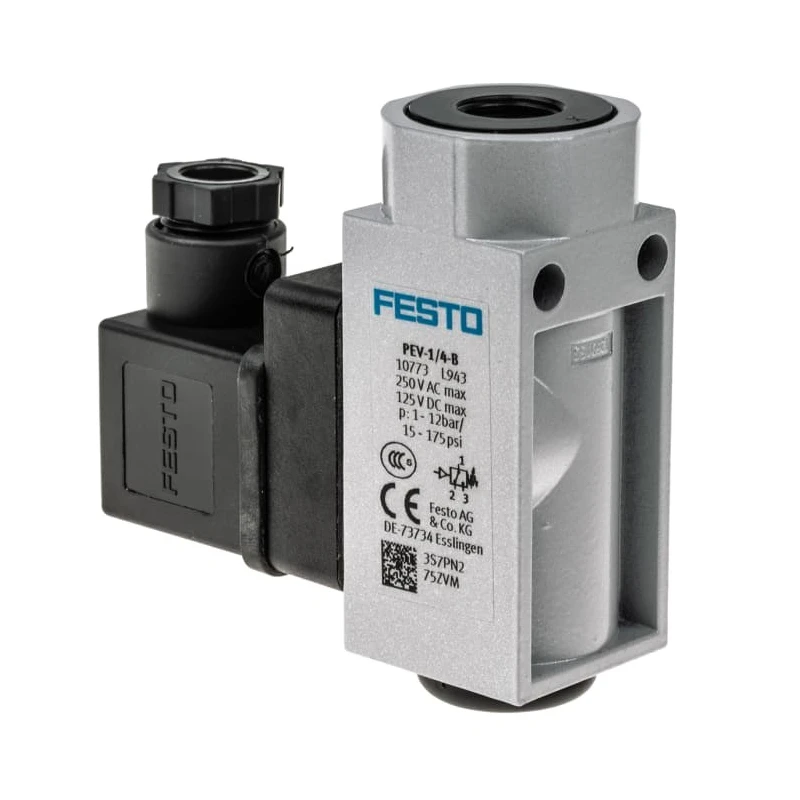

Festo Pneumatic Pressure Switch, 1/4 in Port, 1 bar to 12 bar, 125 V, 5 A, IP65, Through Hole Mount, Model PEV-1/4-B

Category Pressure Switch Brand FESTO Condition New

Specifications

Country of Origin Hungary
Voltage 125V
Brand Festo
Maximum Operating Pressure 12 bar
Current 5A
Height 77.3mm
Model PEV-1/4-B
Depth 78mm
IP Rating IP65
Width 30mm
Mount Type Through Hole
Series PEV
Maximum Operating Temperature 80°C
Pressure Type Relative Pressure
Port Size 1/4 in
Minimum Operating Temperature -20°C
Standards/Approvals ISO, EN
Connection Thread Standard G
Minimum Operating Pressure 1bar
Port Gender Male
Suitable Medias Pneumatic
Festo Pressure Sensor, IP67, IP65 10 bar 30V dc 50 °CBrand Festo
Festo Pressure Switch 0 bar to 8 barBrand Festo

Key Features

  • Pressure switch with a 1/4 in G thread male port connection.
  • Operating current capacity is up to 5 A suitable for inductive and resistive loads.
  • Maximum switching frequency of 3 Hz enabling fast response.
  • Die-cast aluminium body providing corrosion resistance and durability.
  • Operating temperature range from -20°C to +80°C for industrial environments.
  • IP65 rated for protection against dust and low-pressure water jets.
  • Through-hole mounting ensures secure and reliable installation.
  • Compatible with pneumatic media and relative pressure type measurement.

Product Description

Festo PEV-1/4-B model pneumatic pressure switch offers precise and reliable pressure control in pneumatic systems with an adjustable operating pressure range from 1 bar to 12 bar and a voltage rating of 125 V. This device is engineered for demanding industrial applications including factory automation, chemical plants, food and beverage bottling systems, and medical facilities.

Designed with a robust die-cast aluminium housing that is corrosion-resistant, this pressure switch withstands harsh environmental conditions. Its IP65 rating confirms protection against ingress of dust and low-pressure water jets, making it suitable for use in challenging industrial and laboratory settings.

The switch supports both AC and DC inductive and resistive loads with output currents up to 5 A and provides a maximum switching frequency of 3 Hz for responsive pressure monitoring and control. A through-hole mounting mechanism with a 1/4 inch G thread male port ensures a secure mechanical and pneumatic connection.

Operating temperature tolerance ranges from -20°C to +80°C, accommodating extreme environments. The compact dimensions - height of 77.3 mm, width of 30 mm, and depth of 78 mm - make it adaptable for various installation layouts.

Pressure switch featuring relative pressure measurement for pneumatic media. Equipped with an LED indicator for easy status verification. Mount type: through hole for secure fitting. Conforms to ISO and EN standards ensuring quality and reliability.

This Festo PEV-1/4-B Pressure Switch is widely utilized in industrial automation and pneumatic system control, contributing to efficient and safe operation. Its durability, electrical versatility, and protective features suit it well for industries requiring precise pressure management.

Explore more pneumatic and hydraulic control solutions by Festo on EnvMart for comprehensive industrial automation needs.

Festo Pneumatic Pressure Switch, 1/4 in Port, 1 bar to 12 bar, 125 V, 5 A, IP65, Through Hole Mount, Model PEV-1/4-B
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The operating pressure range of this pressure switch is adjustable from 1 bar to 12 bar.

The dimensions of the Festo PEV-1/4-B are 77.3 mm in height, 30 mm in width, and 78 mm in depth.

This model has an IP65 rating, indicating protection against dust and low-pressure water jets.

It can handle both AC and DC inductive and resistive loads with an output current capacity of up to 5 A.

This pressure switch features a through-hole mounting mechanism for secure installation.

The operating temperature range is from -20°C to +80°C, making it suitable for various industrial environments.

The maximum switching frequency is 3 Hz, allowing for responsive pressure monitoring and control.

It supports relative pressure measurement, specifically for pneumatic media.

The port has a G thread standard, with a size of 1/4 inch and a male port gender.

This pressure switch conforms to ISO and EN standards, ensuring quality and reliability.

The country of origin for this pressure switch is Hungary.

It is suitable for demanding industrial applications, including factory automation, chemical plants, food and beverage bottling systems, and medical facilities.
