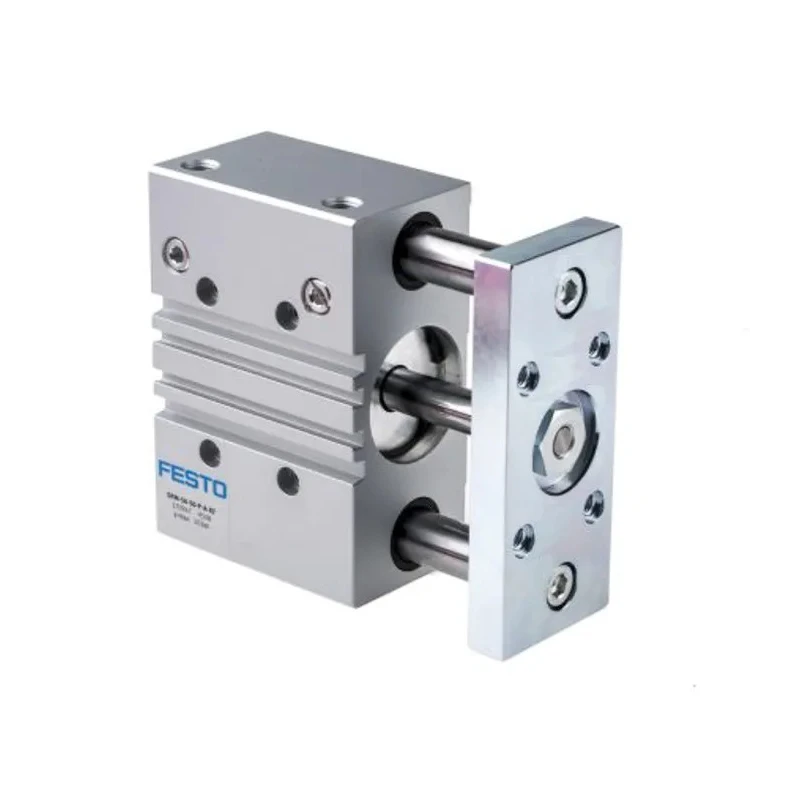

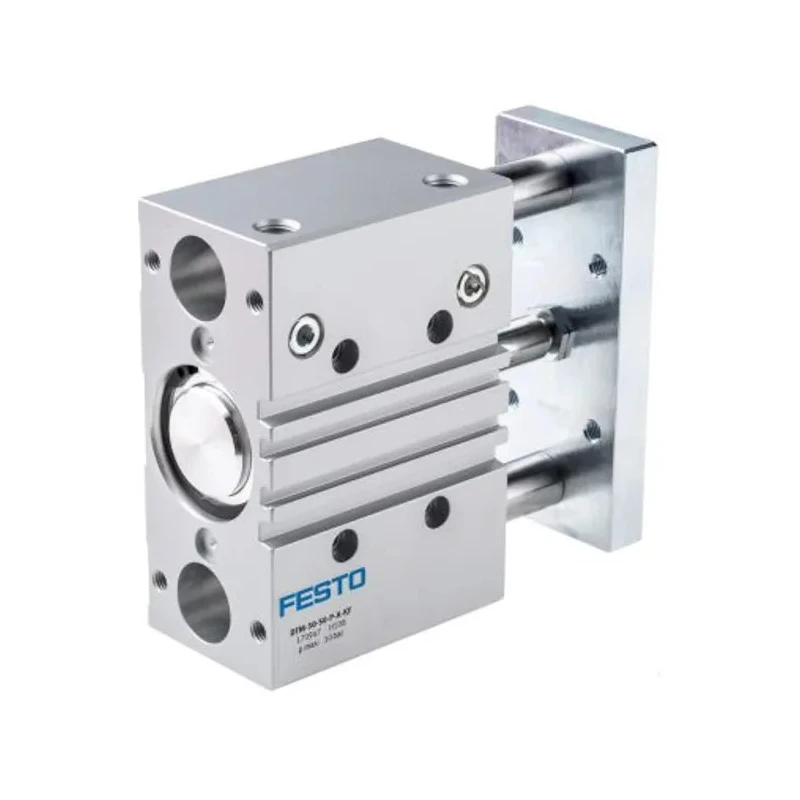

Festo Pneumatic Guided Cylinder DFM Series 50mm Bore, 100 mm Stroke, Double Acting, Through Hole Mount DFM-50-100-P-A-KF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Wrought Aluminium Alloy |
| Maximum Operating Pressure | 10 bar |
| Height | 64mm |
| Length | 214mm |
| Model | DFM-50-100-P-A-KF |
| Gross Weight | 4.9kg |
| Width | 148mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Stroke Length | 100mm |
| Bore Diameter | 50mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | RoHS |
| Cushioning Type | Elastomer |
| Guide Type | Ball Bearing |
Key Features
- Double acting pneumatic cylinder designed for reliable torque load handling.
- Rigid aluminium alloy body ensures resistance to lateral and torque forces.
- Through hole mount type with flexible supply ports on top and side for versatile mounting.
- Ball bearing guide type with recirculating bearings for maintenance-free operation.
- Elastomer cushioning plates reduce noise and extend service life.
- Operates at a maximum pressure of 10 bar with temperature range from -5° to 60°C.
- Compact design with 64mm height, 148mm width, and 214mm length dimensions.
- Integrated slots allow for proximity sensor installation to measure piston linear motion.
Product Description
Festo DFM-50-100-P-A-KF pneumatic guided cylinder is a double acting actuator with a 50mm bore and 100 mm stroke length, manufactured in Germany. This pneumatic guided cylinder combines drive and guide functions in a single robust aluminium alloy housing, optimized for industrial applications requiring precise handling of torque and lateral forces.
The DFM series cylinders feature recirculating ball bearings on guide rods, contributing to maintenance-free, high load capacity suitable for clamping, stopping, material handling, and lifting tasks. The unit is designed to resist external torques and lateral forces while operating within a temperature range of -5°C to 60°C and a maximum pressure of 10 bar.
Mounting options are flexible with through hole mount design, and supply ports positioned on both top and side, accommodating diverse assembly requirements. Elastomer cushioning plates reduce operational noise and extend the service life of the cylinder.
Double acting pneumatic guided cylinder optimized for torque load applications. Constructed with high resistance wrought aluminium alloy body and rigid design. Recirculating ball bearing guide rods for smooth, precise motion control.
Flexible air supply ports allow customizable positioning during installation. Compact design leads to ease of integration in automation and manufacturing setups. Extended durability with flexible cushioning to dampen vibrations and noise.
Allows integration of proximity sensors for piston position feedback via special slots. Fits various industrial use cases such as clamping, lifting, and stopping loads up to 150 kg.
Festo cylinders are widely used in industrial, manufacturing, automation, and material handling sectors. This model ensures reliability, performance stability, and longevity in demanding environments. It is RoHS compliant and originates from Germany, reflecting quality manufacturing standards.
Explore more Pneumatic Guided Cylinders and related Festo products in EnvMart’s Hydraulics & Pneumatics category for industrial tools and equipment.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure for this model is 10 bar.
This pneumatic guided cylinder has a stroke length of 100 mm.
The dimensions of this model are 64 mm in height, 148 mm in width, and 214 mm in length.
It features a through hole mount type for flexible installation options.
The bore diameter of this model is 50 mm.
The body is made of wrought aluminium alloy, providing strength and resistance to lateral forces.
It operates within a temperature range of -5°C to 60°C.
It uses elastomer cushioning plates to reduce noise and extend service life.
The gross weight of this cylinder is 4.9 kg.
It is suitable for applications such as clamping, lifting, and stopping loads up to 150 kg.
Yes, it has integrated slots for proximity sensor installation to measure piston linear motion.
This model is RoHS compliant, reflecting adherence to environmental safety standards.
