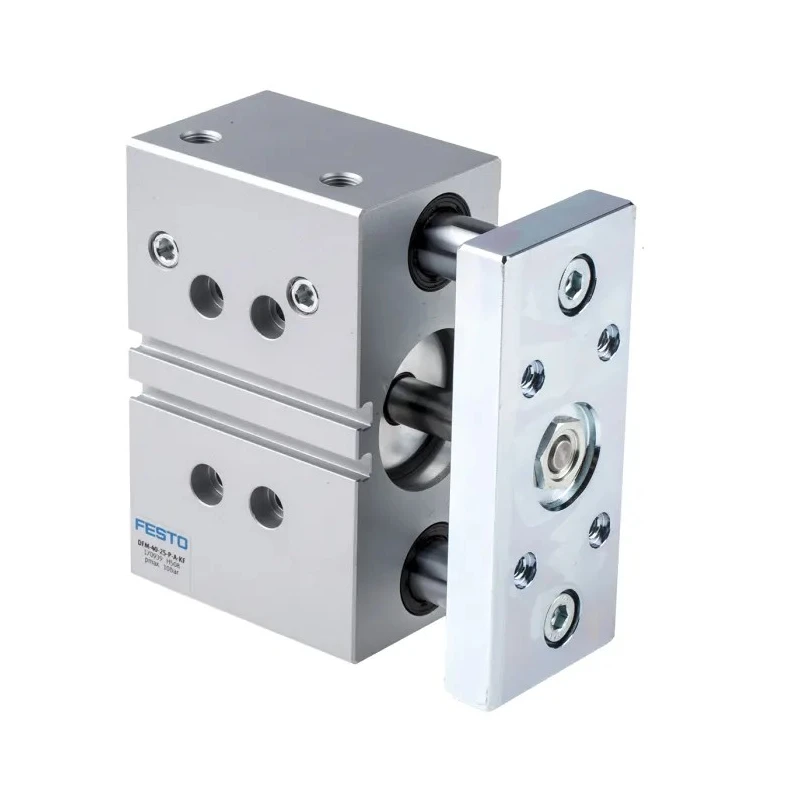

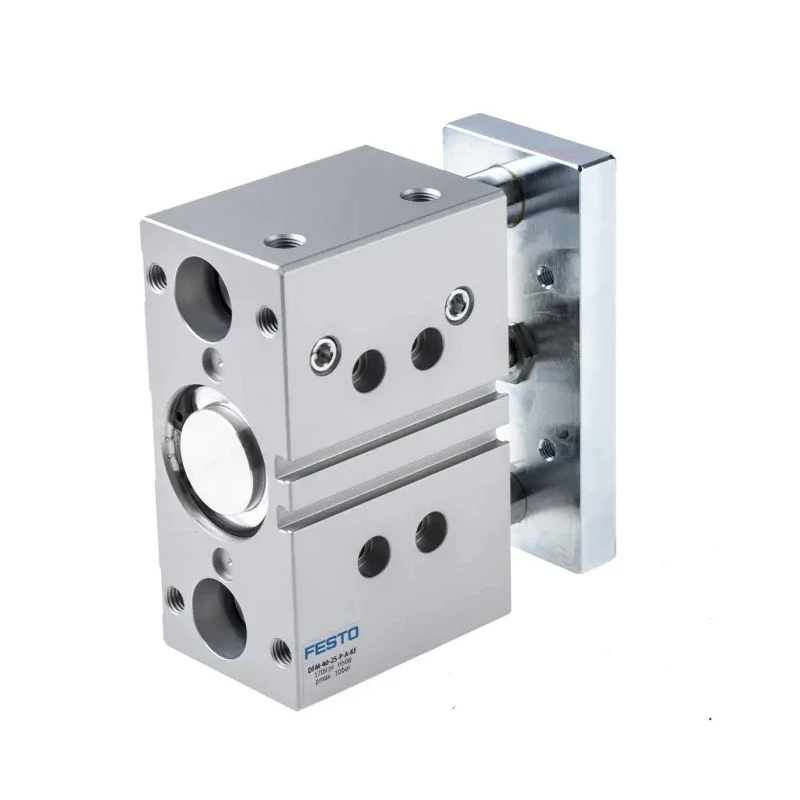

Festo Pneumatic Guided Cylinder DFM Series 40mm Bore 25mm Stroke Double Acting Through Hole Mount DFM-40-25-P-A-KF

Festo DFM-40-25-P-A-KF Pneumatic Guided Cylinder is part of the DFM series, featuring a 40mm bore diameter and 25mm stroke length. This double acting pneumatic cylinder integrates drive and guide units within a single compact housing designed for high load pneumatic applications.

It employs recirculating ball bearings that support torque loads making it ideal for industrial use cases such as clamping, stopping, material handling, and lifting. The construction incorporates polyurethane, tempered steel, wrought aluminium alloy, high alloy stainless steel, and nitrile rubber (NBR) ensuring durability and resistance to lateral forces and torque.

The cylinder is maintenance-free with elastomer cushioning plates to minimize noise during operation and enhance durability. Its flexible air supply ports on both the top and side allow multiple mounting options to suit diverse industrial configurations. Operating temperatures range from -5°C to 60°C, accommodating various environments.

This guided actuator includes integrated slots to incorporate proximity sensors for precise piston position feedback. With a robust design and a gross weight of 2 kg, it provides reliable, sturdy performance for industrial pneumatic automation tasks.

Applications encompass clamping components for processing, lifting and transporting loads dynamically, and stopping loads up to 150 kg safely and efficiently. The compact, rigid aluminum construction, combined with high resistance to torque and lateral forces, ensures consistent and efficient operation in manufacturing, automation, material handling, and laboratory environments.

Double acting guided pneumatic cylinder with integrated drive and guide unit. Recirculating ball bearings designed for torque load resistance and smooth motion. Flexible mounting with air supply ports on top and side of the cylinder body.

Maintenance free construction using robust aluminum and high-grade steel materials. Elastomer cushioning for noise reduction and increased service life. Integrated slots for sensor mounting to measure piston linear motion.

Complies with industry standards RoHS, ISO 8573-1:2010, ISO 228-1, and ISO 1179-1.

Suitable for diverse industrial applications including manufacturing automation, material handling, construction machinery, and other pneumatic powered systems. Festo's DFM series guided cylinders combine precision engineering with reliable performance to support efficient industrial processes.
