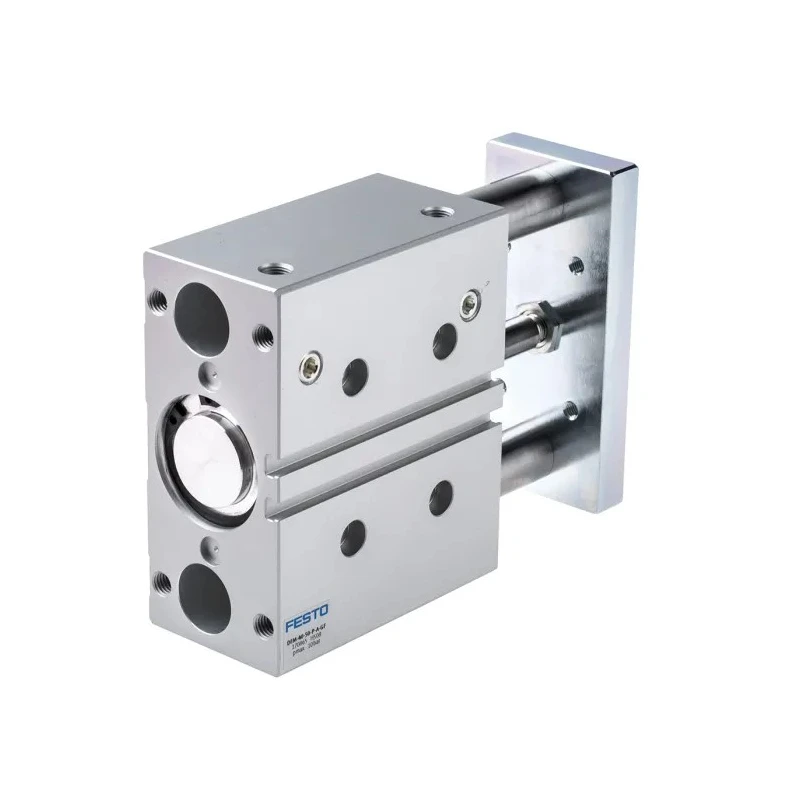

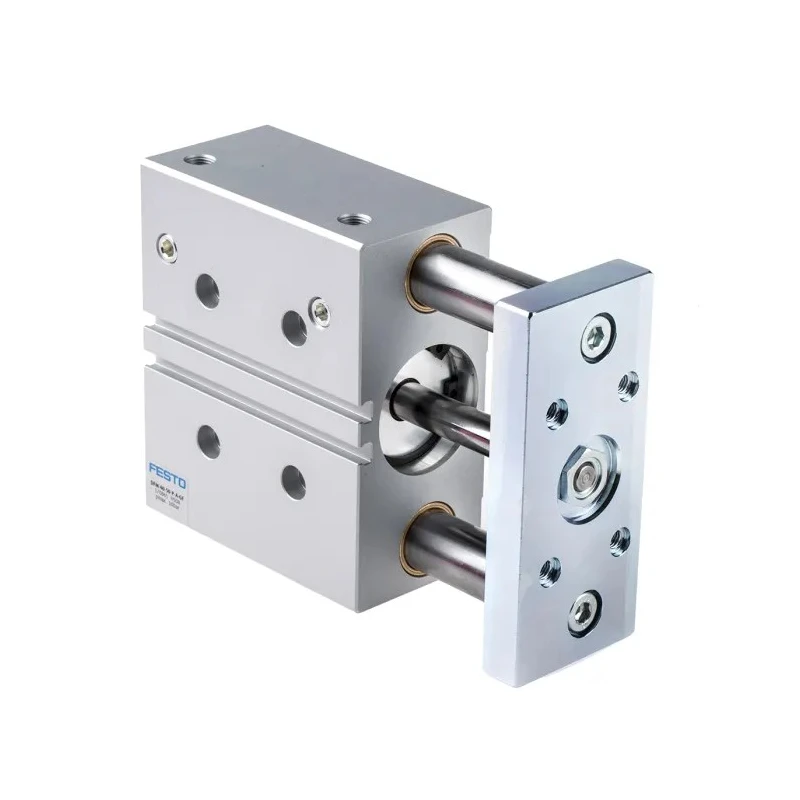

Festo Pneumatic Guided Cylinder DFM Series 40mm Bore 50mm Stroke Double Acting Through Hole Mount DFM-40-50-P-A-GF

Free Delivery in India | Lowest Global Shipping Charges

Festo Pneumatic Guided Cylinder DFM Series 40mm Bore 50mm Stroke Double Acting Through Hole Mount DFM-40-50-P-A-GF

Name: Festo Pneumatic Guided Cylinder DFM Series 40mm Bore 50mm Stroke Double Acting Through Hole Mount DFM-40-50-P-A-GF
Brand: FESTO
SKU: 186641
Price: 520.87 USD
Availability: InStock



Category Pneumatic Guided Cylinder Brand FESTO Condition New

Specifications

Country of Origin	Germany
Brand	Festo
Body Material	Wrought Aluminium Alloy, Anodised/Tempered Steel/High Alloy Stainless Steel/Nitrile Rubber/Polyurethane
Maximum Operating Pressure	10 bar
Height	54mm
Length	131mm
Model	DFM-40-50-P-A-GF
Gross Weight	2.5kg
Width	120mm
Mount Type	Through Hole
Series	DFM
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-20°C
Stroke Length	50mm
Bore Diameter	40mm
Rod Type	Single
Action Type	Double Acting
Standards/Approvals	RoHS Compliant
Better World Claim	Repairable by the End User
Cushioning Type	Elastomer
Guide Type	Ball Bearing
Piston Rod Thread Standard	ISO 1179-1 and ISO 228-1
Piston Rod Thread Size	1/8 in G

Key Features

Features a double acting action type enabling forward and backward motion.
Through hole mount type ensures secure and versatile installation.
Constructed with durable wrought aluminium alloy anodised housing and high alloy steel components.
Operates efficiently up to 10 bar maximum pressure with elastomer cushioning plates reducing impact.
Wide temperature range from -20°C to 80°C for challenging environments.
Equipped with ball bearing guide type and single rod for stability and precision.
Compatible with proximity sensors for precise operational control.
Low air leakage with durable NBR seals extending service life.

Product Description

Festo DFM-40-50-P-A-GF Pneumatic Guided Cylinder is a robust industrial pneumatic cylinder with a 40mm bore diameter and a 50mm stroke length. Designed for double acting operation, this cylinder features a through hole mount for secure attachment in manufacturing, material handling, and clamping applications.

Its body is made from a combination of wrought aluminium alloy, anodised and tempered steel, high alloy stainless steel, nitrile rubber, and polyurethane, offering excellent durability, corrosion resistance, and mechanical strength.

This cylinder can operate reliably at pressures up to 10 bar and within a temperature range of -20°C to 80°C, making it suitable for various industrial environments including food and beverage production.

The integrated ball bearing guide and single piston rod type with ISO standardized threads ensure stable, precise movement and compatibility with relevant accessories such as proximity sensors.

Elastomer cushioning plates at both ends protect the cylinder from piston impact, enhancing operational life. The component’s NBR seals effectively prevent air leakage, improving performance efficiency.

Weighting 2.5 kg and manufactured in Germany, this product is RoHS compliant and categorized as a Better World product, emphasizing sustainability and repairability by the end user, reducing waste and operational costs.

Double acting operation for reliable and flexible motion control. Through hole mounting supports versatile industrial installation. Durable materials ensure resistance to corrosion and mechanical wear. Wide operational temperature and pressure range.

High precision ball bearing guides enable smooth piston movement. Easy maintenance with user-repairable features. Complies with RoHS standards promoting environmental safety. Suitable for applications in material handling, clamping devices, and food production industries.
